Platform Section 5 – Procedures

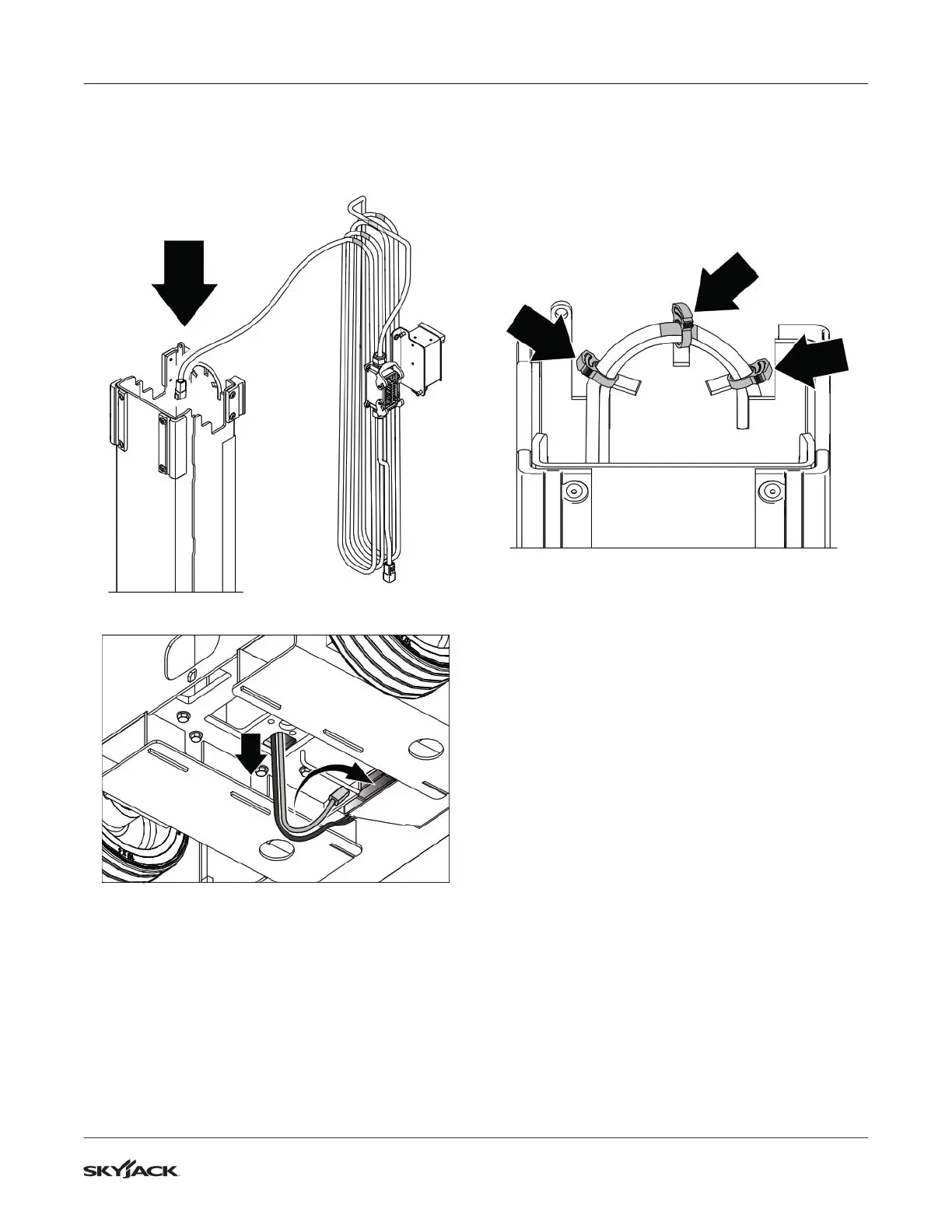

Install the mast cable
1. Insert the end of the mast cable without the
housing down mast 4 (SJ12 E) or 5 (SJ16/20 E)
and out through the base of the mast.
2. The mast cable has tape markers at specic
intervals so you know where to clamp it on the
cable carriers.
3. Use three of the cable clamps removed earlier to
secure the mast cable to the cable carrier in three
places. The marked part of the cable is clamped
at the center top point of the cable carrier.
4. Lower the rest of the mast cable down mast 4/5
so you can install the next mast section.
