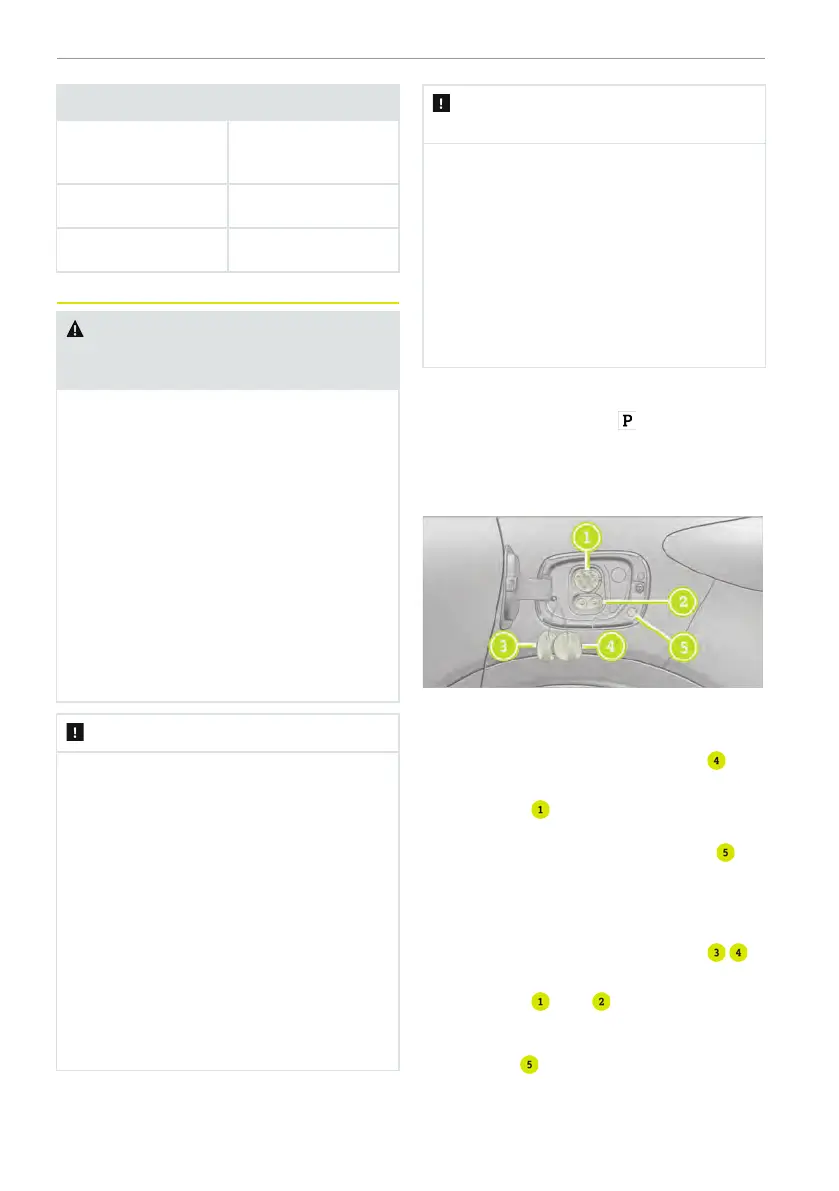

Status Indicator color
Charging
completed
Green
Malfunctioning Red
Discharging Flashing in blue
Start charging
WARNING Risk of injury due to
charging with damaged charging
equipment
If charging with damaged charging ca-
ble, vehicle charging port or power sup-
ply socket, you could suffer an electric
shock.
► Only use an undamaged charging
cable.
► Avoid mechanical damage that may
be caused by squashing, shearing or
driving over the cable.
► Have a damaged vehicle charging
gun replaced at a smart Authorized
Service Partner as soon as possible.
► Never connect the charging cable to
a damaged vehicle charging port.
NOTE Charging cable heating up
Charging cables may heat up within a
permissible limit during the charging
process.
Observe the permissible limits, so as to
make sure:
● that the power equipment and the
charging cable are not damaged.
● Follow the operating instructions of
charging cable and control device on
the charging cable.
► In case of overheating of the charg-
ing cable or the charging gun cable
plug, have the equipment of the
main power supply checked.
NOTE Damaged or contaminated
charging port
► Keep the charging port cover and
socket cap closed when not in use.
The charging port can be protected
against contamination and damage.
► Check and confirm the charging
socket cap is closed properly before
closing the charging port cover. Oth-
erwise, the charging port cover may
be damaged and unable to be
opened again.
Charging requirement:
● The vehicle is in park
.
● The charging port cover is unlocked
● The drive system is not started.
● The charging cable is not stretched.
Charging with alternating current:
1. Press and open the charging port cover.
2. Remove the charging socket cap
.
3. Connect the charging gun to the charg-
ing socket
, turn on the charging pile
after the charging gun is locked, and the
charging starts with the indicator
flashing in green.
Charging with direct current:
1. Press and open the charging port cover.
2. Remove the charging socket cap
.
3. Connect the charging gun to the charg-
ing socket
and , turn on the
charging pile after the charging gun is
locked, and the charging starts with the
indicator
flashing in green.
When the charging starts, the driver infor-
mation display indicates the battery level
92 Vehicle charging
