4.16.5.12 Timer Tab (Timer Object)
This tab only exists in tiles that are of Timer type.
The Timer properties tab is used to setup a timer to run based on the time of day or controlled
by GPIs. The timer can be configured to count up or down depending on the requirement.
When controlling the timer with GPIs the timer can also be paused and then resumed if
required. The individual settings are described in Table 45. Examples of typical timer
configurations are listed after the table.

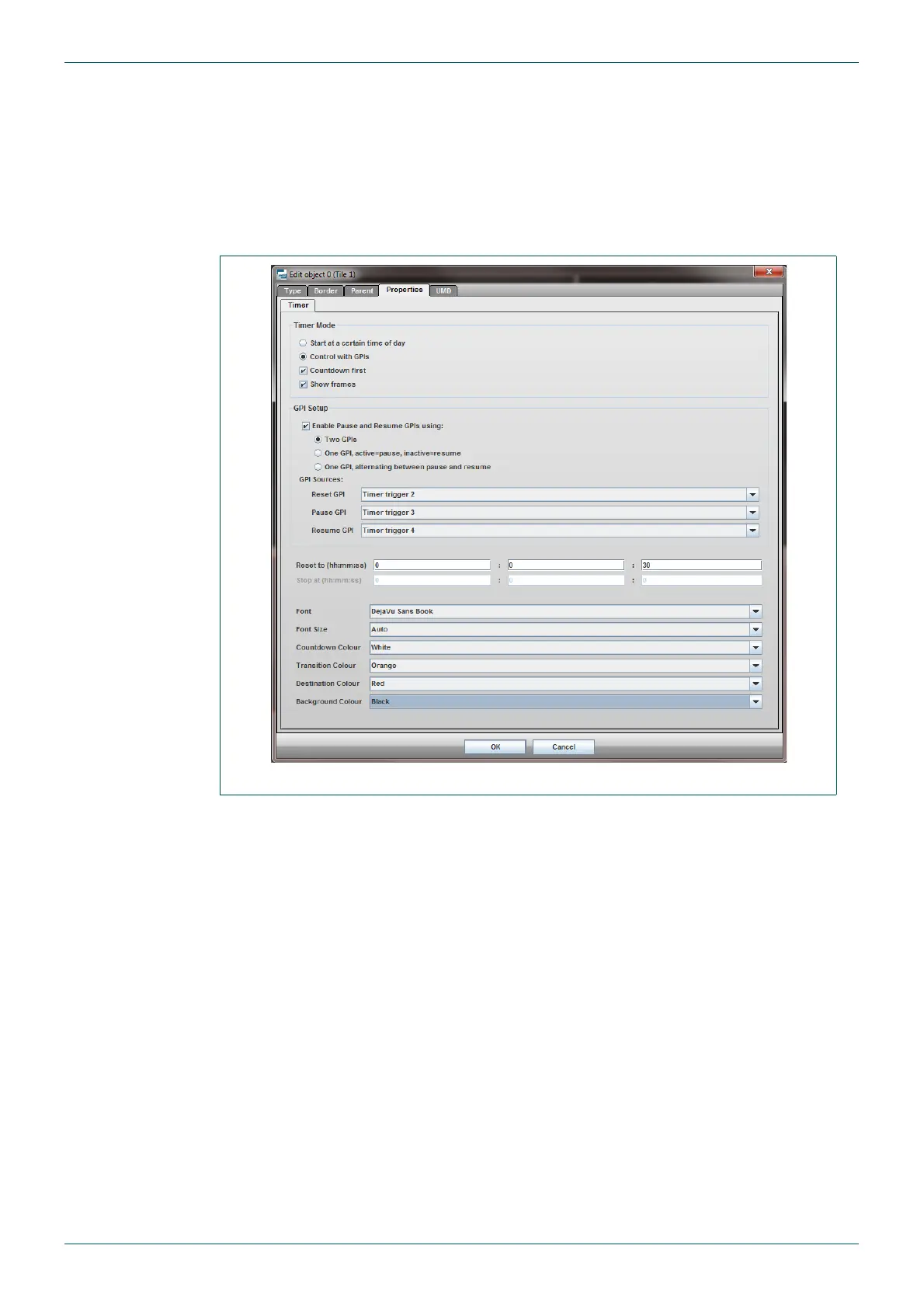

Fig 62. Edit Object - Properties - Timer Tab.
