Double Bevel
Single Fillet Weld
Double Fillet Welds

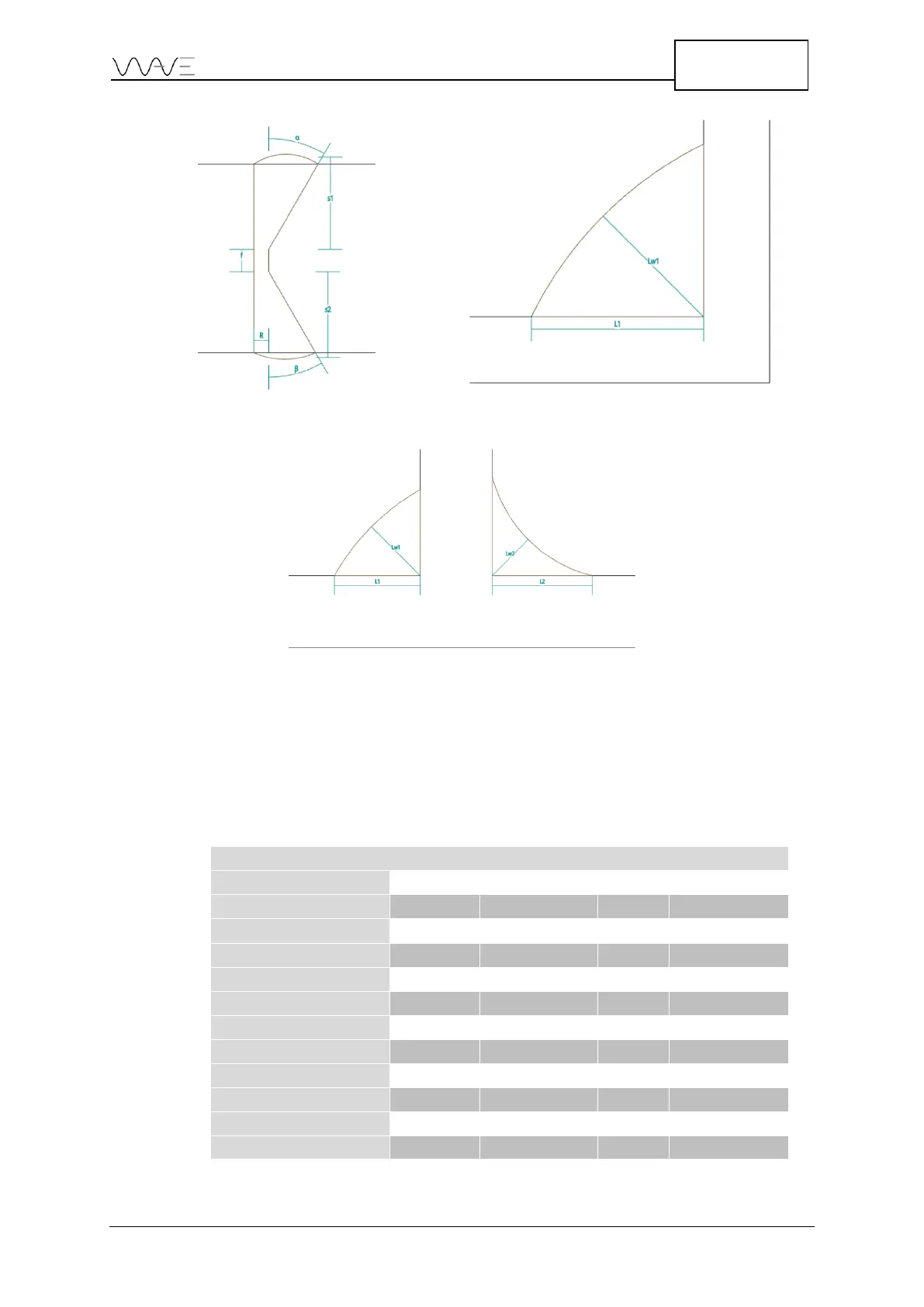

Figure 38 – Welds available with Wave
The availability of these welds depends on the type of part chosen beforehand. Table 18
illustrates these possibilities. A checkbox indicates that the weld is visible for a given part.
Table 18 - Part types vs welds
Flat part
Curved part
T-joint
Corner joint
None
X
X
X
X
Square Groove
X
X
X
X
Single V
X
X
Double V
X
X
Single U
X
Double U
X
Single J
X
Double J
X
Bevel Groove
X
X
X
Double Bevel
X
X
Single Fillet Weld
X
X
Double Fillet Welds
X
