86 Wave User Manual
Version 4
13.4.6 Probe and Wedge
As indicated by the name, this section presents the parameters related to the probe and
wedge. By default, Couplant is the only field left empty; it must be filled in manually. This
means that all other parameters are intrinsically linked to the Source. Nevertheless, all
of them can be modified by a visual keyboard or a numerical keypad.

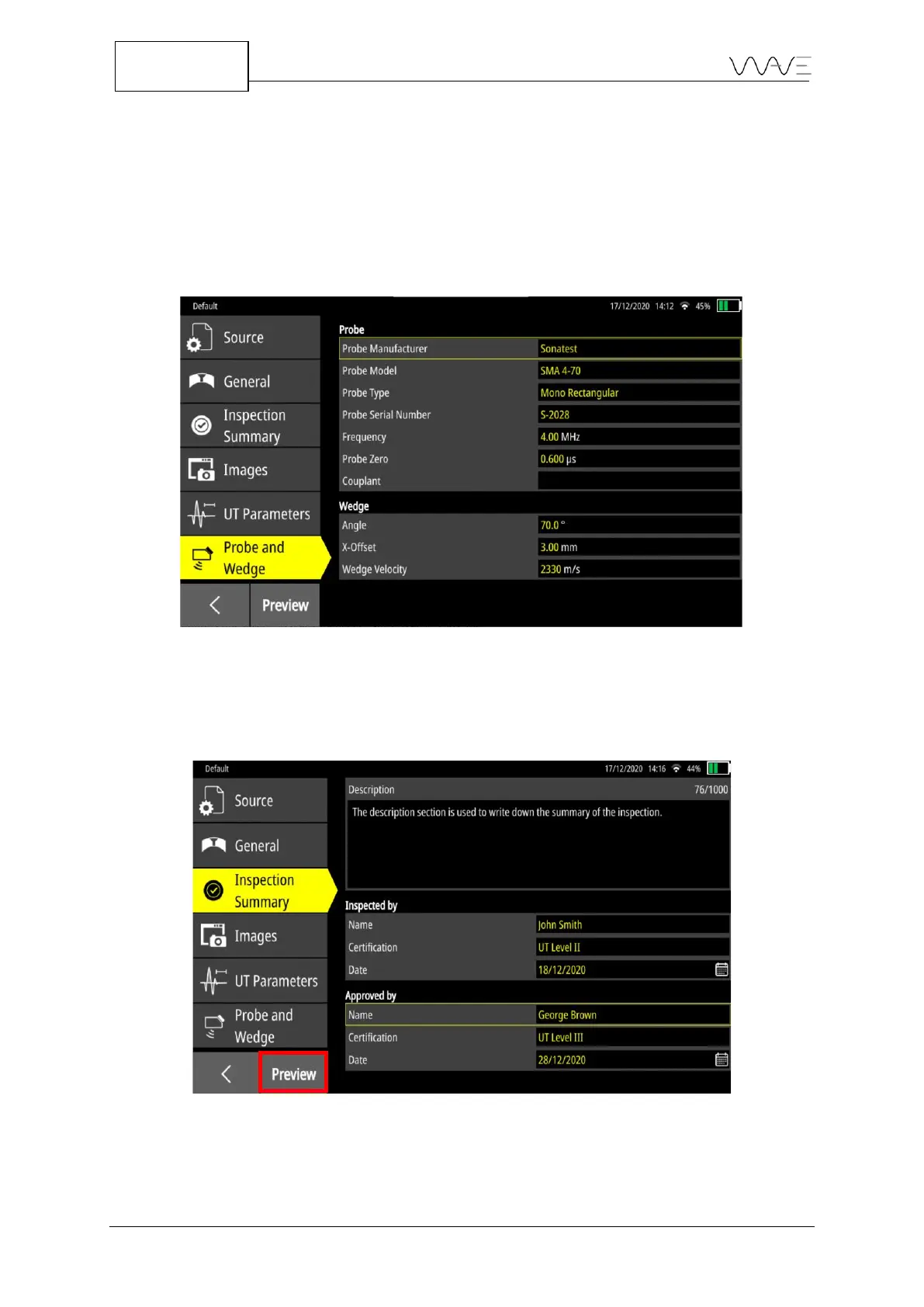

Figure 71 – Parameters related to the Probe and Wedge tab
13.5 Report Preview
At any time, you can visualise a preview of the report by pressing the Preview button.
Figure 72 The Preview button is available at any time in order to visualise the report
