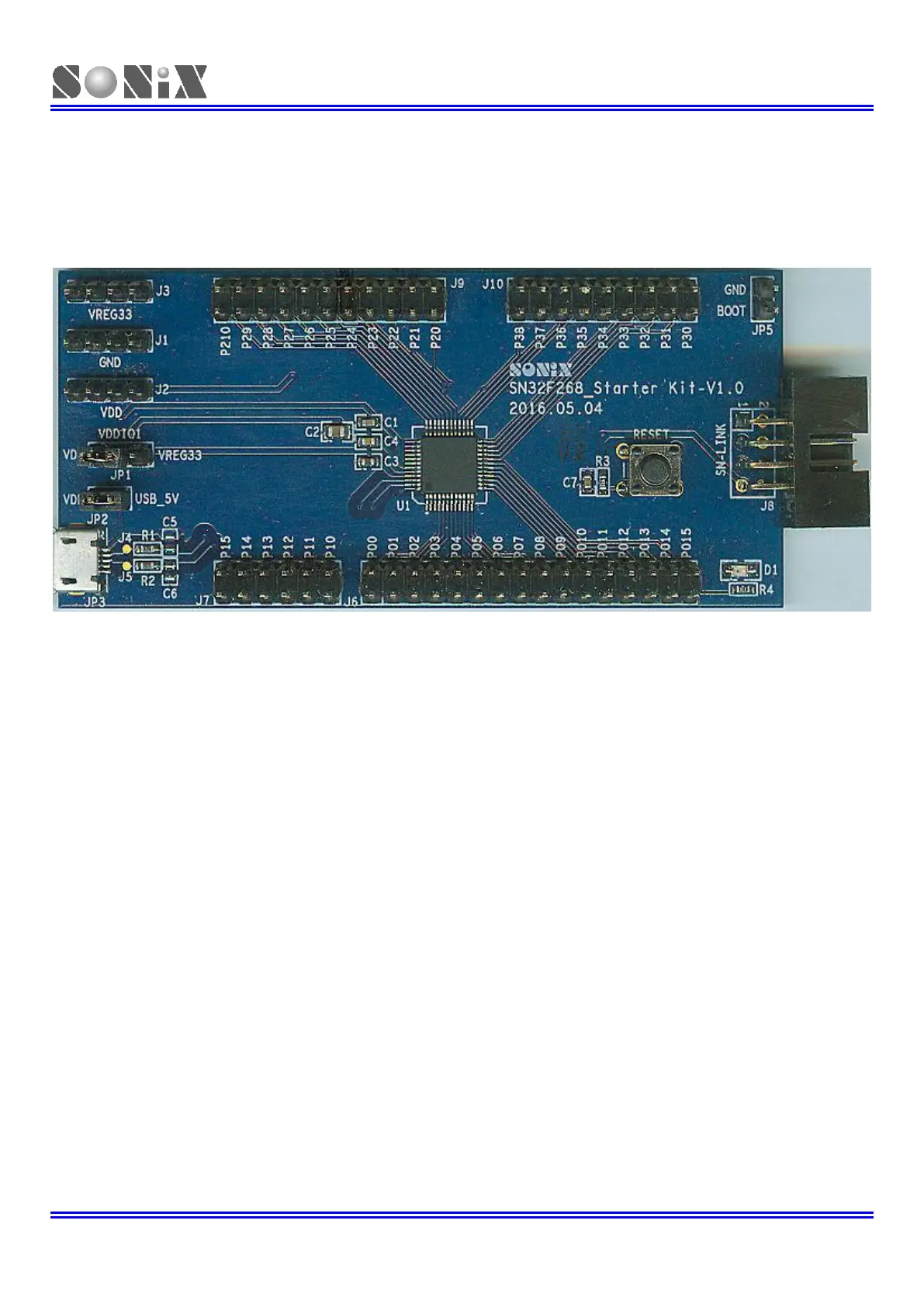

13.2 SN32F268 STARTER-KIT
SONiX 32-bit MCU Starter-kit is an easy-development platform. It includes real chip and I/O connectors to input signal
or drive extra device of user’s application. It is a simple platform to develop application as target board not ready. The
starter-kit can be replaced by target board because of integrated SWD debugger circuitry.
 JP3 : Micro USB connector.
 JP2 : USB Power connector.
 JP1 : VDDIO1 power connector: Choose the source of VDDIO1 (P1.0~P1.5) (5.0V/3.3V on board).
 J1 : GND connector.
 J2 : VDD connector.
 J3 : VREG33 output connector.
 U1 : SN32F268BF real chip.
 RESET button : External reset trigger source.
 D1 : For test LED.
 J8 : SN-LINK connector
 JP5 : Short to force MCU stay in Boot loader.
