 Monitor mode allows observing all I2C-bus traffic, regardless of slave address.
 I2C-bus can be used for test and diagnostic purposes.
 Generation and detection of 7-bit/10-bit addressing and General Call.
9.3 PIN DESCRIPTION
Pin Name
Type
Description
GPIO Configuration
SCLn
I/O
I2C Serial clock
Output with Open-drain
Input depends on GPIOn_CFG
SDAn
I/O
I2C Serial data
Output with Open-drain
Input depends on GPIOn_CFG

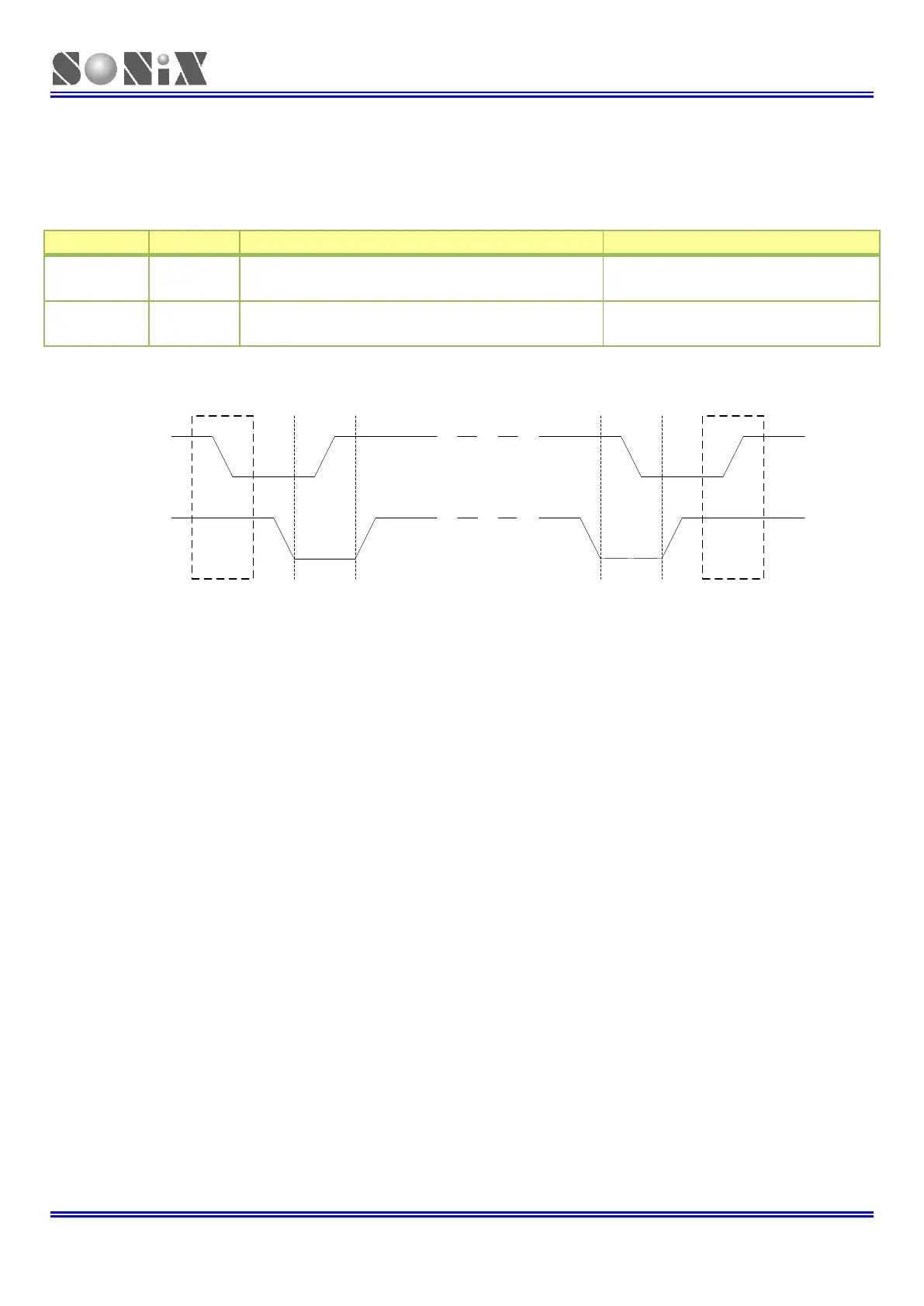

9.4 WAVE CHARACTERISTICS
SDA
S
START
Signal
P
STOP
Signal
Data
Change
Allowed
Data
Change
Allowed
