SONIX SN32F264 - Qfn 28 Pin

SN32F260 Series
32-Bit Cortex-M0 Micro-Controller
SONiX TECHNOLOGY CO., LTD Page 135 Version 1.5

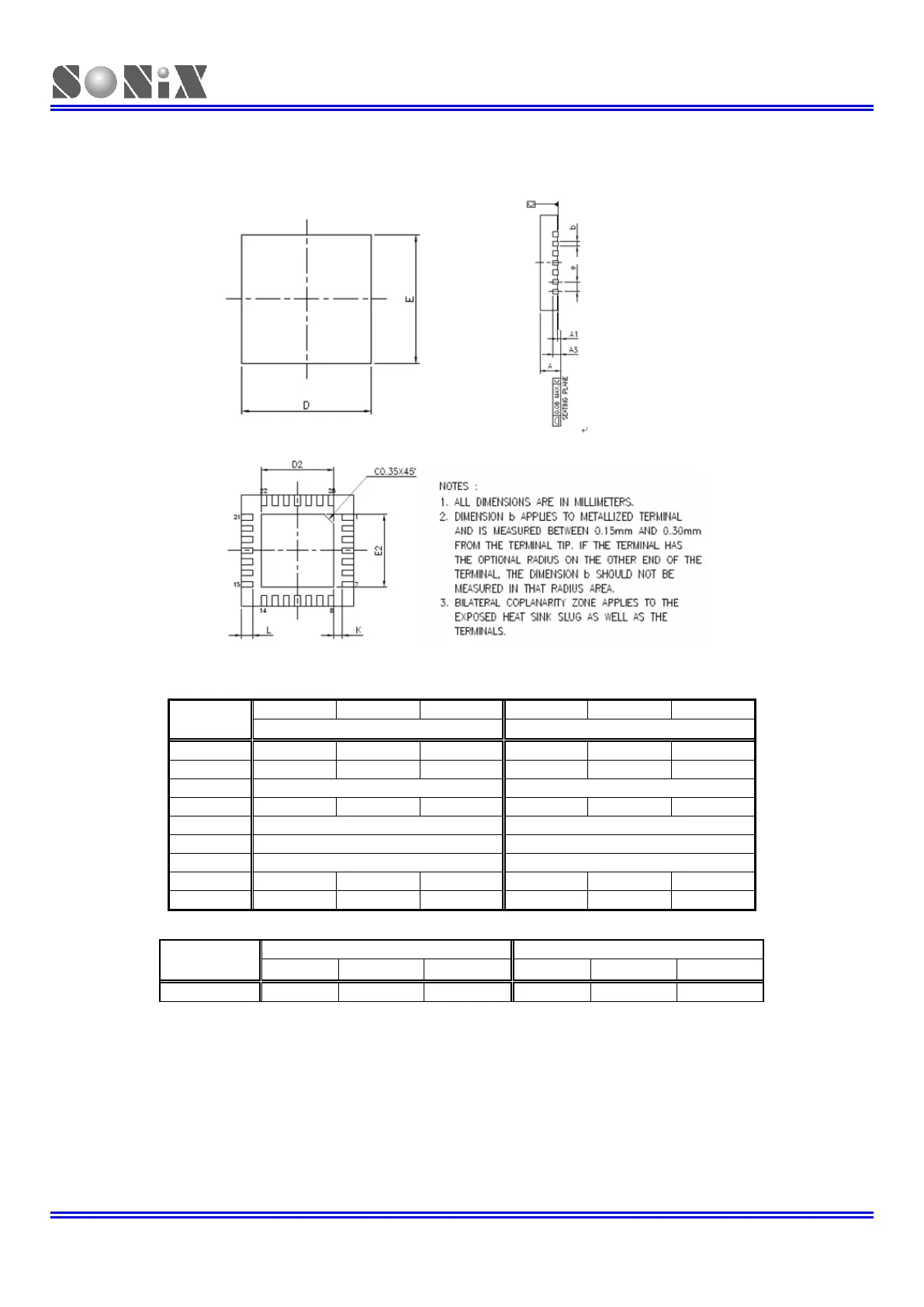

16.5 QFN 28 PIN
SYMBOLS
MIN
NOR
MAX
MIN
NOR
MAX
(inch)
(mm)
A
0.003
0.030
0.031
0.07
0.75
0.80
A1
0.000
0.001
0.002
0.00
0.02
0.05
A3
0.008 REF.
0.20 REF.
b
0.006
0.008
0.010
0.15
0.20
0.25
D
0.16 BSC
4.00 BSC
E
0.16 BSC
4.00 BSC
e
0.016 BSC
0.40 BSC
L
0.014
0.016
0.018
0.35
0.40
0.45
K
0.008
-
-
0.20
-
-
PAD SIZE
D2 (mm)
E2 (mm)
MIN
NOR
MAX
MIN
NOR
MAX
115x115 MIL
2.50
2.60
2.65
2.50
2.60
2.65
