• use SET to toggle the function of the trackball between resizing and moving the sample
box.
To adjust the cut off line,
• press UPDATE and use the trackball to shift the cut off line;
• press UPDATE ; use the trackball to change the position of the control point and the
shape of the cut off line.
• use SET to toggle the function of the trackball between moving the control point and
moving the cut off line.
12.3.2 Cine Review
CINE REVIEW
Use this function to review the image frames captured when the motor was running.
The previews of the 3D structure are displayed at the bottom of the screen; see
Figure 12.3.

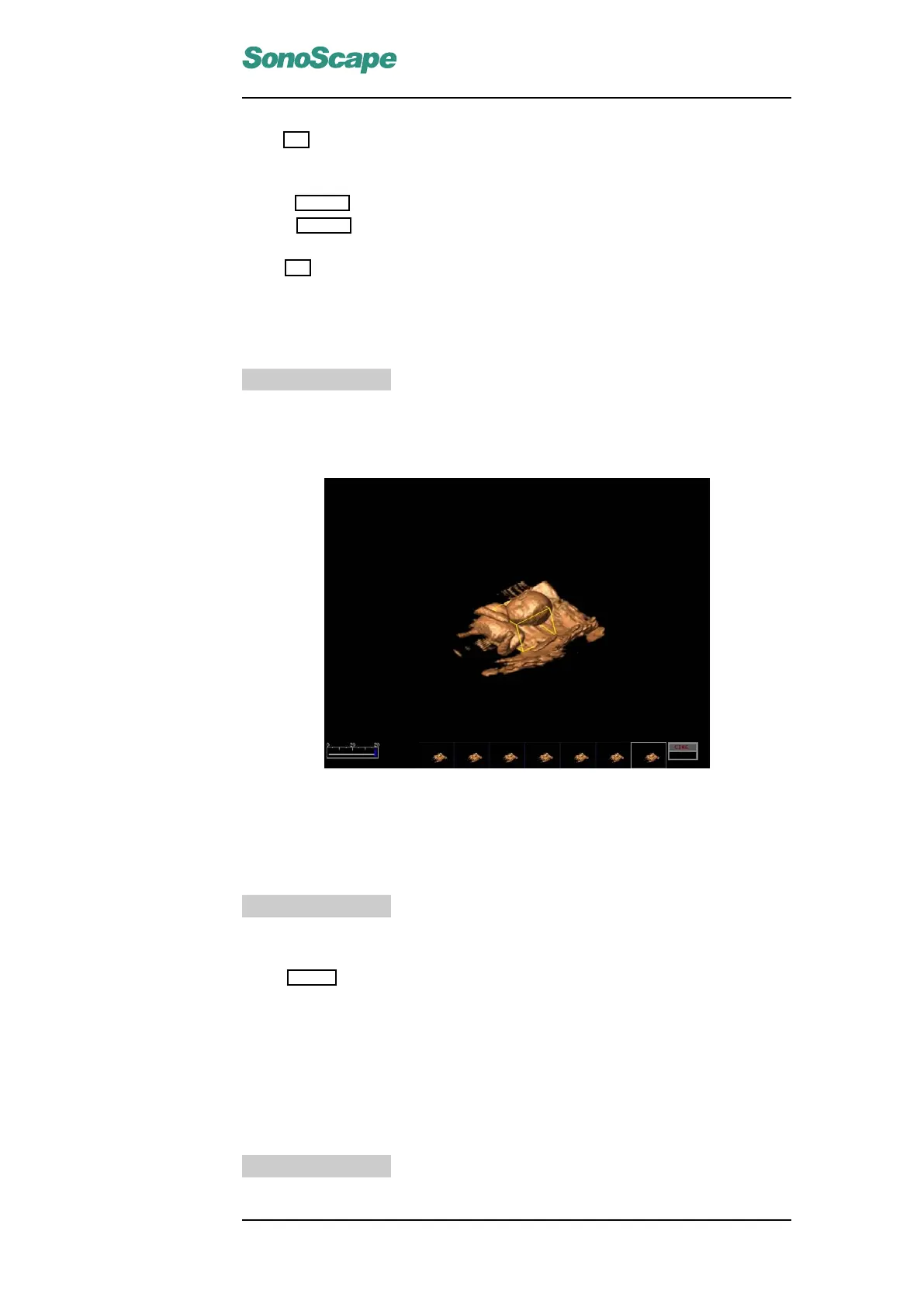

Figure 12.3: Cine review in 4D mode
12.3.3 Rescan
RESCAN
This function attempts to obtain the volume display with a higher resolution by
performing a rescan. By default it is set to off.
Press FREEZE when the motor is running, i.e., during the real time volume data
acquisition,
• when RESCAN is set to off, the motor will stop immediately;
• when RESCAN is set to on, the motor continues running for a while, attempting to
obtain the volume display with a higher resolution.
12.3.4 Image Quality
IMAGE QUALITY
This item sets the image quality for the volume display. It can be set to Low, Med,
