Sonoscape SSI-6000

SSI-6000/SSI-5800/SSI-5500/SSI-5500BW
Digital Color Doppler Ultrasound System
6.1 Starting CDI Mode
Press the CDI key to activate the CDI mode. The CDI sample box ap-
pears in the active 2D image.
Press the B key to deactivate the CDI mode, the system enters the B mode.
0
5
15
10
FPS 20
D/G 2/1
GN 9
I/P 3/30
PWR 80
FRQ 4.3
D 15.4cm
PRF 1.0
WF 85
GN 22
C/P 1/50
PWR 70
FRQ 2.2
C344
SonoScape
New Hosp.
Mar-23-2010 16:08:16
MI 0.2 TIS 0.7
9
cm/s
-9
cm/s

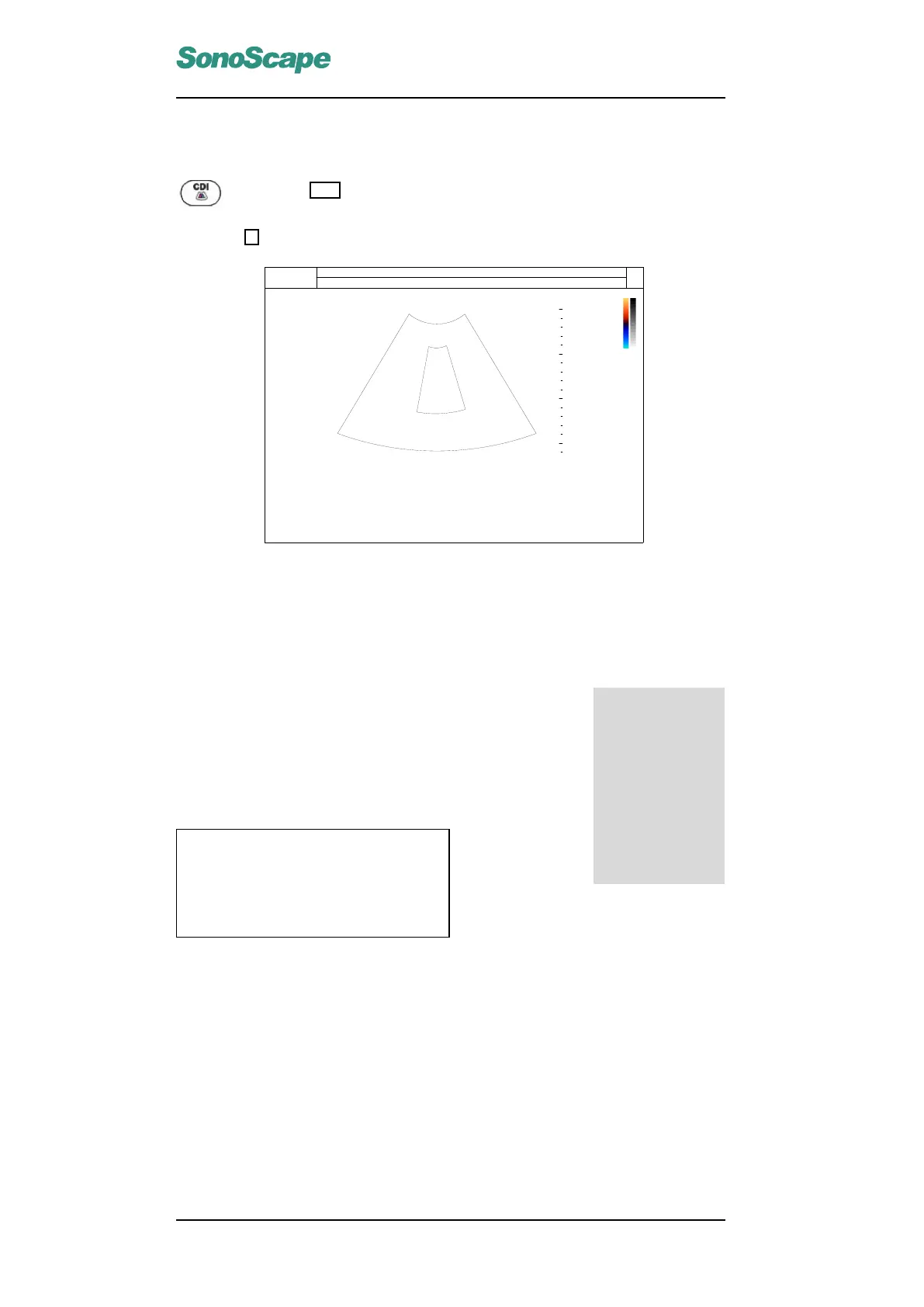

Figure 6.1: CDI mode
6.2 Color Image Information
PRF 3.0
WF 185
GN 20
PWR 70
FRQ 5.1
ECG →
PERSIST
C MAP
POWER %
BASELINE
B REJECT
FREQUENCY
LT↔RT
LINE DENSITY
50
1
70
0
255
5.1
↔
Low
FLOW INVERT Off
SEC.WIDTH
SEC.POS
↔
↔
C MAP 1
B REJECT 255
FLOW INVERT Off
LOOP SPEED ↔
START
|←
END
→|
FRAME BY FRAME
....
C/P 1/60
The color image information for the CDI mode ultrasound
is displayed at the Color Image Info area (refer to Figure
2.2 for the location).
The meaning for the items shown in the info area are ex-
plained in the table below.
PRF pulse repetition frequency
WF wall filter value
GN Doppler gain, D gain
C/P Color Map setting / persistence value
PWR acoustic output power (%)
FRQ transmitted frequency (MHz)
6.3 CDI Mode Operation
The CDI mode operation for the current ultrasound image is independent of the
display format (single, dual or quad). CDI mode parameters and settings can be
adjusted through the CDI mode menu or directly using the knobs / flip switches.
6.3.1 CDI Menu
P/N: 4701-0061-01B
6-2
