Sonoscape SSI-6000

SSI-6000/SSI-5800/SSI-5500/SSI-5500BW
Digital Color Doppler Ultrasound System
SonoScape
New Site 2P1
Apr-07-2010 16:08:16
FPS 47
D/G 3/1
GN 12
I/P 3/30
PWR 70
FRQ 4.7
D 16.5cm
MPR PEK
SR 4
GN 25
PWR 70
0
5
15
10
10
15
5
0

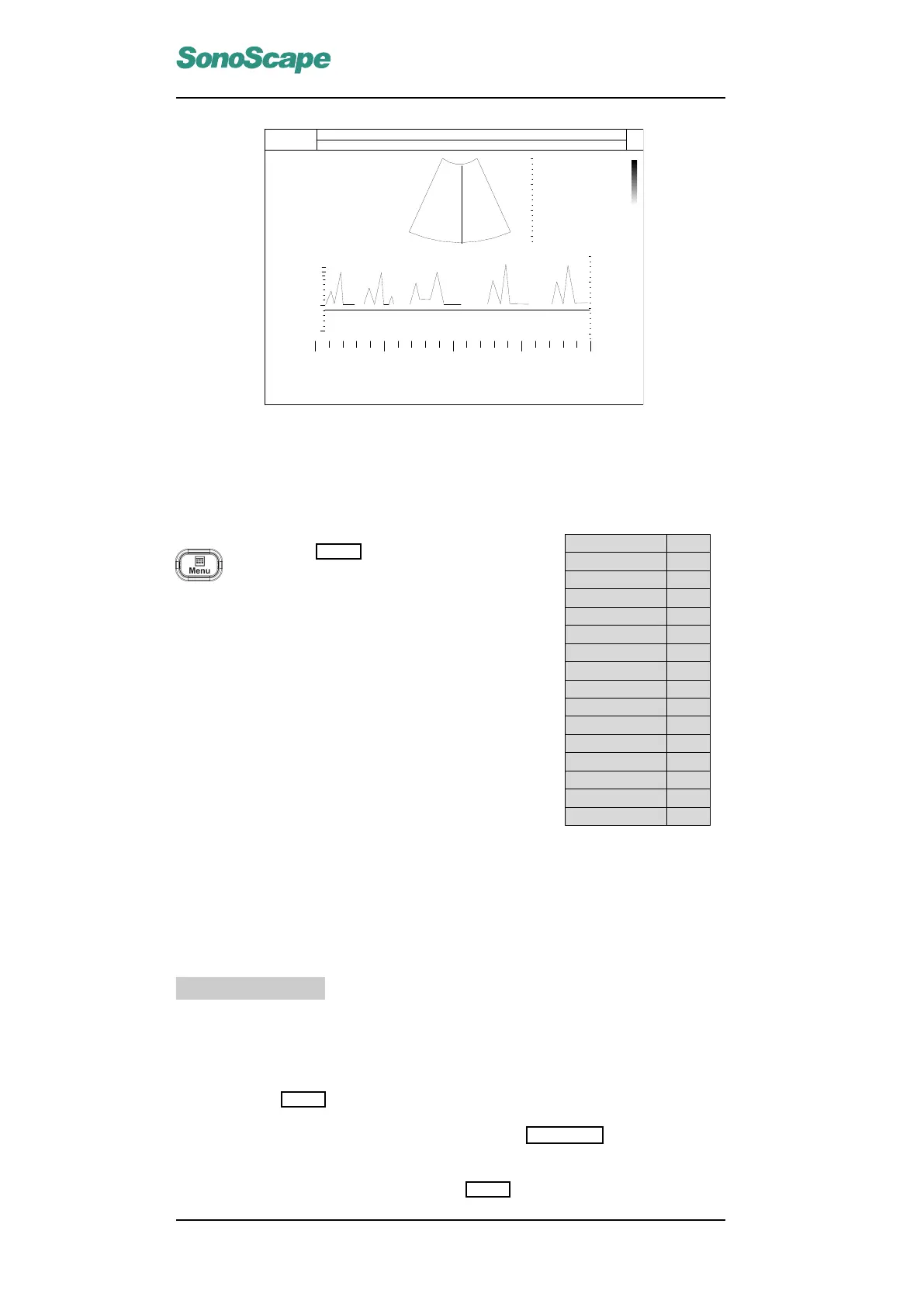

Figure 9.1: B+M duplex mode with the M trace updating
9.2 M Mode Operation, M Trace Inactive
FOCAL SPAN ↔
ECG →
DYN
FOCAL NUMBER 4
GSC
PERSIST
CHROMA
SEC.WIDTH
SEC.POS
LINE DENSITY
FREQUENCY
LT↔RT
POWER %
160
30
1
2
↔
↔
High
3.0 - 5
↔
80
STEER M Off
DISPLAY FORMAT V1/2
UP|DOWN Off
Figure 9.2: B menu in B+M
duplex mode
Before the M mode trace is active:
Press the MENU key to activate the
context menu (right).
The B menu in the B+M duplex mode is
shown on the right. Except for the item
STEER M, which is specific for the B+M
mode, all other items carries the same
meaning as those in the pure B mode
and can be adjusted following instruc-
tions in Chapter 5.
The CDI menu in the CDI+M mode is
the same as that in the CDI mode, refer
to Figure 6.2.
The TDI menu in the TDI+M mode is
the same as that in the TDI mode, refer
to Figure 8.1.
9.2.1 Adjust M Mode Cursor Line
Move the trackball to change the M mode cursor position.
STEER M
This function is only available in B+M duplex mode.
With this function,multiple M mode cursor lines can be inserted into the 2D image.
Follow instructions below to add additional M cursor lines.
• Press the MENU key to activate the context menu shown on page 9-2.
• Use the trackball to highlight STEER M, press the LEFT/RIGHT keys to change the
number of M mode cursor lines.
• Close the context menu by pressing the MENU key again.
P/N: 4701-0061-01B
9-2
