Sony MK7807V1 - Analog

Specifications
Inputs/outputs
Digital signal input:
VIDEO IN SDI connector (BNC type) (1),
NTSC composite or 525/625 component
serial digital signal with embedded audio
conforming to SMPTE259M-A/C (ITU-R
BT.601/BT.656), 270 Mb/s,143 Mb/s, 75 Ω,
unbalanced
Cable length:
200 m max. (With Belden 8281, Fujikura
5C2V or equivalent coaxial cable)
Input return loss:
15 dB or more (5 MHz to 270 MHz)
Analog signal input:
VIDEO IN ANALOG connector (BNC type)
(1),
1.0 Vp-p, 75 Ω, unbalanced
Reference input:
REF IN connector (BNC type) (1), 1125
tri-level sync signal conforming to
SMPTE274M or 525/625 Black Burst signal
Digital signal outputs:
DIGITAL OUT 1,2,3 connector (BNC type)
(3),
HD serial digital signal with embedded audio
conforming to SMPTE292M, BTA S-004B,
800 m Vp-p 610%, 75 Ω, unbalanced
Output return loss:
15 dB or more (5 MHz to 1.5 GHz)
Reference output:
Loop-through output connector (BNC type)
(1),
With 75 Ω termination switch
General
Power requirements
+5 V DC: 1.9A,.-5 V DC: 1.6 A
(Supplied from a PFV-HD300A Interface Unit)
Operating temperature
5 to 40 °C (41 to 104 °F)
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Operating humidity
10 to 90% (no condensation)
Dimensions
Board (H x W):
195 x 310 mm
(7 3/4 x 12 1/4 inches)
Connector panel (H x W):
195 x 75 mm
(1 1/2 x 3 inches)
Mass
Board:
Approx. 1.5 kg (3 lb 5 oz)
Connector panel:
Approx. 200 g (7 oz)
Service Parts: Maintenance Manual, Extension Board

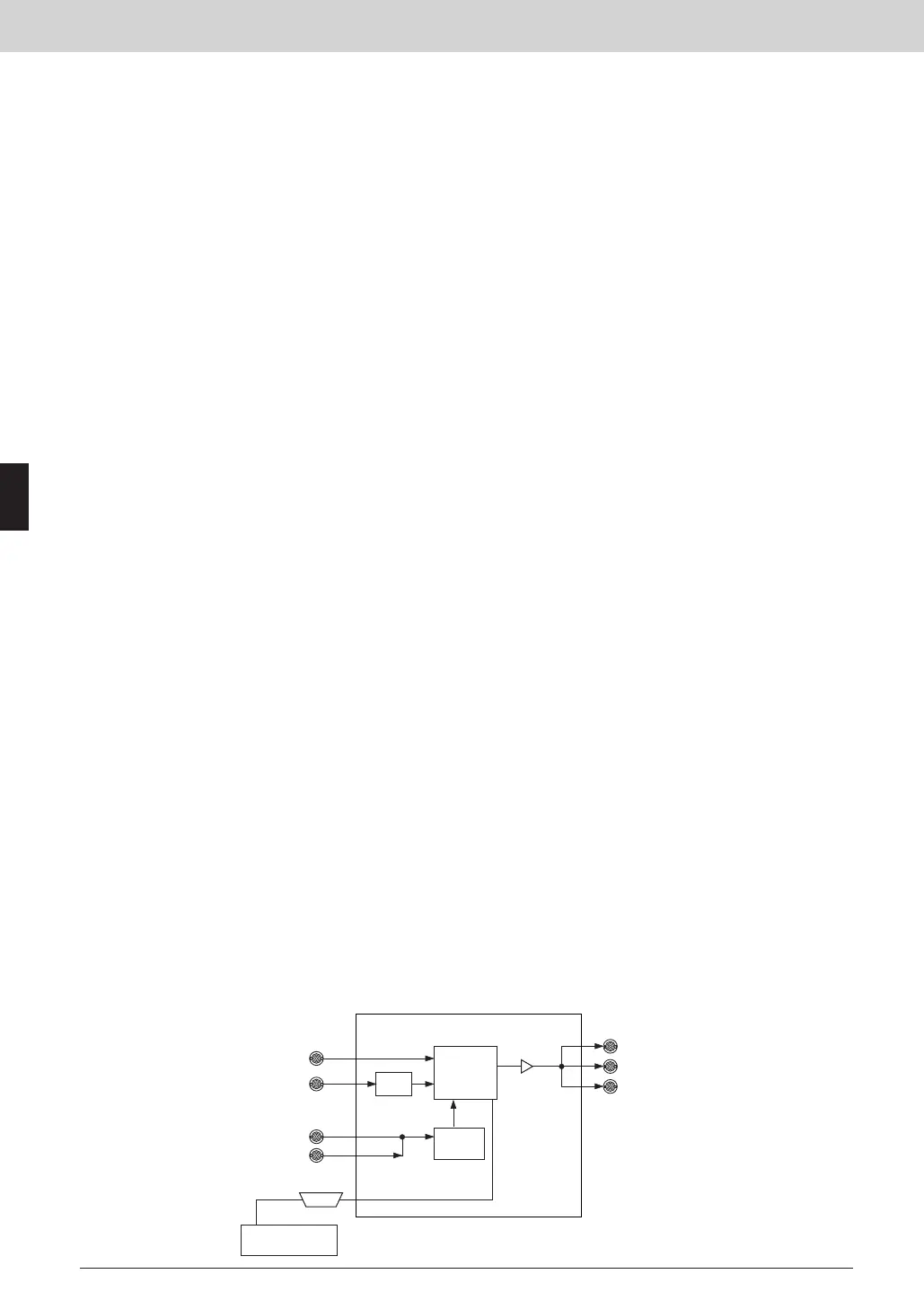

HD SDI OUT 1
HD SDI OUT 2
HD SDI OUT 3
Up-
Convert
CLK
A/D
SDI IN
VIDEO IN
REF
PASSIVE LOOP-THROUGH
RS-422A
Video Controller
HKDV-503/900
(1080i/1035i)
NTSC
COMPOSITE
ANALOG
108
Interface Processor D Series
Interface Processor D Series
