Interface Processor D Series
Interface Processor D Series
Applicable Models
PFV-HD50A HD Digital Video Interface Unit
Supplied Accessories
Operation manual (1)
Maintenance manual (1)
Slot number label (1)
The HKPF-E270 HDCAM Encoder Board is designed to
convert HD SDI signals (conforming to SMPTE292M/BTA
S-004B) to SDTI (HDCAM) signals. The bit rate and the
maximum transmission distance are common between
SDTI and SDI. This means that by combining
HKPF-E270 HDCAM encoder and HKPF-D270 HDCAM
decoder boards, existing routing and processing
equipment for SDTV serial digital signals can be
upgraded to also support HDTV signals. This preserves
past investments.
Features
* Encodes 1.5 Gb/s HD component serial digital video
with eight channels of embedded audio signal into 270
Mb/s SDTI (conforming to SMPTE305M) *
Non-compressed digital audio signals * Adopts HDCAM
CODEC for superb picture quality and highly efficient
compression * Automatic detection of 1035/1080 active
lines input (59.94 Hz field frequency fixed) * Transmission
up to 200 m over SDTI (Belden 8281, Fujikura 5C2V or
equivalent cable) * 1125 or 525 reference input with
passive loop-through * Error correction function for
transmission of SDTI * Supports ISR * EDH insertion
The HKPF Series function boards install in the PFV-HD Series Interface Units
together with the BKPF Series function boards.

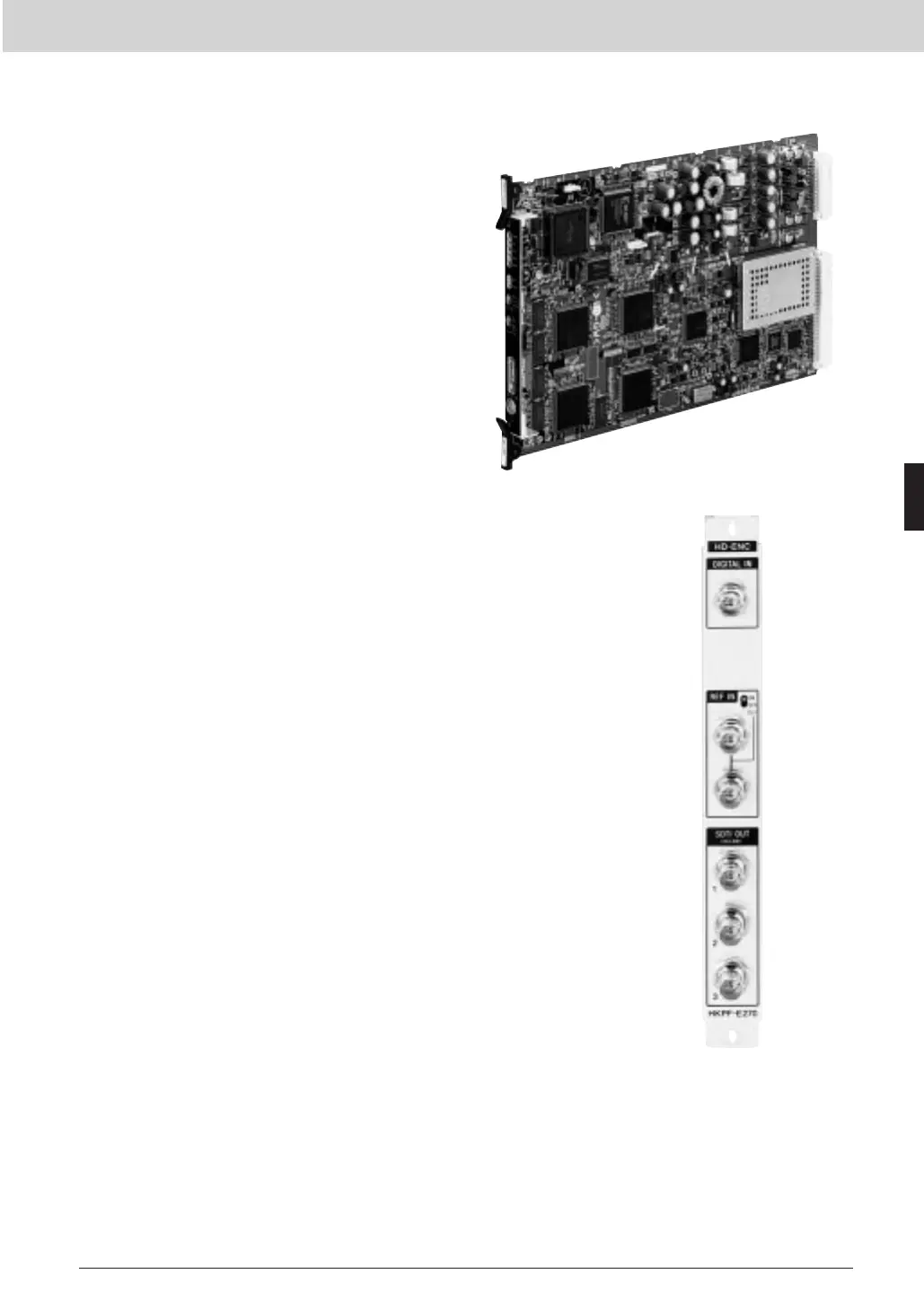

HKPF-E270 HDCAM encoder board
Rear Panel
