Specifications
Inputs/outputs
Video standard:
525/625, 4:2:2 component serial digital
signal (SDI), conforming to
SMPTE259M-C, 270 Mb/s
Serial digital input:
SDI IN connector (BNC type) (1)
Digital input return loss:
15 dB or more (5 MHz to 270 MHz)
Cable length:
200 m max. (with Belden 8281, Fujikura
5C2V or equivalent coaxial cable)
Serial digital outputs:
Active-through output connector (BNC
type) (1),
SDI OUT connector (BNC type) (4),
0.8 Vp-p 610%, 75 Ω
Digital output return loss:
15 dB or more (5 MHz to 270 MHz)
Reference input:
REF IN connector (BNC type) (1)
0.3 Vp-p 610%, 75 Ω, black burst
signal
Reference output:
Passive loop-through output connector
(BNC type) (1)
GPI:
REMOTE connector (D-sub 9-pin) (1),
open collector input
Memory:
4 fields
Phase adjustment range:
Line: -2 H, -1 H, 60 H, +1 H
Clock: -5.0 to +9.4 µs (74 ns steps
Fine: more than 80 ns (continuously
variable)
General
Power requirements:
+5 V DC: 0.7 A
(Supplied from PFV-L Series Interface
Unit)
Operating temperature:
5 to 40 °C (41 to +104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x W):
77 x 267 mm
(3 1/8 x 10 3/4 inches)
Connector panel (H x D x W):
130 x 152.5 x 38 mm
(5 1/8 x 6 1/8 x 1 1/2 inches)
Mass
Board:
Approx. 130 g (5 oz)
Connector panel:
Approx. 120 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual

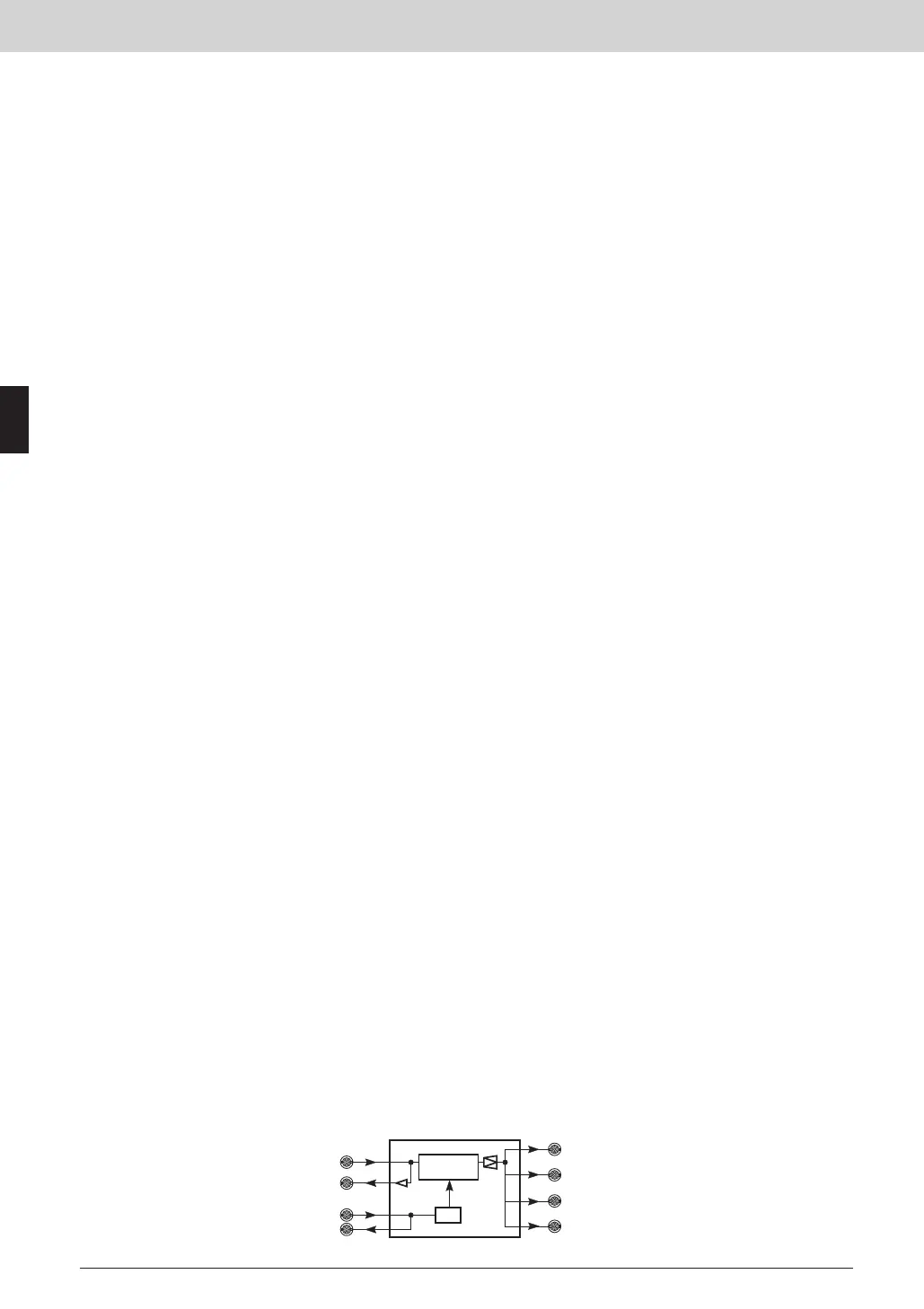

SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 4
525/625 COMPONENT
SERIAL DIGITAL
ACTIVE
LOOP-THROUGH
SDI IN
REF IN
PASSIVE LOOP-THROUGH
CLK
FRAME/LINE
SYNC
525/625 COMPONENT
SERIAL DIGITAL
