The HKPF-SP022 converts a variety of serial digital
electrical signals to optical signals and re-clocks them at a
bit rate from 143 Mb/s to 1.5 Gb/s. In combination with the
HKPF-SP021 Optical To Electrical Converter board, it
provides a transmission distance over an optical fiber of
up to 2 km. The bit rate of the input video signal can be
detected automatically. One digital video signal input, one
re-clocked electrical digital video signal output and one
converted optical signal output connectors are provided.
Features
*Used with HKPF-SP021 to extend transmission distance
of HD/SD SDI signals up to two km *Passes pathological
signal *Re-clocking at 143 Mb/s, 177 Mb/s, 270 Mb/s,
360 Mb/s, 540 Mb/s and 1.5 Gb/s. *Auto bit rate detection
*Status indication and output
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
65
Interface Processor SP Series
Interface Processor SP Series
HKPF-SP022 Electrical to Optical Converter

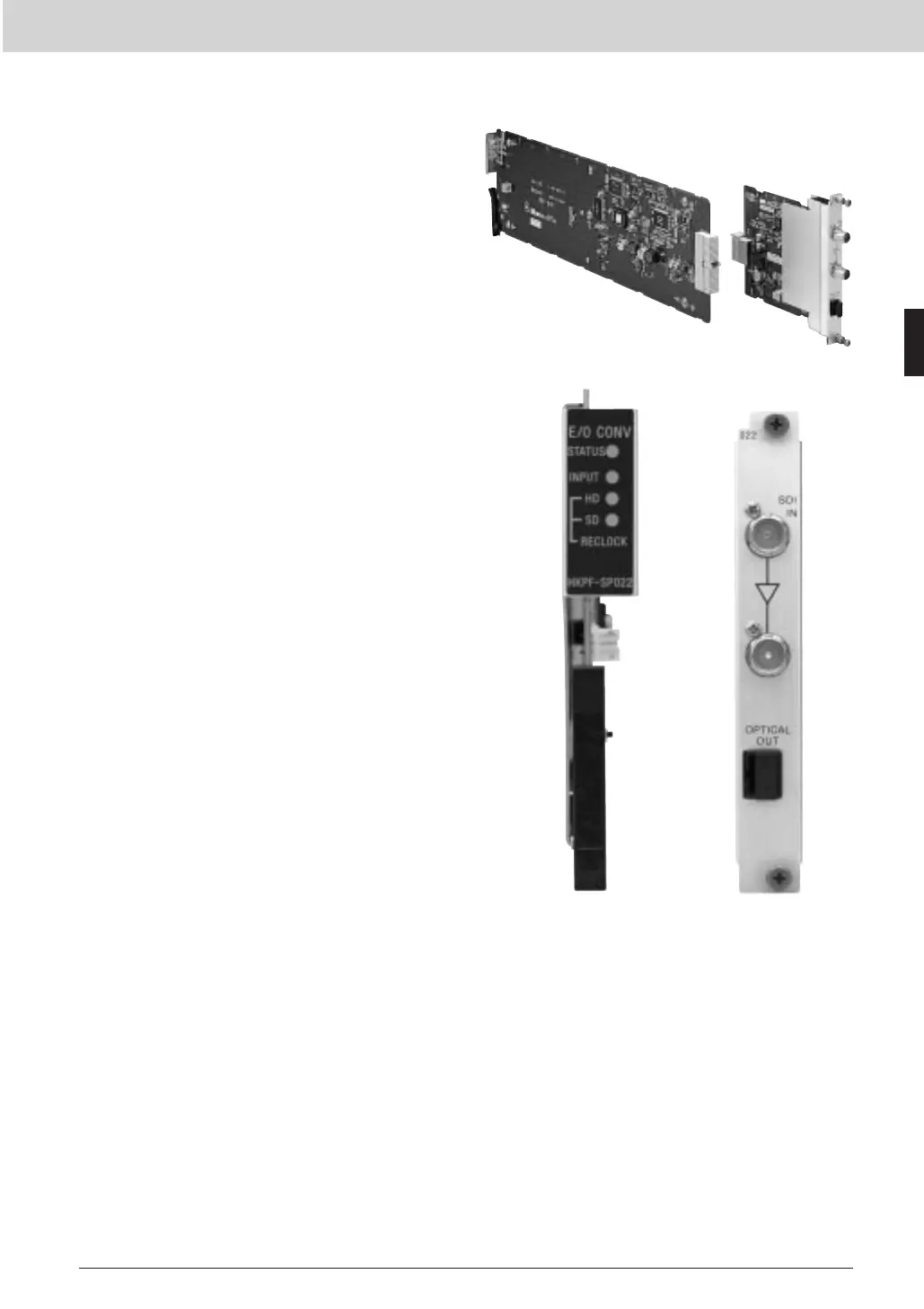

Front Panel Rear Panel
