Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Operation manual (1)
Installtion manual (1)
Slot number label (1)
The HKSP-105 is a video/audio multiplexer board that
multiplexes four AES/EBU format digital audio signals (8
channels) with an HD SDI video signal. Two outputs of the
multiplexed signal are provided. By cascading two
HKSP-105 boards, a further four AES/EBU signals can be
multiplexed onto one HD SDI signal, making a total of
eight pairs/sixteen channels.
Features
*Multiplexes four AES/EBU signals with an HD SDI signal
*Audio delay adjustable (maximum two video frames)
*Auto selection of HD multi-format *Remotely controllable
from an optional UCP-8060 Universal Control Panel
(Ethernet 100BASE-TX) *Masks and retains of HANC
area and embedded audio data *Transfers UMID and
VITC data *Provides simplified Signal Generator
*External reference input (PFV-SP Series Signal
Processing Unit)
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
50
Interface Processor SP Series
Interface Processor SP Series
HKSP-105 HD Audio/Video Multiplexer Board

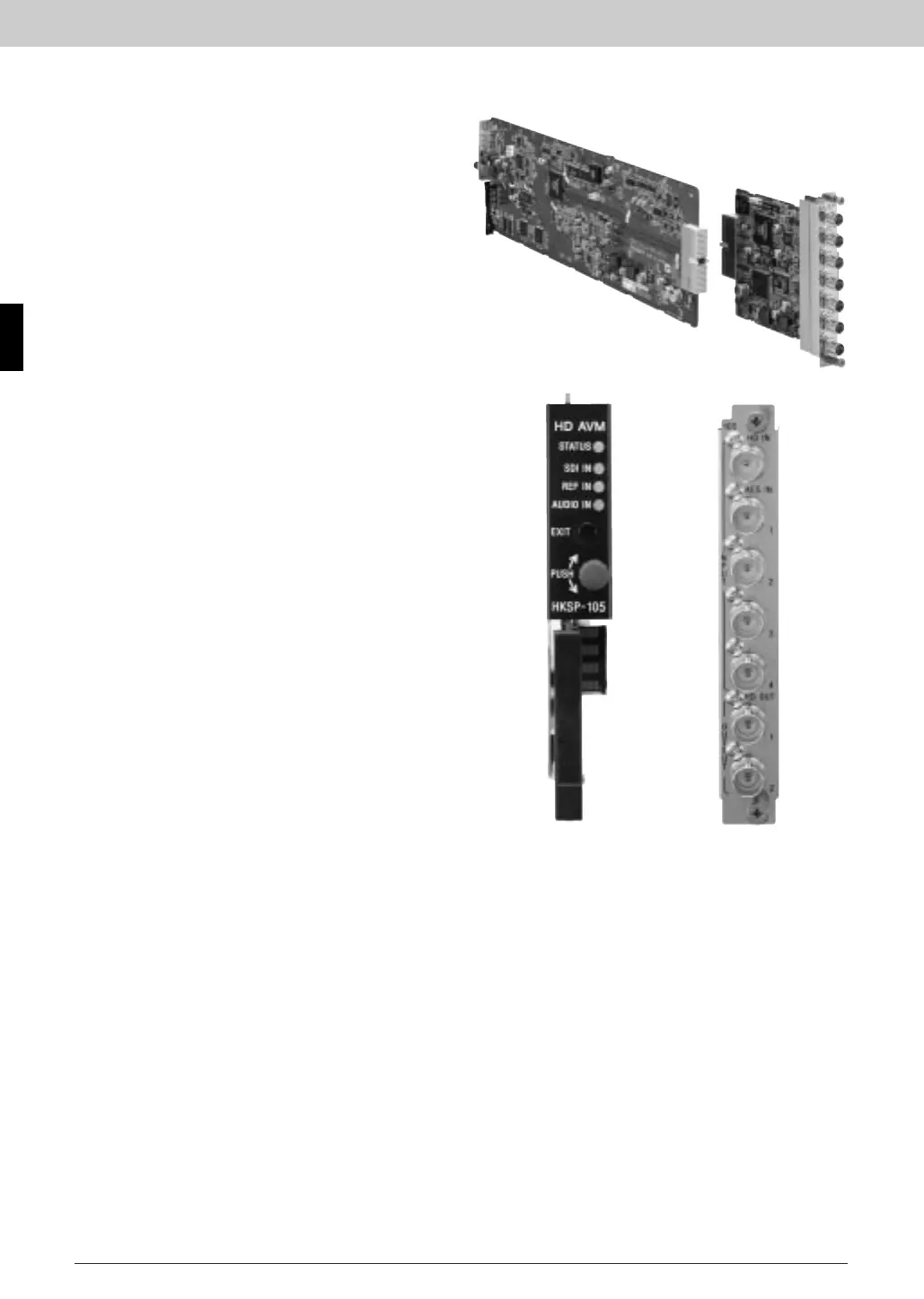

Front Panel Rear Panel
