Sony MK7807V1 - Analog

Specifications
Inputs/outputs
Analog video input:
Analog IN connector (BNC type) (1),
1.0 Vp-p, 75 Ω, NTSC/PAL composite
analog video signal
Reference input:
REF IN connector (BNC type) (1), 0.3
Vp-p 610%,
75 Ω, black burst signal
Analog video output:
Passive loop-through output connector
(BNC type) (1),
1.0 Vp-p, 75 Ω, NTSC/PAL composite
analog video signal
Serial digital outputs:
SDI OUT Connectors (BNC type) (4),
0.8 Vp-p, 75 Ω, SDI conforming to
SMPTE259M-C, 270 Mb/s
Reference output:
Passive loop-through output connector
(BNC type) (1)
Cable length:
200 m max. (with Belden 8281, Fujikura
5C2V or equivalent coaxial cable)
Channel coding:
Scrambled NRZI
Digital output return loss:
15 dB or more (5 MHz to 270 MHz)
Video characteristics
Quantization:
10 bits
Sampling frequency
Input:
28.636 MHz (NTSC input), 35.468
MHz (PAL input)
Output:
13.5 MHz (Y), 6.75 MHz (B-Y/R-Y)
Band width:
5.75 MHz (Y)
K factor (2T pulse):
1% or less
Signal-to-noise ratio:
58 dB or more (using Flat Field)
Memory:
4 fields
Processing delay:
74 µs (NTSC)/137 µs (PAL)
Phase adjustment range
Line:
-2 H, -1 H, 60 H, +1 H
INPUT Lock mode:
0.1 to 9 µs, 37 ns step
External REF mode:
-4.5 to +4.5 µs, 37 ns step
Test signal:
75% color bars with 100% white
General
Power requirement:
+5 V DC: 1.4A
(Supplied from PFV-L Series Interface
Unit)
Operating temperature:
5 °C to 40 °C (41 °F to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x W):
77 x 267 mm
(3 1/8 x 10 3/4 inches)
Connector panel (H x W):
85 x 33 mm
(3 3/8 x 1 5/16 inches)
Mass
Board:
Approx. 170 g (6 oz)
Connector panel:
Approx. 100 g (4 oz)
The total power consumption of the installed
function boards should not exceed 13 A at 5 V
(PFV-L10) . Service part: Maintenance manual

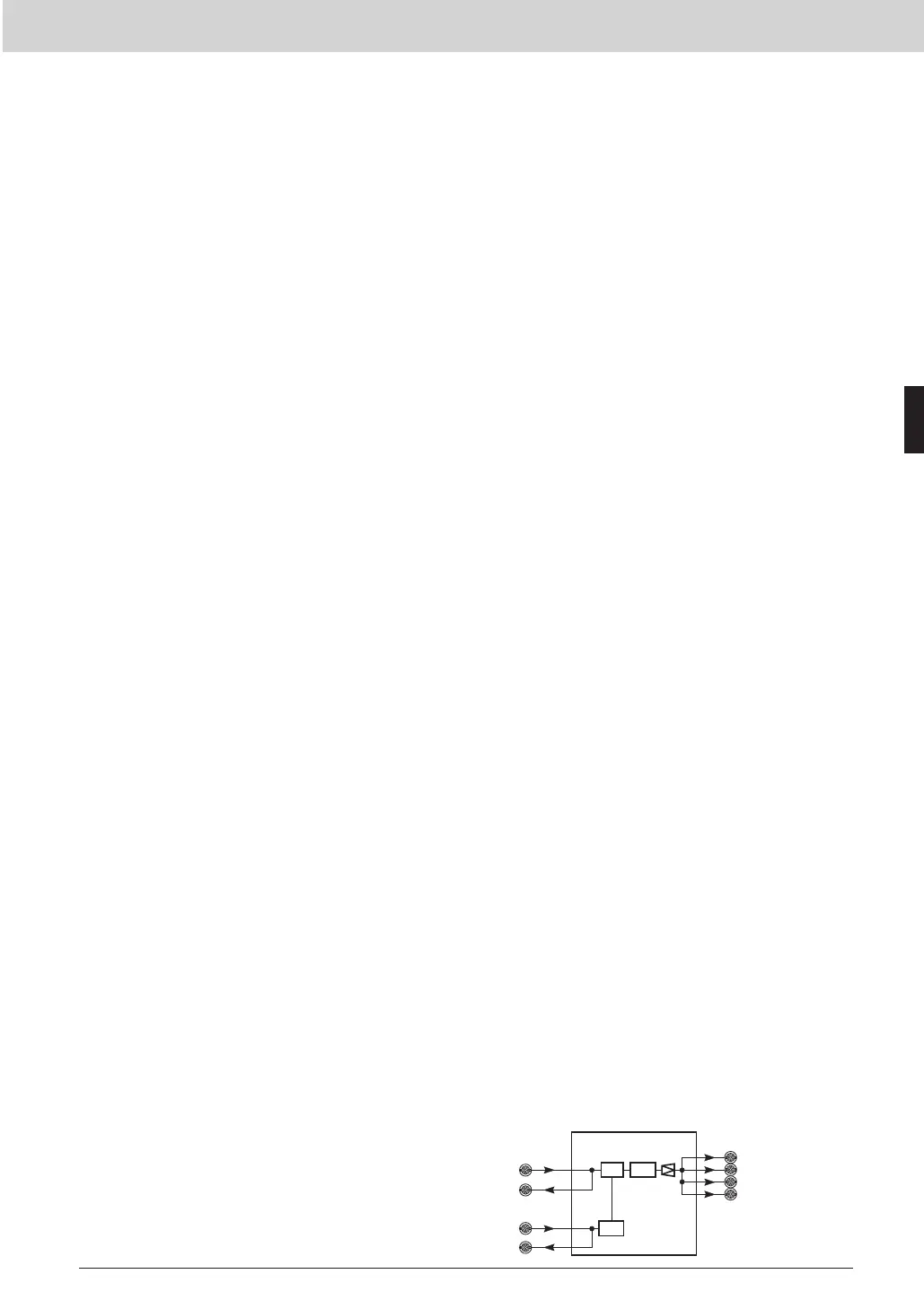

DEC
525/625 COMPONENT
SERIAL DIGITAL
VIDEO OUTPUTS
SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 4
PASSIVE LOOP-THROUGH
VIDEO IN
REF IN
PASSIVE LOOP-THROUGH
A/D
CLK
NTSC/PAL COMPOSITE
ANALOG VIDEO
85
Interface Processor L Series
