Applicable Models
BVS-A3232 Analog Audio Routing Switcher
BVS-V3232 Analog Video Routing Switcher
DVS-128 Routing Switcher
DVS-RS1616 RS-422A Remote Routing
Switcher
DVS-TC3232 Time Code Routing Switcher
HDS-X3400 Multi Bit-Rate Routing Switchers
HDS-X3600 Multi Bit-Rate Routing Switchers
HDS-X3700 Multi Bit-Rate Routing Switchers
HDS-X5800 Multi Bit-Rate Routing Switcher
Supplied Accessories
Operation and maintenance manual (1)
BNC T-bridge connector (1)
Specifications
Control signal
REMOTE 1:
S-BUS (BNC type) (1)
Data transfer method: BI-PHASE SPACE
Data transfer rate: 312.5 kb/s
Max. cable length 500 m (when using
Belden 8281, Fujikura 5C2V or
equivalent 75 Ω coaxial cable).
Expandable to 1000 m with a
BKPF-L803 S-BUS Isolator/Expander
REMOTE 2:
D-sub 9-pin (1)
Data transfer method: conforms to the
EIA RS-422A Cart+ protocol
Data transfer rate: 38.4 kb/s
RS-232C:
D-sub 9-pin male (1)
Data transfer method: 8-bit, no parity, 1
stop bit
Data transfer rate: 19.2 kb/s
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Current consumption:
0.20 A
Operating temperature:
0 to 45 °C (32 to 113 °F)
Dimensions (W x H x D):
440 x 44 x 120 mm
(17 3/8 x 1 3/4 x 4 3/4 inches)
Mass:
Approx. 1.5 kg (3 lb 5 oz)
The BKS-R1618 universal control unit controls matrix
cross points in routers connected to an S-BUS system.
The BKS-R1618 also controls the monitoring output of
routers that have this facility. Source and destination
switching is performed with 16 buttons, whose functions
are pre-defined with the control terminal connected to the
primary station of the S-BUS system. The monitoring
signal can also be selected as a destination signal. The
shallow depth of the unit makes it easy to accommodate
the BKS-R1618 in front of a desk-mounted switcher
control panel.
Features
* Router control in S-BUS systems * Fully compliant with
expanded S-BUS systems * Free assignment of
sources/destinations to each button via BZR-2000 router
system set-up software * Improved monitor function for
the selection of destinations * Alternate source switching
using Chop function * Sources selectable to levels * Large
selector buttons show source and destination name
(Status shown by button color) * Several crosspoints
switchable with a single button (Phantom function) *
Route function for expanded sources * Number of sources
and destinations controlled expandable with additional
units * Control bridge between RS-422A (cart+ protocol)
and S-BUS * Easy ROM update * Single cable connection
* Reduced depth helps in desk mounting applications

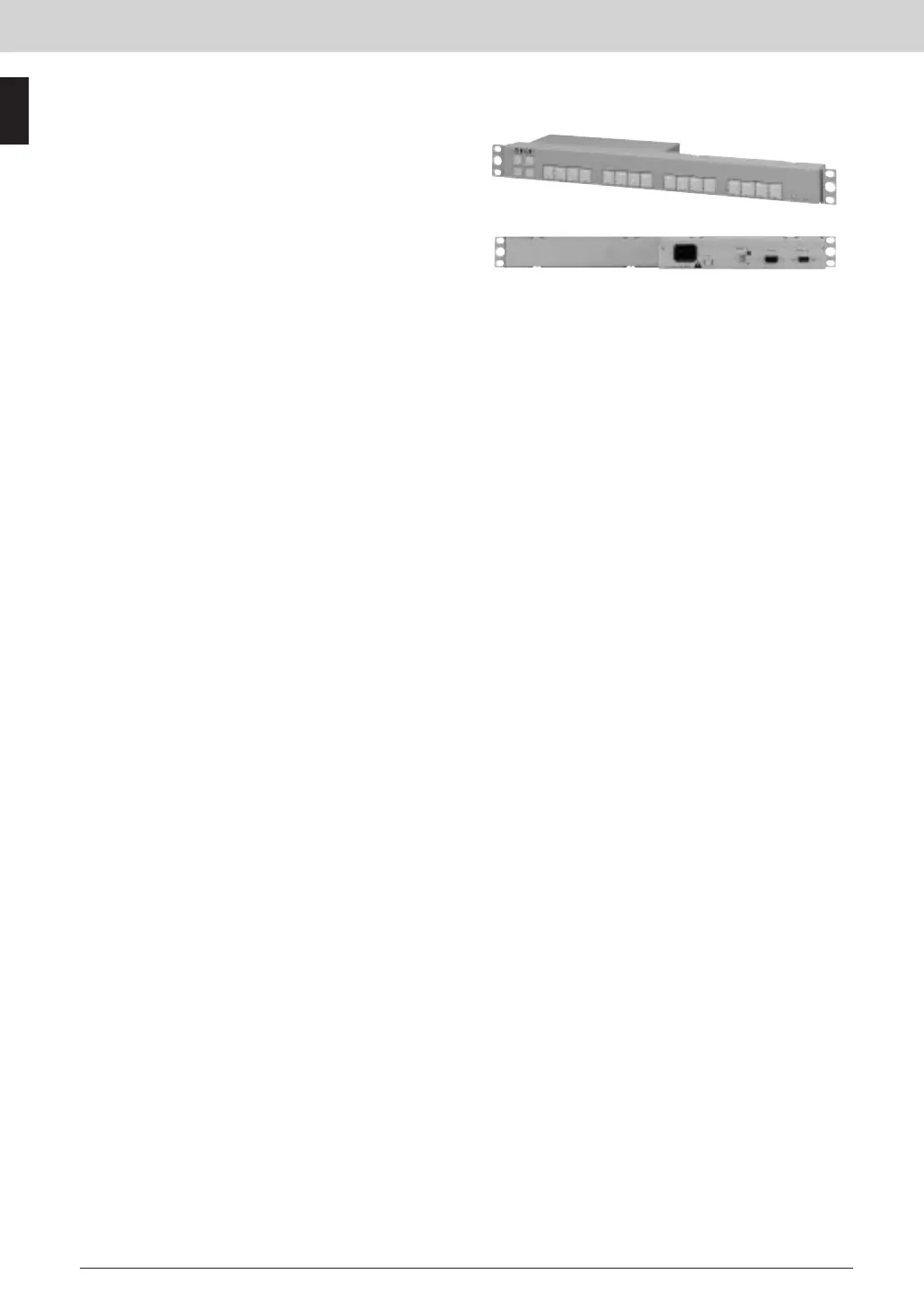

BKS-R1618 Universal Control Unit
Rear Panel
24
Routing Switchers
Routing Switchers
