Applicable Models
PFV-L10 Interface unit
Supplied Accessories
Installation guide (1)
Installtion manual (1)
Slot number label (1 set) (1)
EX-731 Extension Board (Part No.A-8322-598-A) (1)
Specifications
Inputs/outputs
Serial digital inputs:
SDI IN connectors (BNC type) (2)
525/625 component serial digital signal
conforming to SMPTE259M-C (ITU-R
BT.601/BT.656), 270 Mb/s
Input return loss:
15 dB or more (at 5 MHz to 270 MHz)
Cable length:
200 m max. (When using a Belden 8281,
Fujikura 5C2V or equivalent coaxial cable)
Serial digital outputs:
Active loop-through output connectors
(BNC type) (2)
0.8 Vp-p 610%, 75 Ω
Output return loss:
15 dB or more (at 5 MHz to 540 MHz)
Rise time/fall time:
0.5 to 0.75 ns
(20% and 80% amplitude points)
Overshoot:
Less than 10%
Alignment jitter:
Less than 0.2 UIp-p (UI = Unit Interval)
DC offset:
Less than 60.5 V
Analog outputs:
VIDEO OUT connectors (BNC type)
(6; 3 for each channel)
NTSC: 1.0 Vp-p 63% (714 mVp-p/286
mVp-p), 75 Ω
PAL: 1.0 Vp-p 63%, (700 mVp-p/300 mVp-p),
75 Ω
Analog Video Characteristics
Sampling frequency:
27.0 MHz
Resolution:
10 bits (conversion from 8 bits to 10 bits)
Signal to noise ratio:
54 dB or more
Frequency response:
60.5 dB
DG/DP:
NTSC: Less than 2%/2°
PAL: Less than 2%/3.5°
Y/C delay:
Less than 620 ns
General
Power requirements:
+ 5 V DC: 1.0 A (supplied from the PFV-L
Series Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 F°)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
140 g (5 oz)
Connector panel:
100 g (4 oz)
Service parts: Extension board (Part No.A-8322-598-A),
Maintenance manual
VIDEO OUT 1-1
VIDEO OUT 1-2
VIDEO OUT 1-3
VIDEO OUT 2-1
VIDEO OUT 2-2
VIDEO OUT 2-3
525/625
COMPONENT
DIGITAL
NTSC/PAL
COMPOSITE
ANALOG
SDI IN 1
ACTIVE
LOOP-THROUGH
SDI IN 2
ACTIVE
LOOP-THROUGH
S/P
CONV.
DIGITAL
ENCODER
S/P
CONV.
DIGITAL
ENCODER

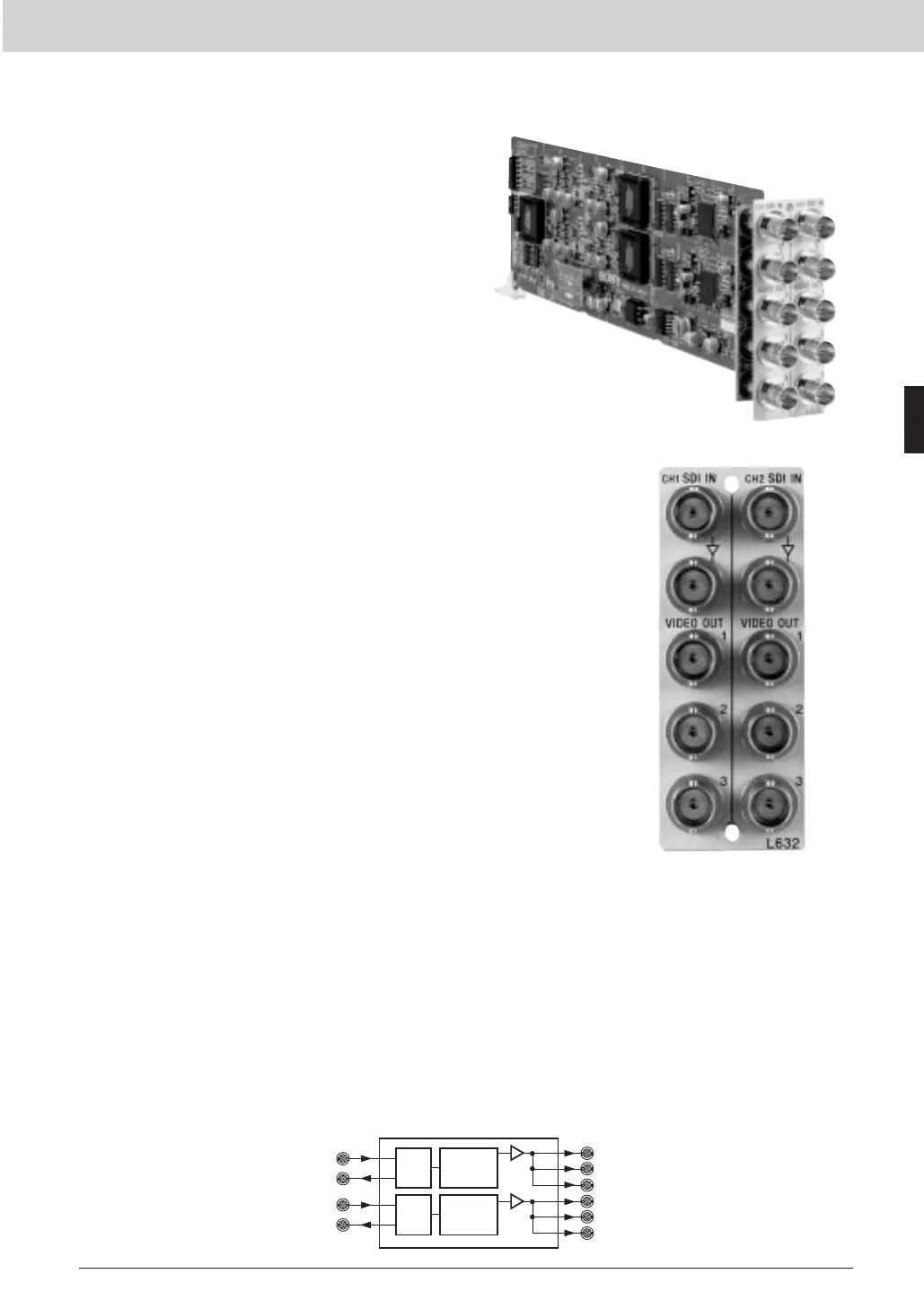

The BKPF-L632 is 525/625 component serial digital to
NTSC/PAL composite analog encoder board. It has two
component inputs, and provides three distribution outputs
from each input. Either 525 or 625-line input signals can
be converted and encoded to NTSC/PAL composite
analog video signals. 8-bit processing is used to provide
output signals suitable for picture monitoring purposes.
The BKPF-L632 is an ideal system integration
component, meeting the need to provide multi-channel
picture monitoring in video systems.
Features
* Two 525/625 component serial digital inputs with active
loop-through * Converts and distributes each input signal
to three NTSC/PAL composite analog outputs * Accepts
either 525-line or 625-line signals with auto selection
function (manual selection also available with on-board
switch) * 7.5 IRE setup ON/OFF selectable for 525-line
signals * 8-bit processing for monitoring purpose * SDI
input presence lamp * -5 V warning lamp
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
83
Interface Processor L Series
Interface Processor L Series
BKPF-L632 Monitoring Composite Encoder Board
Rear Panel
