Applicable Models
PFV-L10 Interface unit
Supplied Accessories
Phoenix type 15-pin connectors (2)
EX-731 Extension Board (Part
No.A-8322-598-A) (1)
Specifications
Inputs/outputs
Inputs/outputs (selectable with on-board
switch)
Stereo:
1 input/4 outputs
Monaural:
1 input/8 outputs
Input impedance (selectable with on-board
switch):
600 Ω/20 kΩ
Standard input/output level:
+4 dBm
Maximum input level:
+28 dBm
Maximum output level:
+24 dBm (600 Ω load)
CMRR:
80 dB or more (at 60 Hz)
Frequency response:
60.1 dB
(20 Hz to 20 kHz, at 1 kHz standard,
standard level)
Input/output gain settings:
-8, -4, 0, +4, +8 dB (selectable)
Gain control range:
62 dB
Distortion:
0.01% or less
(20 Hz to 20 kHz, at +24 dBm output,
with 0 dB gain)
Signal-to-noise ratio:
115 dB or more (at +24 dBm output, 30
kHz LPF)
Crosstalk:
-95 dB or less
(20 Hz to 20 kHz at +24 dBm
input/output, each channel)
General
Power requirements:
+5 V DC: 1.2 A
(Supplied from the PFV-L Series
Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
Approx. 180 g (6 oz)
Connector panel:
Approx. 70 g (2 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual
ANALOG AUDIO OUT 1
ANALOG AUDIO OUT 2
ANALOG AUDIO IN 1
ANALOG AUDIO IN 2
The BKPF-L753A analog audio distribution board
distributes an analog stereo audio signal to four outputs or
an analog monaural audio signal to eight outputs. A gain
control allows the input reference level to be varied
between -4 dBm and +12 dBm. Phoenix type connector
for each distribution block carries its input and output
signals.
Features
* Single or dual distribution configuration (selectable with
on-board switch) * Eight distribution outputs of a mono
analog audio input * Four distribution outputs of a stereo
analog audio input * Low noise * Gain control function
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
96
Interface Processor L Series
Interface Processor L Series

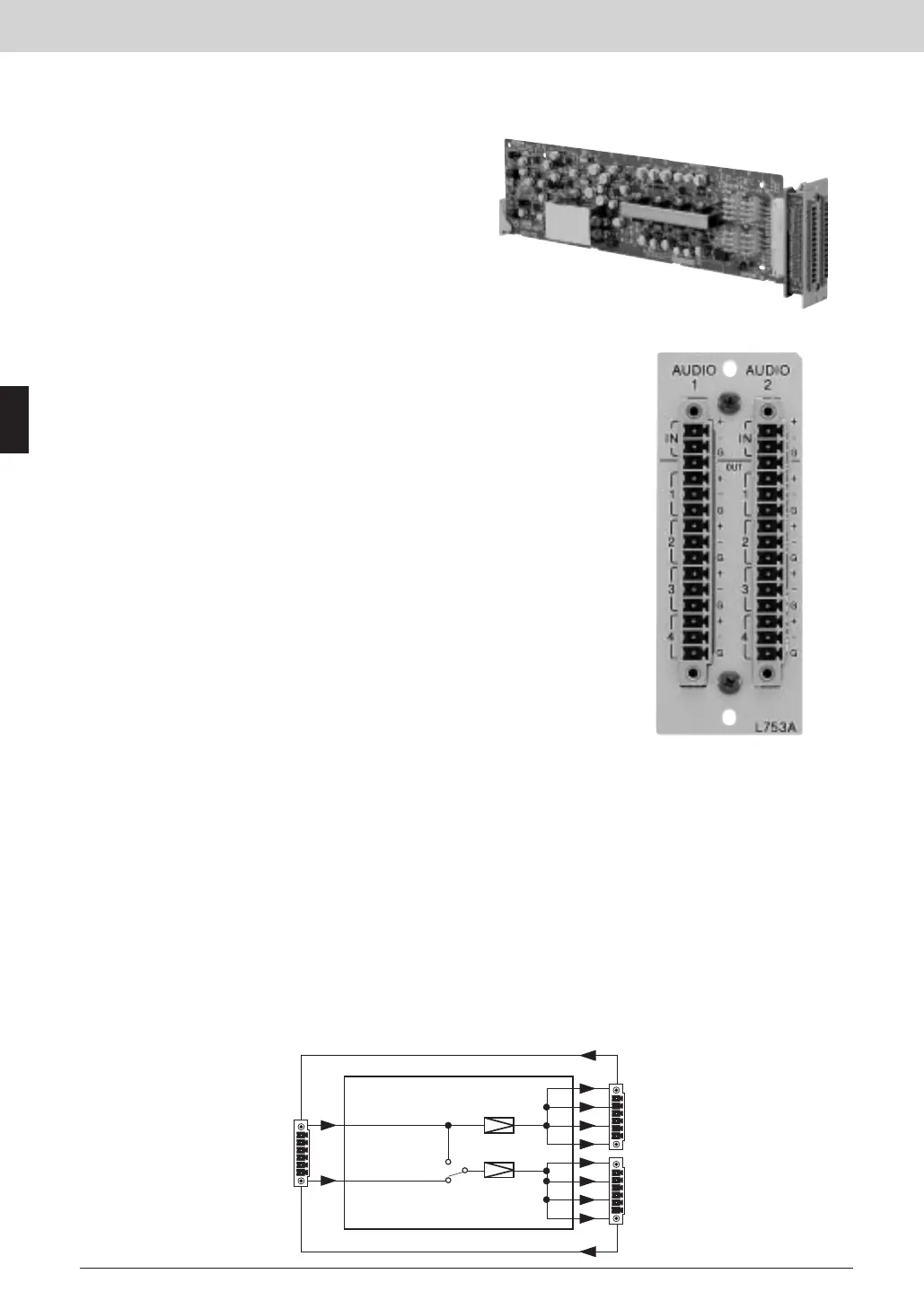

BKPF-L753A Analog Audio Distribution Board
Rear Panel
