The BKS-R3280 is single status display unit showing
alphabetic and numeric characters with bright,
seven-segment, amber displays. The BKS-R3280
displays up to seven characters. Connected to a standard
S-BUS or the monitor S-BUS data link, it shows router
switching status. The unit can also display preset
character strings from external equipment connected to
the D-sub 25-pin parallel control TALLY connector.
BKS-R3280 can be mounted in a standard 19-inch rack
and are 1U high.
Features
* Signal information display in router systems * Display of
source, destination, source line number and source status
* Large displays with four-step brightness control * PGM
and PST tally indication * S-BUS or parallel control

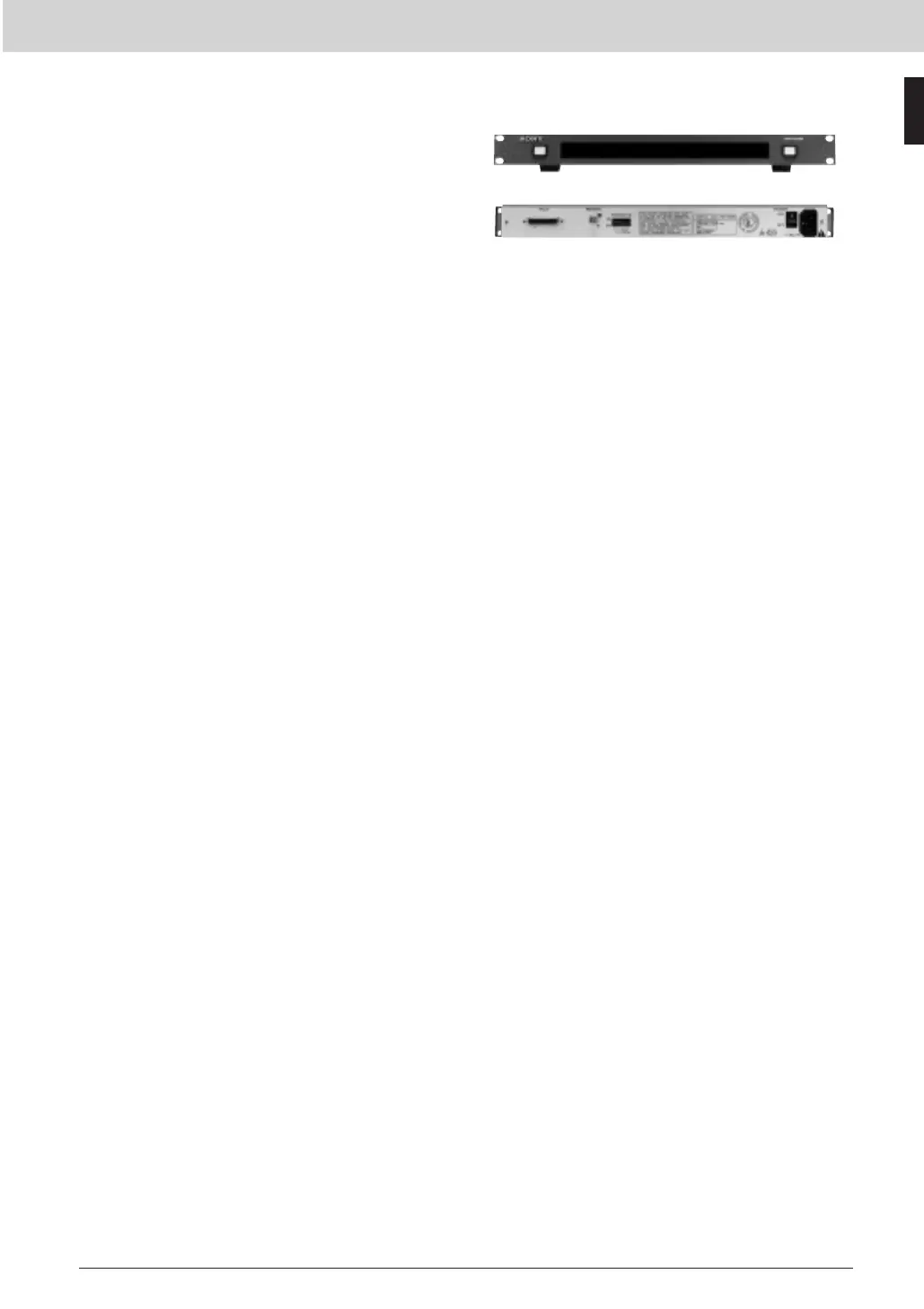

BKS-R3280 Single Status Display Unit
Rear Panel
