Sony MK7807V1 - Analog

Specifications
Inputs/outputs
SDI input:
SDI IN connector BNC type (1)
NTSC composite or 525/625 component
serial digital signal conforming to
SMPTE259M-A/C (ITU-R
BT.601/BT.656); 143, 270, Mb/s
(selectable with on-board switch)
Input impedance:
75 Ω
Input return loss:
15 dB or more
Cable length:
200 m max. (When using a Belden
8281, Fujikura 5C2V or equivalent
coaxial cable)
SDI outputs:
SDI OUT connectors (BNC type) (2)
Serial digital video signal of the same
format as that to the input connector
0.8 Vp-p610%, 75 Ω
Output return loss:
15 dB or more (5 MHz to 270 MHz)
Analog audio signal outputs:
ANALOG OUT AUDIO connectors (4)
XLR-3-32 (female), balanced
(transformerless electronic balanced
differential output)
Output impedance:
Approx. 20 Ω
Reference input level:
+4 dBm (-10 to +8 dBm continuously
variable)
Maximum output level:
+23.5 dBm or more (with a 600 Ω load)
+25.0 dBu or more
(into a high impedance load)
Conversion characteristics
Quantization:
20 bit linear/48 kHz sampling
Headroom:
20 dB (at operation level)
Frequency response:
20 Hz to 20 kHz within +0.2/-0.3 dB (at
1 kHz standard)
Distortion:
Less than 0.05% (at 1 kHz, reference
level, 30 kHz low-pass)
Signal-to-noise ratio:
More than 93 dB
(Maximum output level, 30 kHz
low-pass)
Crosstalk:
Less than -90 dB (up to 15 kHz)
Input signal common-mode rejection ratio:
More than 80 dB (at 60 Hz)
Phase difference between channels:
Within the same board: 0.1° or less (at 1
kHz)
Between the cascaded boards
connected in parallel or cascade: 6° or
less (at 1 kHz)
Deemphasis:
Automatically activated (time constant
50 µs/15 µs)
Signal delay:
Component digital: approx. 0.48 µs
NTSC composite digital: approx. 0.91
µs
Analog audio:
Approx. 0.76 ms (at 525/625
component serial digital)
Approx. 0.90 ms (at NTSC composite
serial digital)
EDH:
Conforms to SMPTE RP165
ISR Output information
Status message:
7 items
Status message:
6 items
General
Power requirements:
+5 V DC: 460 mA, -5 V DC: 620 mA
(Supplied from the PFV-D/PFV-HD
Series Interface Unit)
Power consumption:
Approx. 5.4 W
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x W):
195 x 310 mm
(7 3/4 x 12 1/4 inches)
Connector panel (H x W):
195 x 25 mm
(7 3/4 x 1 inches)
Mass
Board:
Approx. 530 g (1 lb 3 oz)
Connector panel:
Approx. 160 g (6.3 oz)

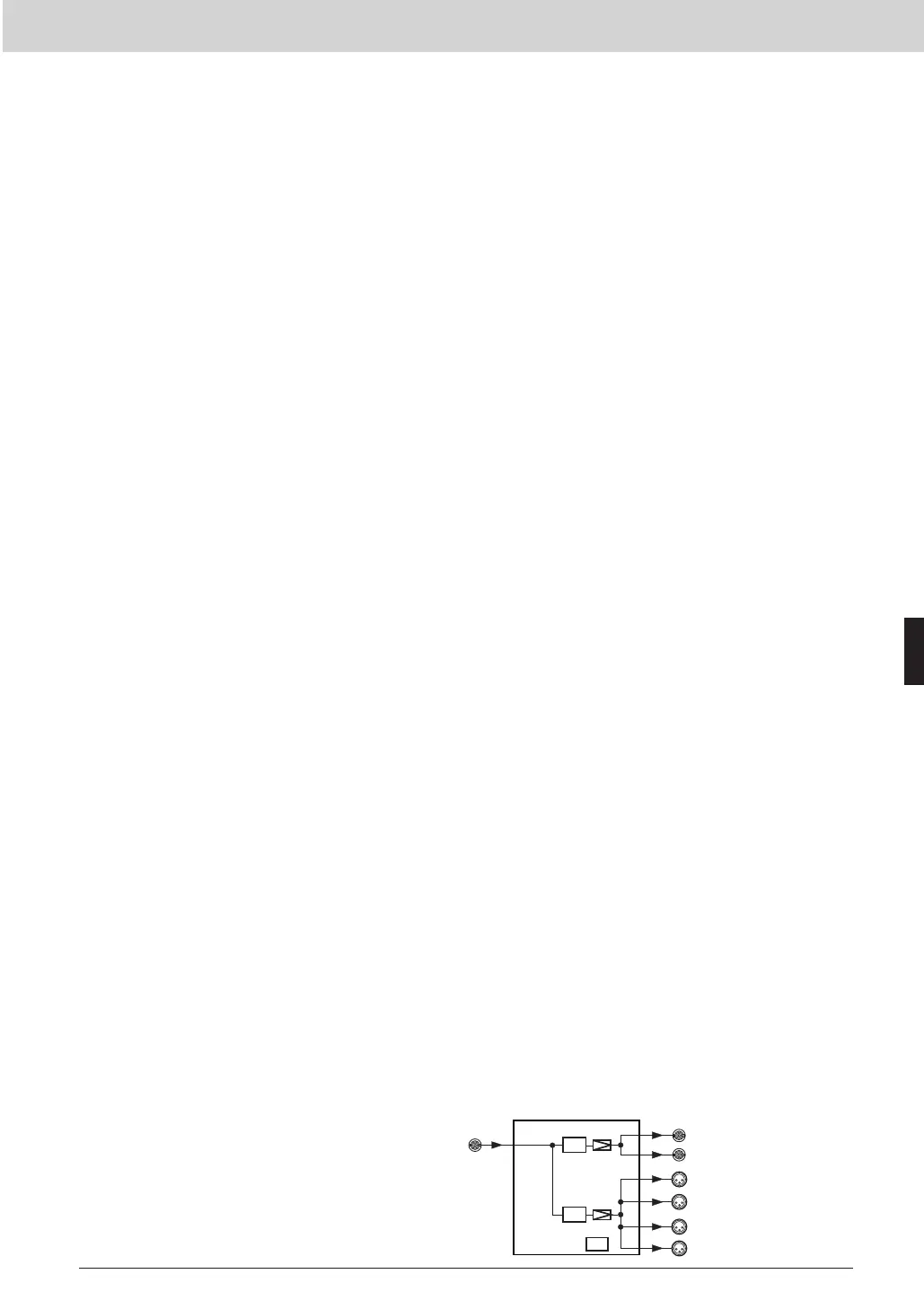

NTSC COMPOSITE/
525/625 COMPONENT
SERIAL DIGITAL VIDEO
WITH EMBEDDED AUDIO
EDH
D/A
ISR
NTSC COMPOSITE/
525/625 COMPONENT
SERIAL DIGITAL VIDEO
OUTPUT
ANALOG AUDIO
OUTPUT
