Applicable Models
PFV-L10 Interface unit
Supplied Accessories
Phoenix type 6-pin connectors (2)
EX-731 Extension Board (Part
No.A-8322-598-A) (1)
The BKPF-L751 is a dual channel audio analog to digital
converter board that accepts up to two analog audio
stereo inputs and converts them into two AES/EBU format
outputs. The signals carried by the two AES/EBU outputs
can be interchanged. Conversion is at a resolution of 24
bits and at a sampling frequency of 48 kHz. Either a
video reference (NTSC, PAL or HD) or a 48 kHz audio
word clock can be used as a reference signal. A word
clock output is available by setting an internal switch on
the board so that other cascade-connected BKPF-L751
boards can be operated synchronously.
Features
* Converts two stereo analog audio signals to two
AES/EBU digital audio signals * 24 bits conversion at 48
kHz sampling frequency * The signals carried by the two
AES/EBU outputs can be interchanged * Sync input
accepts an NTSC/PAL/HD video or 48 kHz word clock
signal (manual selection with on-board switch) * Word
Clock output available (selectable with on-board switch) *
Output level adjustment range: 64 dB * -5 V warning lamp
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
93
Interface Processor L Series
Interface Processor L Series

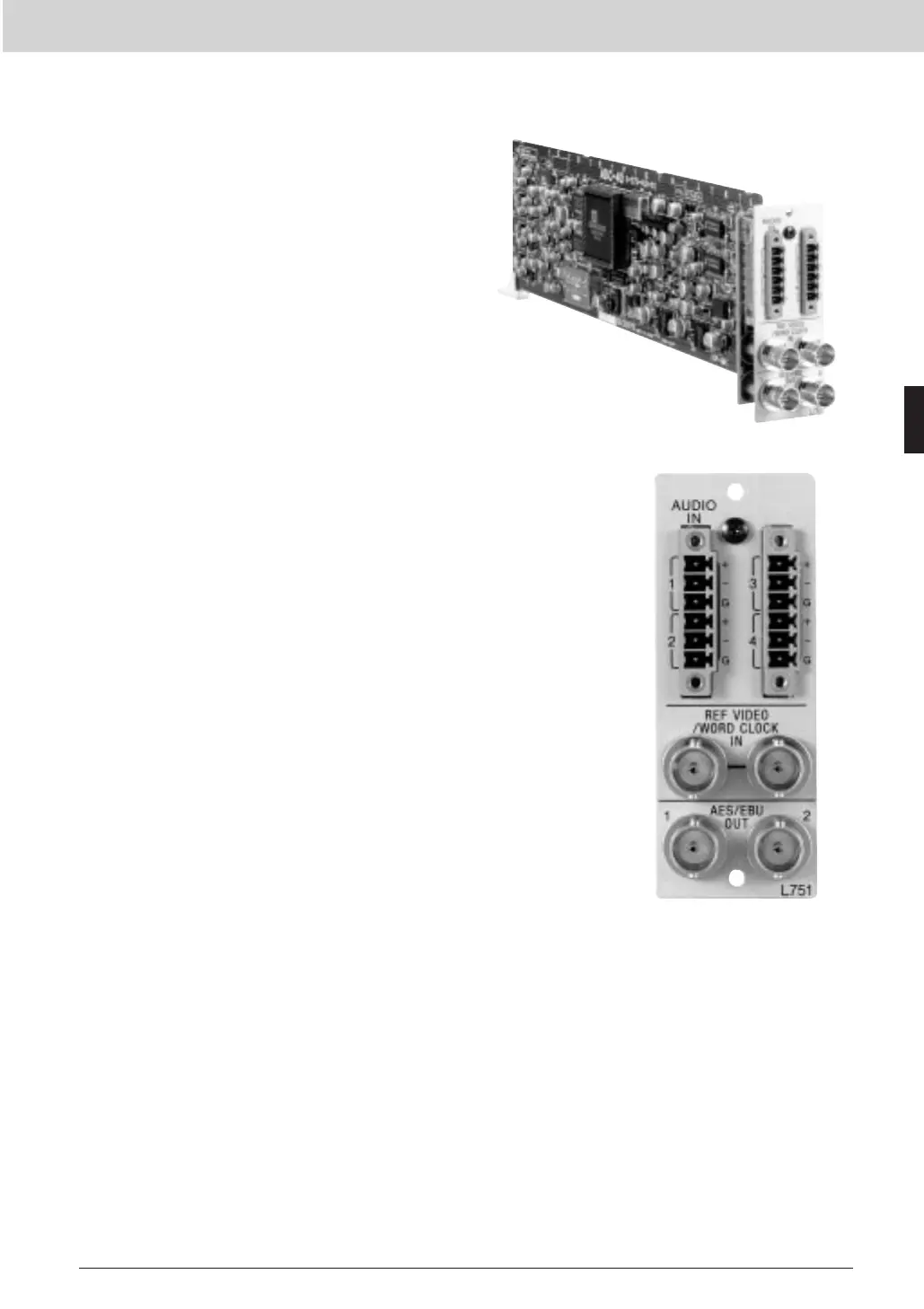

BKPF-L751 Audio A to D Converter Board
Rear Panel
