Supplied Accessories
Operation manual (1)
Installation manual (1)
Maintenance manual (1)
75 Ω teminator (1)
BNC T-bridge connector (1)
Backup software BZR-20 (1)
Optional Accessories
RMM-10 Rack Mount Kit
Optional Boards
HKDS-X3010 Distribution Board
HKDS-X3011 SD Serial Input Board
HKDS-X3064 SD/HD Serial Output Board
HKDS-X3060 SD/HD Matrix Board
HKDS-X3051 SD Serial Output Board
HKDS-X3050 SD Matrix Board
HKDS-X3014 SD/HD Serial Input Board
Optional Software
BZR-2000 Routing Switcher Control Software
Optional Peripherals
BKS-R1617 Multi-Display Control Unit
BKS-R1618 Universal Control Unit
BKS-R3216 Multi-BUS Control Unit
BKS-R3219 Universal Control Unit
BKS-R3220 X-Y Control Unit
BKS-R3240A X-Y Control Unit
BKS-R3242A X-Y Control Unit
BKS-R3248A X-Y Control Unit
BKS-R3400 Routing Switcher Control Panel
BKS-R3281 Single Status Display Unit
BKS-R3280 Single Status Display Unit
Specifications
Inputs/outputs
REMOTE 1:
S-BUS, BNC type (1)
Data transfer rate:
312 kb/s
Data transfer method:
BI-PHASE SPACE
Transmission distance:
500 m (with Belden 8281, Fujikura
5C2V or equivalent 75 Ω coaxial
cable).
Expandable to 1000 m with a
BKPF-L803 S-BUS Isolator/Expander
REMOTE 2:
Complies with RS-422A signal
standards
D-sub 9-pin (1)
Data transfer rate:
38.4 kb/s
Protocol:
Cart+
REMOTE 3:
Complies with RS-232C signal
standards
D-sub 9-pin male (1)
Terminal:
9.6/38.4 kb/s DTR control,
8 bits, no parity, 1 stop bit
REF IN:
Tri-level sync/Black burst:
BNC with loop-through (1)
NETWORK:
10Base-T, RJ-45 (1)
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Power consumption:
70 W (16 x 16, 1.5 Gb/s)
Operational temperature:
5 to 40 °C (41 to 104 °F)
Operational humidity:
10 to 90%
Dimensions (W x H x D):
440 x 43.6 x 520 mm
(17 3/8 x 1 3/4 x 20 1/2 inches)
Mass:
Approx. 8.5 kg (18 lb 12 oz) (without
modules)
Service parts: Extension Board, Maintenance
Manual Part II, Protocol Manual
The HDS-X3000 Series are ultra-compact multi bit-rate
routers developed to support every format defined by Rec
ITU-R BT605, SMPTE259M (SD), and SMPTE292M (HD)
as well as 1080/24P format. A range of I/O modules
handles signals from 143 Mb/s up to 1.5 Gb/s. Router
control is via S-BUS and RS-422A. S-BUS is providing
communications and tally management with BKS-R
Series routing switcher control units, Sony MVS/DVS
Series production switchers and so on. Among the many
features that S-BUS supports are multi-level working,
signal breakaway, phantom operation of cross-points and
tie-line management. Router data is maintained in
memory by a 24-hour battery backup.
Features
* A range of highly flexible, multi bit-rate routing switchers
for use in S-BUS systems * High density, ultra compact
design * 143 Mb/s to 1.5 Gb/s in the same frame, without
any system alteration * SDI (143, 177, 270, 360 Mb/s and
540 Mb/s) * SDTI (270 Mb/s) * HD SDI (1.485 and
1.485/1.001 Gb/s) * Flexible input and output
configurations in increments of 16 channels * HD SDI/SD
SDI input and output options * Low-cost SD SDI input and
output options * Auto cable equalization on inputs and
re-clocking on outputs * Passes DVB-ASI signals *
Supports SMPTE292M, which includes the proposed
1080/24P format * Black burst and tri-level sync reference
switching in blocks of 32 outputs * Monitoring outputs in
blocks of 32 channels * S-BUS and RS-422A control *
Redundant control and power supply
16
Routing Switchers
Routing Switchers

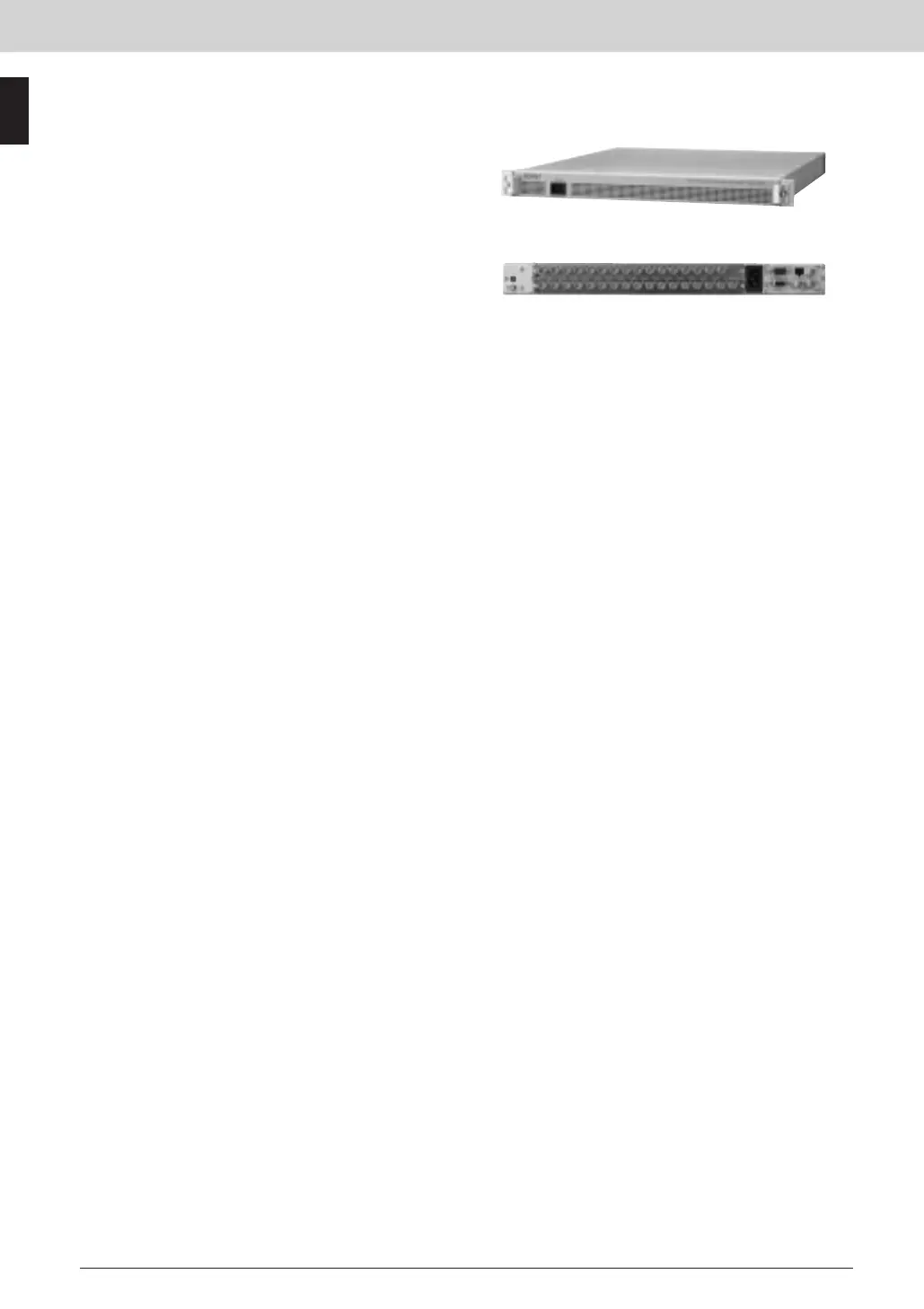

HDS-X3400 Multi Bit-Rate Routing Switchers
Rear Panel
