Optional Boards
BKSI-2010 Disk Controller Board
BKSI-2011 Disk Controller Memory Board
BKSI-2020 Bit Rate Reduction Encoder Board
BKSI-2030 Bit Rate Reduction Decoder
Board
BKSI-2040 Intelligent Device Controller (IDC)
CPU Board
BKSI-2041 IDC Serial Link Connector Board
BKSI-2042 IDC Serial I/F Connector Board
BKSI-2043 IDC Parallel I/F Connector Board
BKSI-2044 IDC S-BUS/VS-BUS I/F Connector
Board
BKSI-2050 Video A to D Converter Board
BKSI-2050P Video A to D Converter Board
BKSI-2060 Video D to A Converter Board
BKSI-2060P Video D to A Converter Board
BKSI-2070 Audio A to D Converter Board
BKSI-2080 Audio D to A Converter Board
Optional Software
BZA-900 Multi-Channel Manager Software
BZA-90 Time shift transmission manager
software
BZA-81 Copy manager software
Specifications
Inputs/outputs
Input:
REF VIDEO INPUT connector (BNC
type) (1)
Active loop-through output connector
(1)
REMOTE:
D-sub 25-pin, female (1)
S-BUS (BNC type) (1)
Active loop-through output connector
(1)
General
Power requirements:
AC 100 to 240 V
610%, 50/60 Hz
Power consumption:
Max. 400 W
Operation temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions (W x H x D):
424 3 265 3 470 mm
(16 3/4 x 10 1/2 x 18 5/8 inches)
Mass:
Approx. 15 kg (33 lb 1 oz)
Features
*Forms the core of a FlexSys system *Can accommodate
up to eight BKSI Series boards *Continuous operation —
the redundant power supply unit can be hot-swapped to
ensure power supply to the boards *Equipped with ISR
(Interactive Status Reporting) *19-inch standard rack
mountable and six rack units height
134
Interface Processor Others
Interface Processor Others

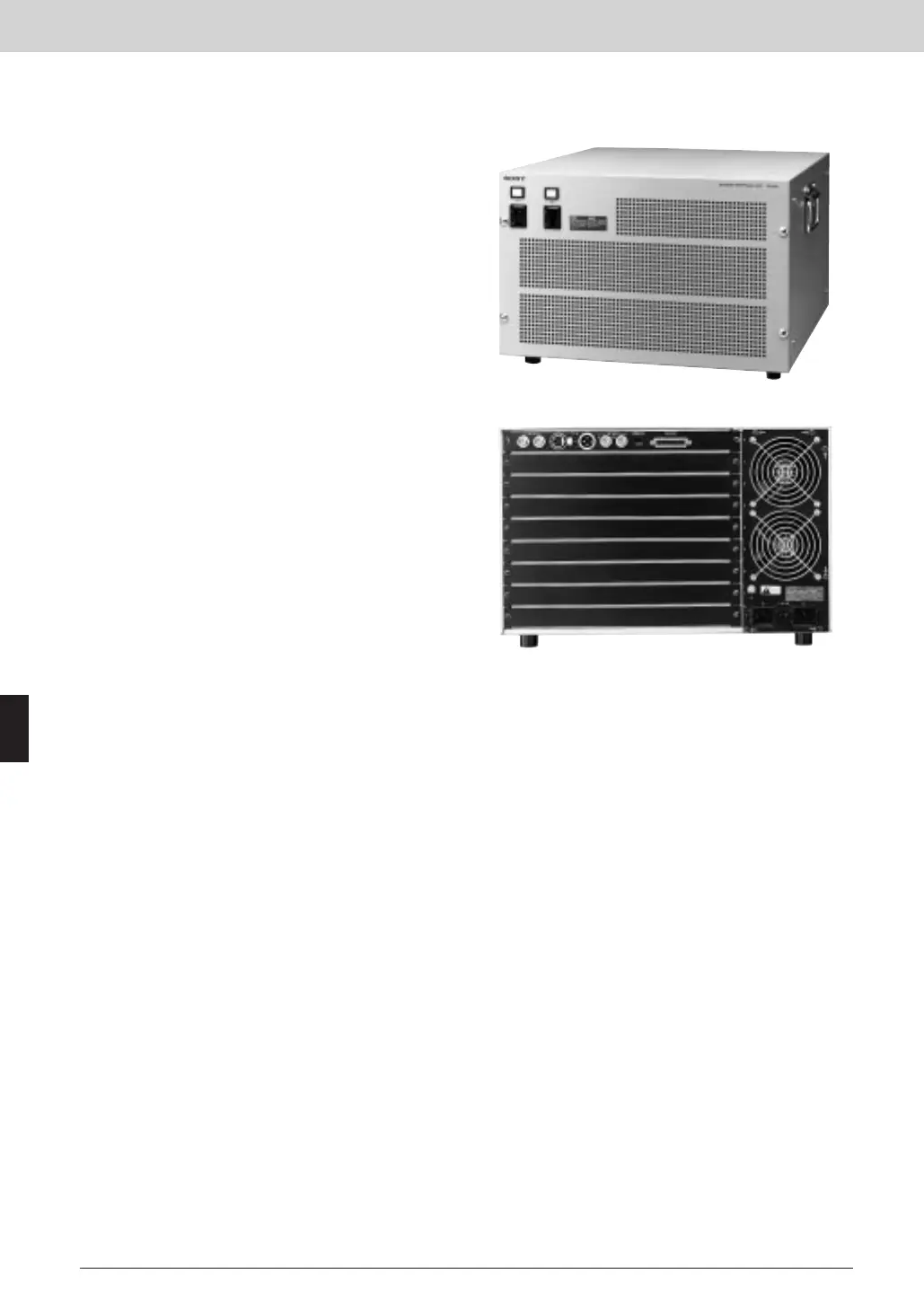

SIU-80 System Interface Unit
