Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Installation Guide (1)
Installation Manual (1)
The HKPF-SP003 distributes a multi-bit rate signal from
143 Mb/s to 1.5 Gb/s to six outputs. The input signal is
re-clocked before distribution.
Features
*Distribution of an SD or HD SDI signal *Re-clocking at
143 Mb/s, 177 Mb/s, 270 Mb/s, 360 Mb/s, 540 Mb/s, 1.5
Gb/s *Six distribution outputs *Auto bit rate detection
*Auto cable equalization of up to 100 m (at 1.5 Gb/s)
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
61
Interface Processor SP Series
Interface Processor SP Series

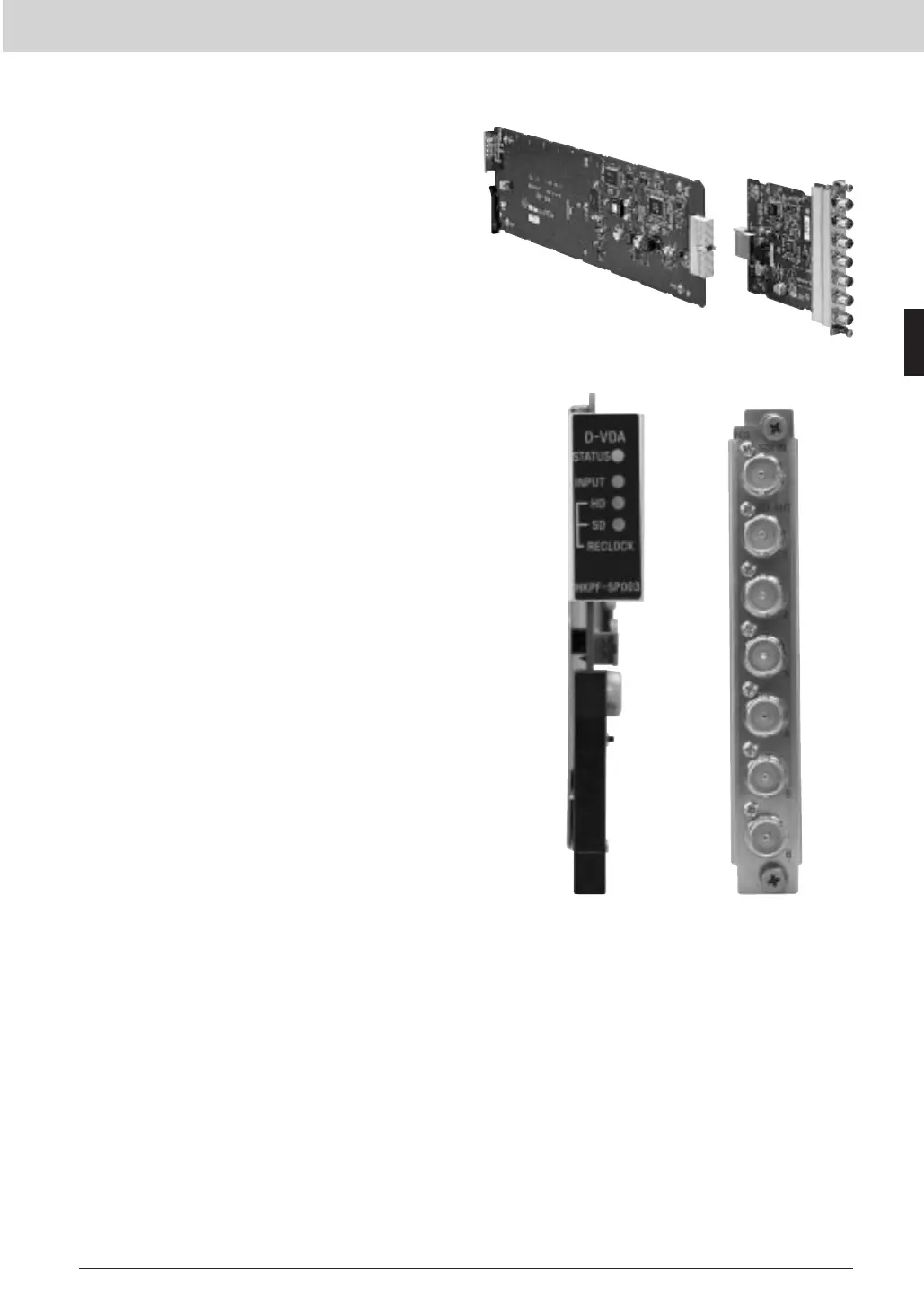

HKPF-SP003 Digital Video Distribution Amp
Front Panel Rear Panel
