Specifications
Inputs/outputs
Serial digital input:
SDI IN connector (BNC type) (1)
Data transfer rate:
143 Mb/s to 1.485 Gb/s
Input signal:
Scramble NRZI signal, 0.8 V p-p
Input return loss:
15 dB or more (5 MHz to 1.485 GHz)
Cable length:
100 m (when a 5C-FB cable (Fujikura)
or Belden1694 coaxial cable or the
equivalent is used)
Serial digital output:
SDI OUT connector (BNC type) (1)
Data transfer rate:
143 Mb/s to 1.485 Gb/s
Re-clocking:
143 Mb/s, 177 Mb/s, 270 Mb/s, 360
Mb/s, 540 Mb/s, 1.485/1.001 Gb/s,
1.485 Gb/s
Output amplitude:
0.8 Vp-p 610%
Rise/fall time:
270 ps or less
Output return loss:
15 dB or more (5 MHz to 1.485 GHz)
General
Power Requirements:
+12 V dc: 0.42 A
(supplied from a PFV-SP Series Signal
Processing Unit)
Operation temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (No condensation)
Dimensions
Board (H x W):
112.2 x 388.3 mm
(4 1/2 x 15 3/8 inches)
Connector Panel (H x D x W):
130 x 152.5 x 19 mm
(5 1/8 x 6 1/8 x 3/4 inches)
Mass
Board:
Approx. 200 g (7 oz)
Connector Panel:
Approx. 155 g (5 oz)
Service parts: Maintenance manual

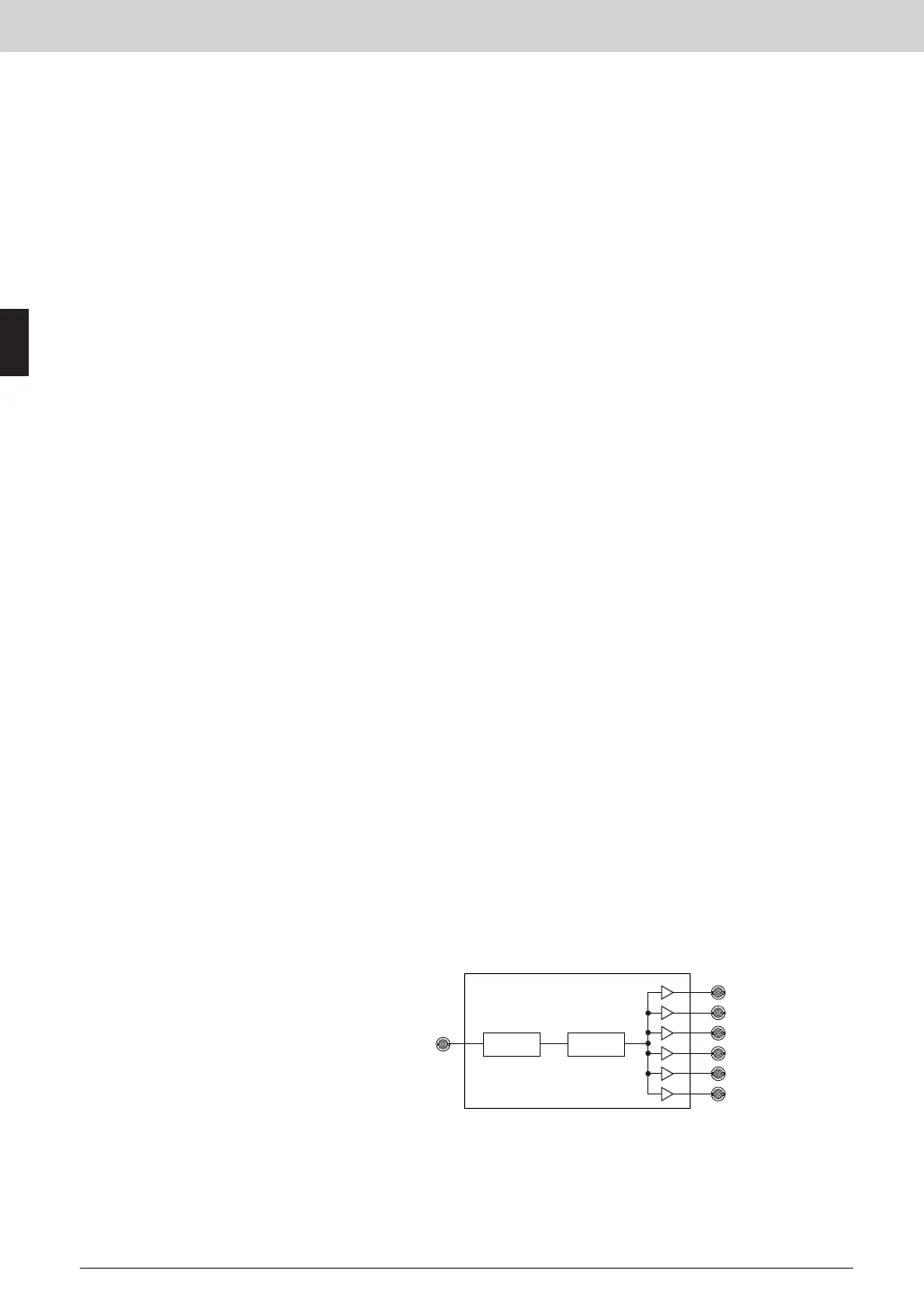

Equalizer Reclocker
HD/SD SDI IN
HD/SD SDI OUT 1
HD/SD SDI OUT 2
HD/SD SDI OUT 3
HD/SD SDI OUT 4
HD/SD SDI OUT 5
HD/SD SDI OUT 6
