Applicable Models
BVS-A3232 Analog Audio Routing Switcher
BVS-V3232 Analog Video Routing Switcher
DVS-RS1616 RS-422A Remote Routing
Switcher
DVS-TC3232 Time Code Routing Switcher
PFV-D300 Digital Video Interface Unit
PFV-D50A Digital Video Interface Unit
PFV-HD50A HD Digital Video Interface Unit

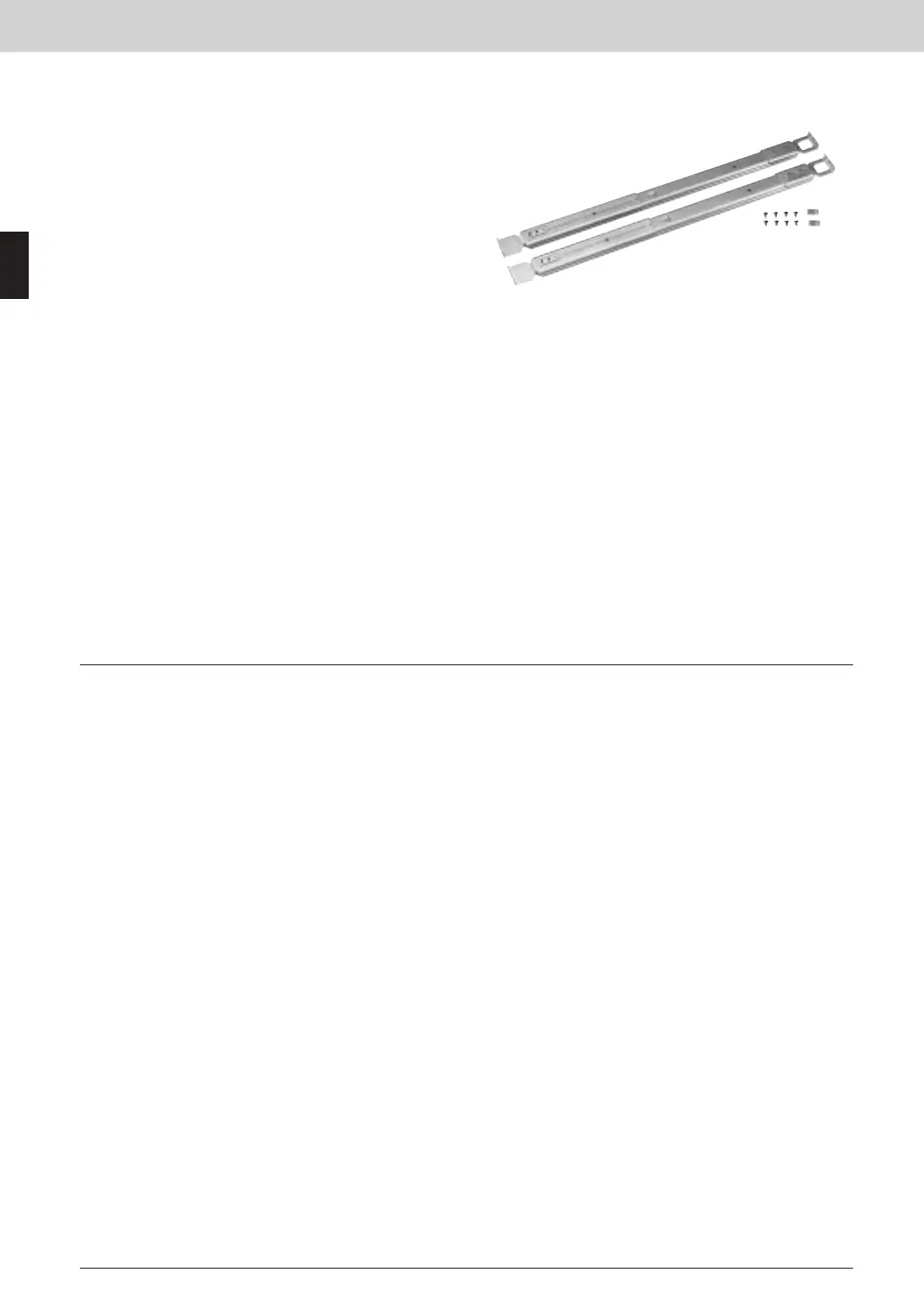

The RMM-30 is a rack mount rail designed to mount
audio/video equipment into a 19-inch standard rack, and
allow the equipment to be pulled forward for servicing
access. The RMM-30 consists of a pair of rails (each rail
having an inner and an outer rail), a stopper and a
bracket. The pair of inner rails are fixed to the unit, while
the pair of outer rails are fixed to the 19-inch rack. The
inner rails are then slid into the outer rails. Equipment
that satisfies the following conditions can be mounted in
an equipment rack that has a depth of 660 to 830 mm (26
to 32 3/4 inches):Mass—less than 40 kg (88 lb 3 oz)Width
between rail mounting surfaces —424 mm (16 3/4
inches)Includes appropriate fixing holes.
42
Common Accessories
Common Accessories
RMM-30 Rack Mount Rail
