Applicable Models
PFV-L10 Interface unit
Supplied Accessories
EX-731 Extension Board (Part
No.A-8322-598-A) (1)
The BKPF-L703A analog video distribution board accepts
an NTSC/PAL composite analog video signal and
distributes it to eight outputs. The output cable length can
be up to 300 m (Belden 8281, Fujikura 5C2V or
equivalent cable).
Features
* Distributes an NTSC/PAL composite analog input signal
to eight outputs * Differential input * Passive loop-through
output * Equalization for up to 300 m cable (Belden 8281,
Fujikura 5C2V or equivalent cable) * Clamping ON/OFF
selectable
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
89
Interface Processor L Series
Interface Processor L Series

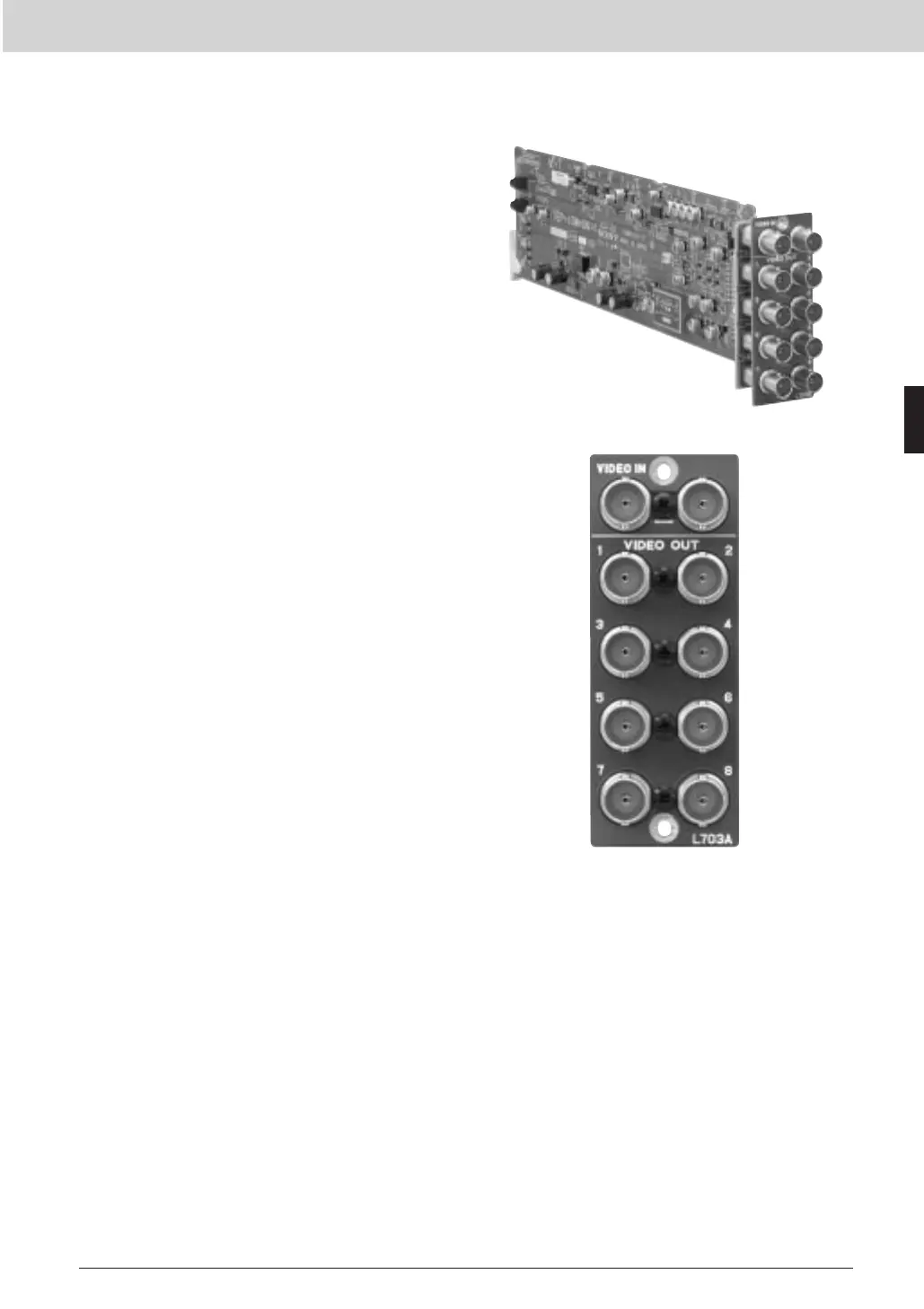

BKPF-L703A Analog Video Distribution Board
