33
Routing Switchers
Routing Switchers
Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Operation manual (1)
Installation manual (1)
CD-ROM (1) (BZR-20 Data Backup Program /
BZR-21 Router Remote Control Software /
BZR-IF810 S-BUS SUB-NET Control Software)
75 Ω terminations (3)
T-bridge (1)
Optional Board
HKSP-R81 Routing Switcher Backup CPU
Optional Software
BZR-2000 Routing Switcher Control Software
Specifications
Remote —
Remote 1: S-BUS
Connectors:
BNC type (3)
Transfer speed:
312 Kb/s / 1250 Kb/s
Signal level:
1.8 V+/- 0.3 V (75 Ω),
1.1 V+/- 0.3 V (75 Ω)
Remote 2: RS-422A
Connectors:
D-SUB 9-pin female (2)
Protocol:
CART++
Transfer speed:
38.4 Kb/s
The HKSP-R80 routing switcher controller is a
stand-alone primary station CPU board for Sony routing
switchers. With the HKSP-R80 installed in a PFV-SP
Series signal processing unit, a range of features is
provided in addition to the primary functions of S-BUS
SUB-NET control and conversion between S-BUS and
Ethernet LAN. For CPU redundancy, the HKSP-R81 is
available.
Features
*Provides primary station control or sub-net control in an
S-BUS system *Networking applications — Setting,
controlling and up/downloading files from PC with
BZR-2000 routing switcher control software via a
10/100Base-T Ethernet based LAN/Internet;
10/100Base-T Ethernet based remote control; Can be
accessed by up to 16 users; S-BUS and Ethernet
conversion for S-BUS logging function; Supports SNMP
Remote Maintenance protocol *HKSP-R81 routing
switcher backup CPU — Hot-swappable *RS-422A and
RS-232C connections *Supplied software — BZR-IF810
S-BUS SUB-NET Control Software; BZR-20 Routing
Switcher Backup Software; BZR-21 Router Remote
Control Software
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.

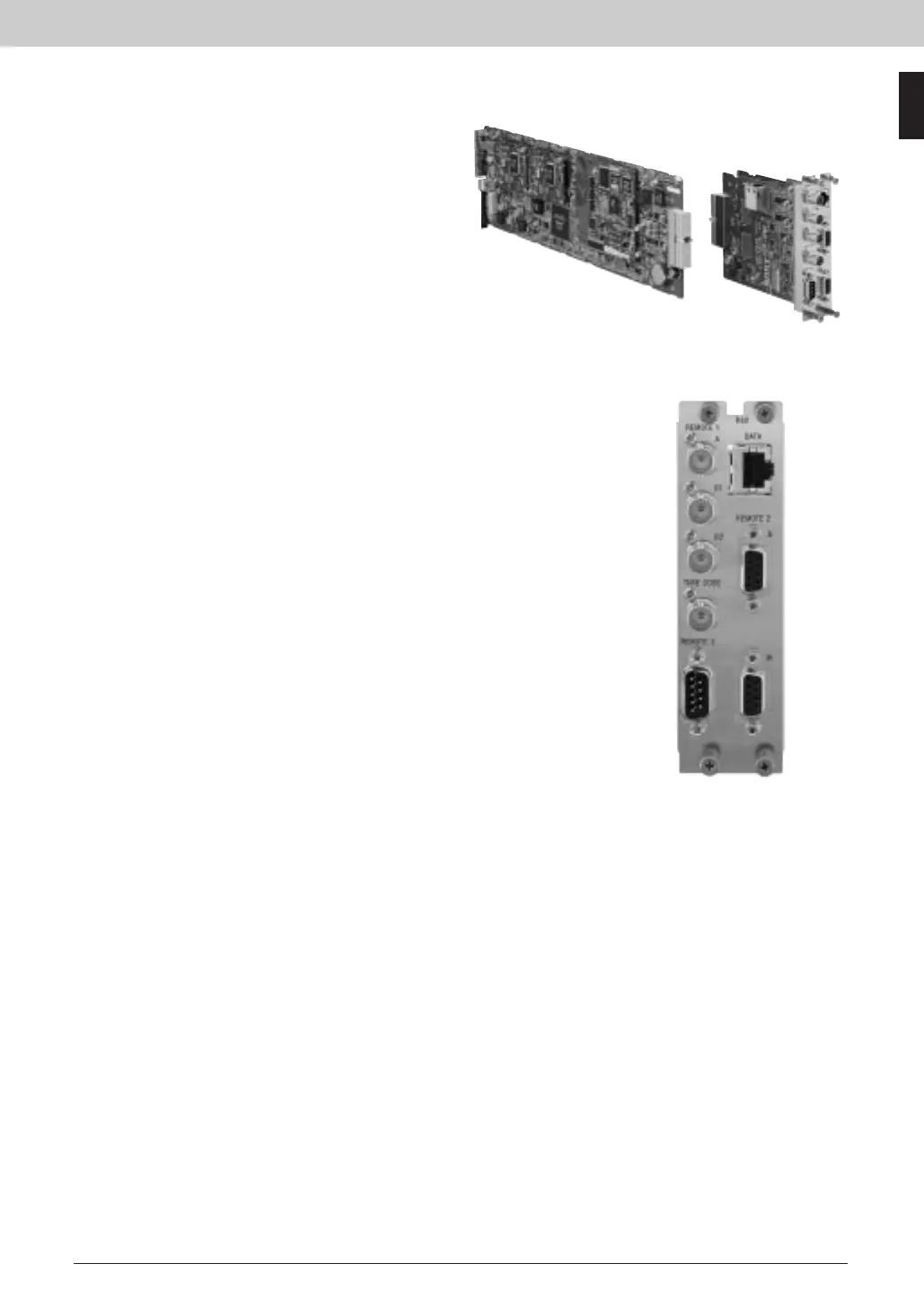

HKSP-R80 Routing Switcher Controller
Rear Panel
Remote 3: RS-2342C
Connector type:
D-SUB 9-pin male (1)
Transfer speed:
38.4 Kb/s
DATA LAN: Ethernet
Connector:
RJ-45 (1), 10BASE-T / 100BASE-TX
TIME CODE
Connector:
BNC type (1)
General
Power requirement:
12 V (Supplied from the PFV-SP Series
signal processing unit)
Power consumption:
1000 mA (HKSP-R80)
700 mA (HKSP-R81)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90%
Dimensions
Board (H x W):
112.2 x 388.3 mm
(4 1/2 x 15 3/8 inches)
Connector panel (W x H x D):
130 x 152.5 x 38 mm
(5 1/8 x 6 1/8 x 1 1/2 inches)
Mass:
Approx. 900 g (1 lb 16 oz)
*SGC_0011-0038 02.3.25 10:07 AM Page 33
