Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Installation Guide (1)
Installation Manual (1)
The HKPF-SP021 is an optical to electrical signal
converter with an operational frequency range of 143
Mb/s to 1.5 Gb/s. In combination with the HKPF-SP022
electrical to optical converter board, it extends the
transmission distance over an optical fiber to two km. The
HKPF-SP021 has one optical input and provides three
electrical digital outputs. The bit rate of the input signal is
detected automatically.
Features
*Used with HKPF-SP022 to extend transmission distance
of HD/SD SDI signals up to 2 km *Passes pathological
signal *Three distribution outputs *Re-clocking at 143
Mb/s, 177 Mb/s, 270 Mb/s, 360 Mb/s, 540 Mb/s and 1.5
Gb/s. *Auto bit rate detection *Status indication and
output
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
63
Interface Processor SP Series
Interface Processor SP Series
HKPF-SP021 Optical to Electrical Converter

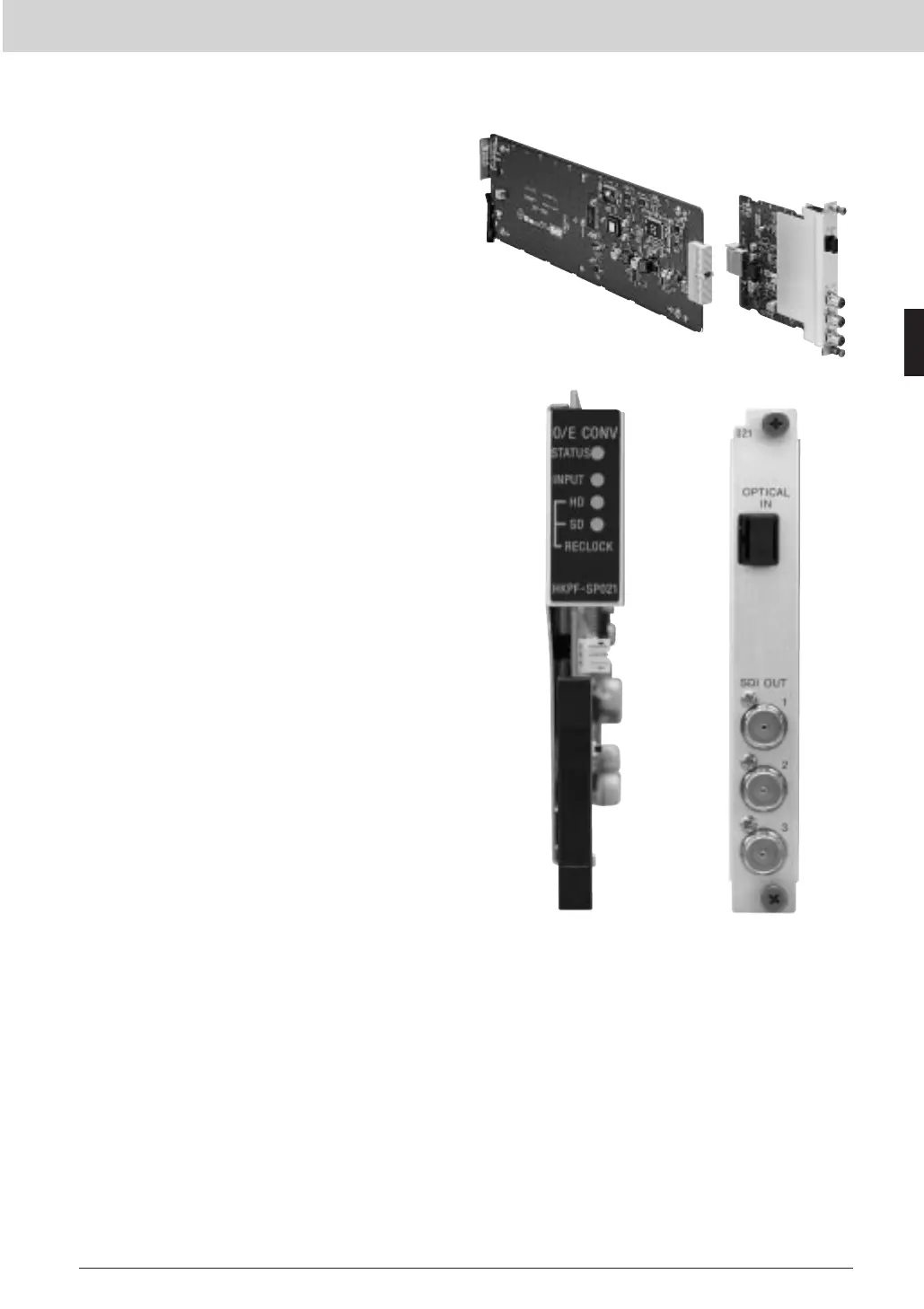

Front Panel Rear Panel
