Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Install guide (1)
Install manual (1)
Expansion harness (1)
The HKSP-061M digital video selector board features 8
inputs x 4 outputs and can route serial digital signals at
up to 1.5 Gb/s without any setting changes. A variety of
matrix configurations are available.
Features
* Multi bit-rate transmission; Auto bit-rate detection, SD
SDI signals at 143, 177, 270, 360 and 540 Mb/s, HD SDI
signal at 1.5 Gb/s *Auto re-clocking function; Reduces
output signal jitter, Automatic switching with bit rate of
input signal, Re-clocking on/off switchable *Auto cable
equalization of up to 100 m of coaxial cable *Excellent
configuration flexibility for a wide range of applications;
One 8 x 4 matrix or one 8 x 2 matrix and two distribution
outputs, Two 4 x 2 matrices or two 4 x 1 matrices and two
distribution outputs, Four 2 x 1 matrices, Expandable to
16 x 8 by cascade connecting two units *Powerful matrix
control function via Sony S-BUS remote interface; S-BUS
connections with BKS-R Series control panels to form a
simple primary station for signal switching *Synchronized
switching with external reference signal; Provides both
black burst and tri-level sync signal *Retains crosspoint
data to restore setting after power-off *Remote status
monitoring, plus local monitoring with front panel LED
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
48
Interface Processor SP Series
Interface Processor SP Series
HKSP-061M 8 x 4 Digital Video Selector

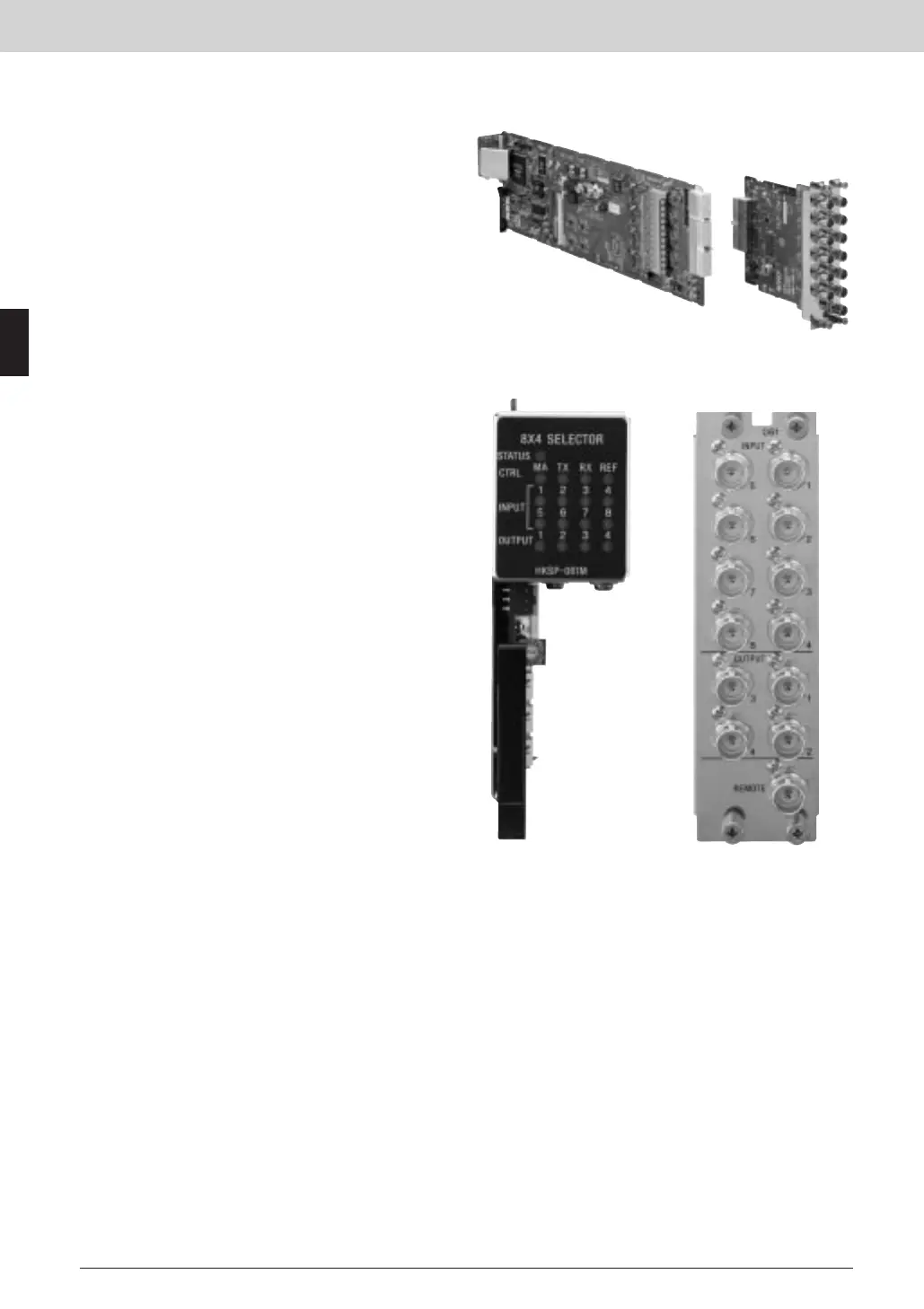

Front Panel Rear Panel
