Specifications
Inputs/outputs
Video standard:
1035/60, 59.94i
1080/60, 59.94i, 50i
1080/30PsF, 29.97PsF, 25PsF, 24PsF,
23.976PsF
HD component serial digital signal (HD
SDI):
Conforming to SMPTE-292M
1.485/1001, 1.485 Gb/s
Serial digital video input:
SDI IN connector (BNC type) (1)
Reference input:
REF IN connector (BNC type) (1)
0.43 Vp-p
610%, 75 Ω
Black Burst or Tri-level sync signal
Serial digital video outputs:
SDI OUT connector (BNC type) (3)
0.8 Vp-p 610%, 75 Ω
Reference output:
Passive loop-through output connector
(BNC type) (1)
GPI:
REMOTE connector (Mini D-sub 15-pin)
(1)
General
Power requirements:
+12 V DC: 1.7 A
(Supplied from PFV-SP Series Signal
Processing Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x W):
112.2 x 388.3 mm
(4 1/2 x 15 3/8 inches)
Connector Panel (H x D x W):
130 x 152.5 x 38 mm
(5 1/8 x 6 1/8 x 3/4 inches)
Mass
Board:
Approx. 680 g (1 lb 8 oz)
Connector Panel:
Approx. 300 g (11 oz)
Service part: Maintenance manual

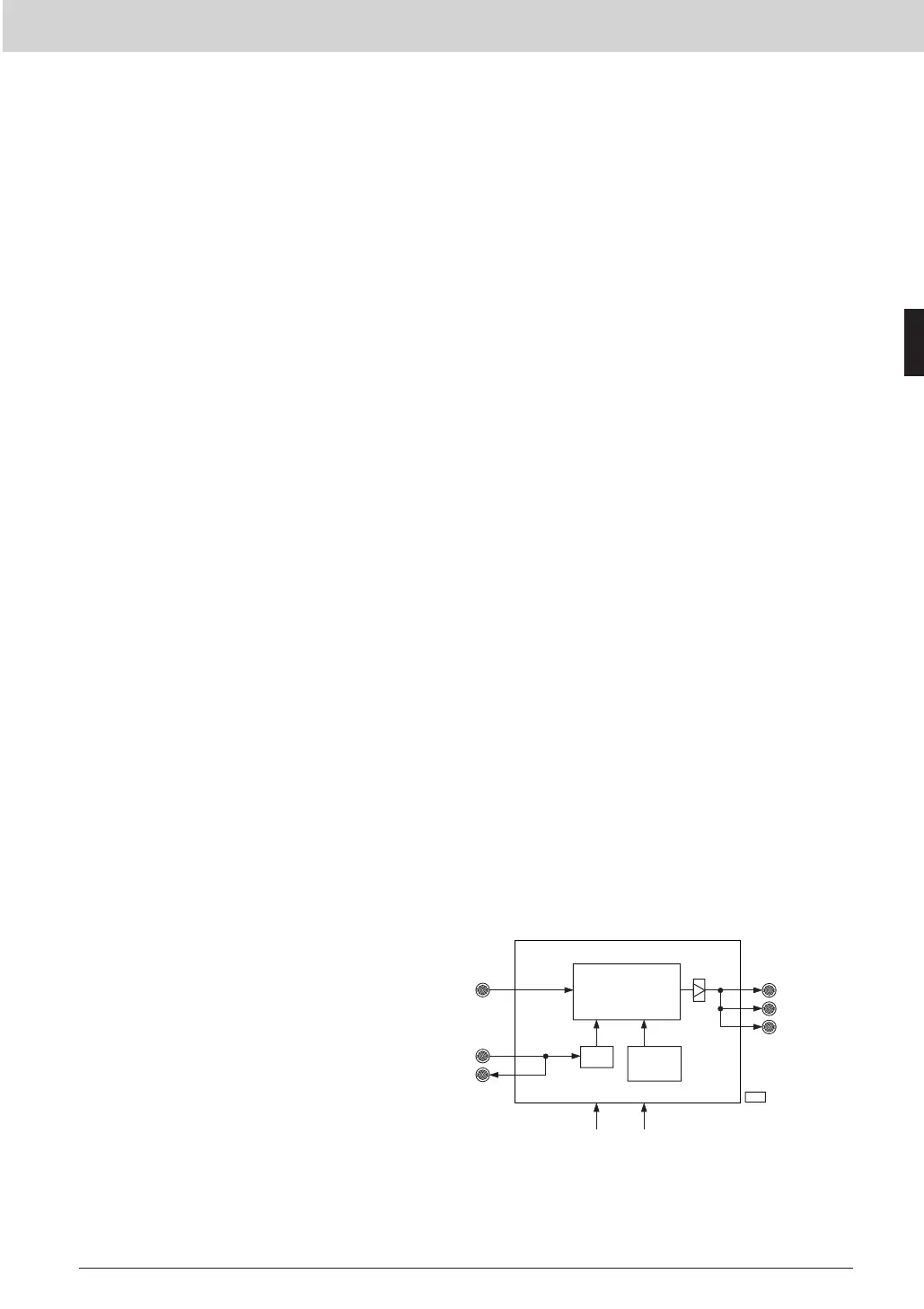

HD SDI OUT 1
HD SDI OUT 2
HD SDI OUT 3
REMOTE
CPU BusREF
HD SDI IN
REF IN
PASSIVE LOOP-THROUGH
Frame Sync
Line Sync
Delay Line
CLK Frame
Memory
47
Interface Processor SP Series
Interface Processor SP Series
