Supplied Accessories
Operation manual (1)
Installation manual (1)
Optional Boards
HKPF-SP003 Digital Video Distribution Amp
HKPF-SP021 Optical to Electrical Converter
HKPF-SP022 Electrical to Optical Converter
HKSP-008HD HD Frame/Line Synchronizer
HKSP-061M 8 x 4 Digital Video Selector
HKSP-105 HD Audio/Video Multiplexer Board
HKSP-106 HD Audio/Video Demultiplexer
Board
HKSP-1125 HD Up-converter Board
HKSP-300 Processing Module Controller
HKSP-313 HD Color Corrector Board
HKSP-525 Down Converter Board
HKSP-R80 Routing Switcher Controller
HKSP-R81 Routing Switcher Backup CPU
UCP-8060 Universal Control Panel
Optional Peripherals
HK-PSU03 Backup Power Supply Unit
Specifications
Inputs/outputs
Remote:
S-BUS remote connector (BNC type) (1)
SYNC inputs:
HD tri-level sync or black burst signal
(BNC type) (2) (with loop-through
outputs)
Status output:
STATUS OUT (mini D-sub 15-pin,
female) (1)
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Current drain
100 V AC: Max 3.5 A, 240 V AC: Max
1.5 A
Power supply capacity:
+12 V DC: Max 18.7 A
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions (W x H x D):
440 x 550 x 132.4 mm
(5 1/4 x 21 3/4 x 17 3/8 inches)
Mass:
Approx. 10 kg (22 lb 1 oz) (Not
including optional boards)
Service part: Maintenance manual
The PFV-SP3300 is a 3 RU signal processing unit that
accommodates up to 17 processing modules that are
compliant with multi-format and multi bit-rate operation. It
has two reference inputs for SD and HD signals. With an
HKSP-300 processing module controller installed, PFV-SP
Series processing boards can be managed via a LAN
100Base-T Ethernet
Features
*Compact and high-density mounting frame for HKPF-SP
and HKSP processing modules — Compact 3 RU height
size frame, fitting a 19-inches rack unit; Houses up to 17
HKPF-SP/HKSP Series modular boards; Internal
forced-air cooling *Accommodates a range of modules for
multi-format, multi bit-rate compliant applications — Ideal
migration path from SD to HD; Both HD tri-level sync and
black burst signal can be used *Networking applications
— Enables the setting, controlling, and up/downloading of
the set-up data of other HKSP function boards in a
PFV-SP Series signal processing unit when used in
combination with a UCP-8060 universal control panel
connected via a Ethernet 100Base-TX based network
(When HKSP-300 installed) *High reliability and ease of
maintenance — Optional hot-swappable back-up power
supply; Front panel status of power supply units, frame
and module boards; Rear panel STATUS OUT connector
45
Interface Processor SP Series
Interface Processor SP Series

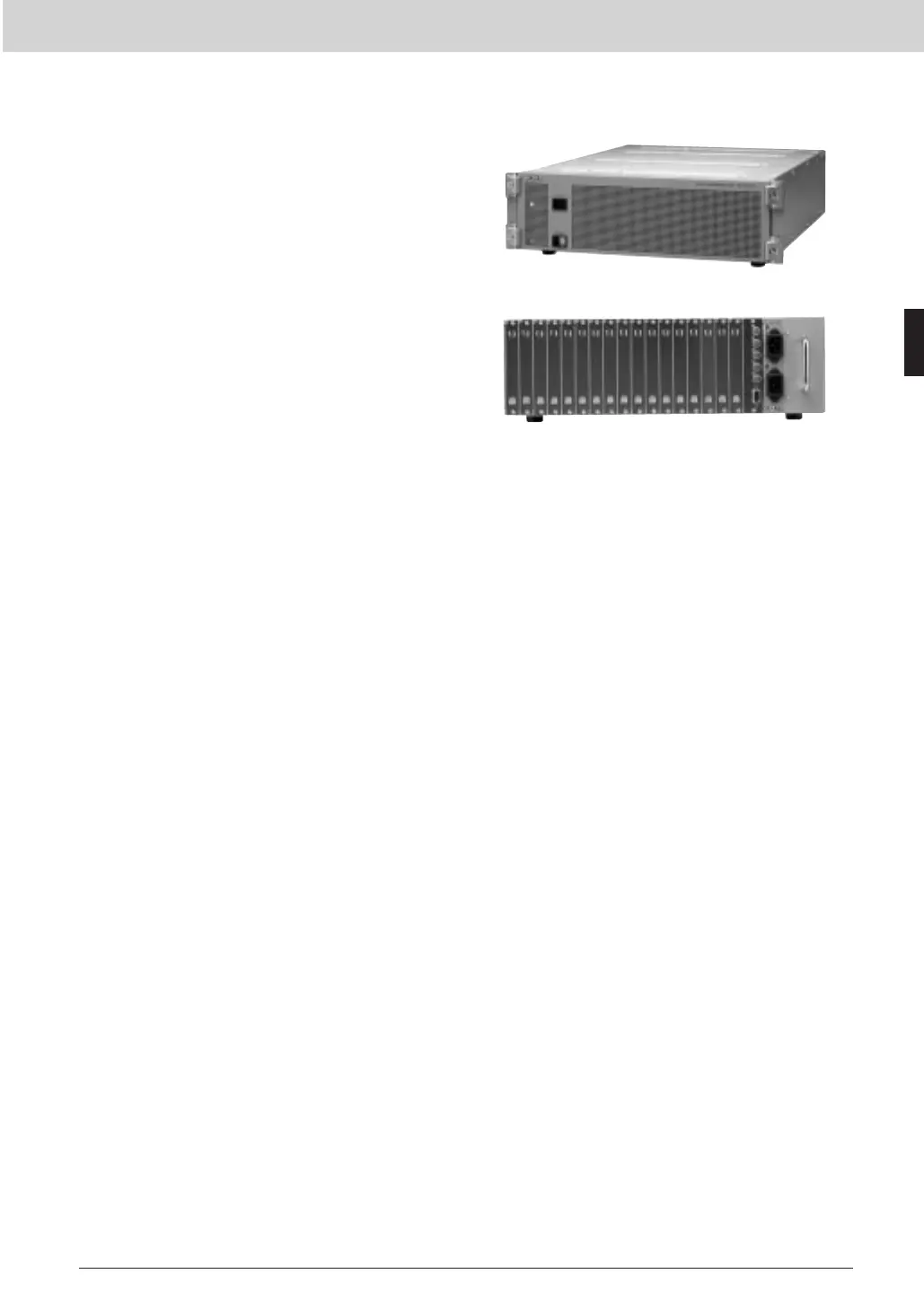

PFV-SP3300 Signal Processing Unit
Rear Panel
