Applicable Models
PFV-L10 Interface unit
Supplied Accessories
EX-731 Extension Board (Part No.A-8322-598-A) (1)
Specifications
Inputs/outputs
Serial digital input:
SDI IN connector (BNC type) (1)
0.8 Vp-p-10%, 75 Ω
4:2:2 component serial digital signal
Serial digital outputs:
Active-through output connector (BNC type)
(1)
0.8 Vp-p-10%, 75 Ω
4:2:2 component serial digital video signal
Analog outputs:
ANALOG OUT Y/G, B-Y/B, R-Y/R connectors
(BNC type) (2 each)
Analog component video signals or RGB
signals (selectable with on-board switch)
RGB signals:
R: 0.7 Vp-p, 75 Ω
G: 0.7 Vp-p, 75 Ω
B: 0.7 Vp-p, 75 Ω
Defined with the color bar signal 100/0/100/0.
YUV (CCIR) signals:
Y: 1.0 Vp-p, 75 Ω (incl. Y sync 300 mV)
B-Y: 0.7 Vp-p, 75 Ω
R-Y: 0.7 Vp-p, 75 Ω
Defined with the color bar signal 100/0/100/0.
YUV (Betacam 7.5% setup) signals:
Y: 1.0 Vp-p, 75 Ω (incl. Y sync 286 mV)
B-Y: 0.7 Vp-p, 75 Ω
R-Y: 0.7 Vp-p, 75 Ω
Defined with the color bar signal
100/7.5/77/7.5.
YUV (Betacam 0% setup) signals:
Y: 1.0 Vp-p, 75 Ω (incl. Y sync 286 mV)
B-Y: 0.756 Vp-p, 75 Ω
R-Y: 0.756 Vp-p, 75 Ω
Defined with the color bar signal 100/0/75/0.
Sync signal outputs:
SYNC connectors: BNC type (2)
2.0 Vp-p-10%, 75 Ω
Data transmission
Channel coding:
Scrambled NRZI
Transmission speed:
Input: 270 Mb/s
Amplitude:
0.8 Vp-p-10%
Cable length:
200 m max. (when using a Belden 8281,
Fujikura 5C2V or equivalent coaxial cable)
Digital input/output return loss:
15 dB or more (5 MHz to 270 MHz)
Signal format:
4:2:2 component serial digital video signal
conforming to SMPTE259M
Serial digital interface
Video characteristics
Sampling frequency:
Y: 13.5 MHz R-Y, B-Y: 6.75 MHz
Digitization:
10 bits
Bandwidth:
Y: 5.75 MHz R-Y, B-Y: 2.75 MHz
Y, R-Y, B-Y phase error:
20 ns or less
K factor (2T pulse):
1% or less
Signal-to-noise ratio:
60 dB or more
System delay:
Approx. 3.7 µs
EDH:
Conforms to SMPTE PR165
General
Power requirements:
+5 V DC: 1.0 A
(Supplied from the PFV-L Series Interface
Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
Approx. 140 g (5 oz)
Connector panel:
Approx. 120 g (4 oz)
Service parts: Extension board (Part No.A-8322-598-A),
Maintenance manual
SDI IN
ACTIVE LOOP-THROUGH
525/625
COMPONENT
DIGITAL VIDEO
Y/G OUT 1
B-Y/B OUT 1
R-Y/R OUT 1
SYNC OUT 1
Y/G OUT 2
B-Y/B OUT 2
R-Y/R OUT 2
SYNC OUT 2
525/625 COMPONENT
ANALOG VIDEO
(R/G/B or Y/R-Y/B-Y)
D/AEDH
The BKPF-L602C is a high quality yet cost effective video
D to A converter board which converts a 525 or 625-line
component serial digital video signal to a component
analog video signals. Y, B-Y, R-Y or RGB signals can be
selected for outputs. Two distribution outputs of the
converted signal are provided.
Features
* Converts a 525/625 component serial digital signal to a
525/625 component analog signal * 10-bit conversion and
signal path * 525/625 component serial digital input with
active-through outputs * Two distribution outputs of CCIR,
Betacam with 7.5% or 0% setup or RGB signals * Two
Sync outputs * Automatic 525/625-line detection * EDH
monitoring * SDI input presence lamp
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
72
Interface Processor L Series
Interface Processor L Series

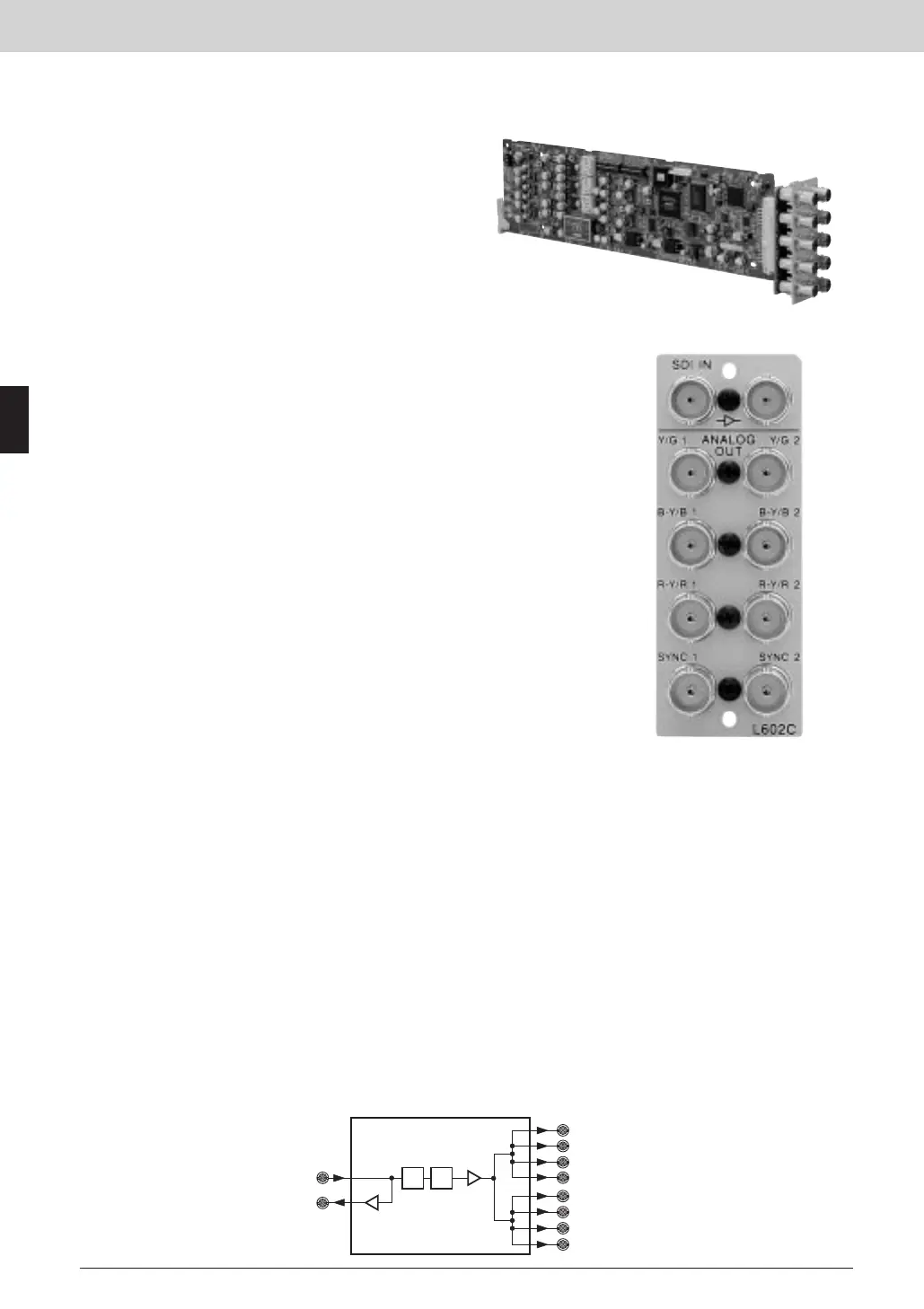

BKPF-L602C Video D to A Converter Board
Rear Panel
