Supplied Accessories
Operation manual (1)
Installation manual (1)
Optional Boards
HKPF-SP003 Digital Video Distribution Amp
HKPF-SP021 Optical to Electrical Converter
HKPF-SP022 Electrical to Optical Converter
HKSP-008HD HD Frame/Line Synchronizer
HKSP-061M 8 x 4 Digital Video Selector
HKSP-105 HD Audio/Video Multiplexer Board
HKSP-106 HD Audio/Video Demultiplexer
Board
HKSP-1125 HD Up-converter Board
HKSP-300 Processing Module Controller
HKSP-313 HD Color Corrector Board
HKSP-525 Down Converter Board
HKSP-R80 Routing Switcher Controller
HKSP-R81 Routing Switcher Backup CPU
UCP-8060 Universal Control Panel
Optional Peripherals
HK-PSU01 Power Supply Unit
Specifications
Inputs/outputs
Remote:
S-BUS remote connector (BNC type) (1)
SYNC inputs:
HD tri-level sync or black burst signal
(BNC type) (2) (with loop-through
outputs)
Status output:
STATUS OUT
(mini D-sub 15-pin, female) (1)
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Power supply capacity:
+12 V DC: Max 4.4 A
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions (W x H x D):
440 x 43.2 x 550 mm
(21 3/4 x 1 3/4 x 17 3/8 inches)
Service part: Maintenance manual

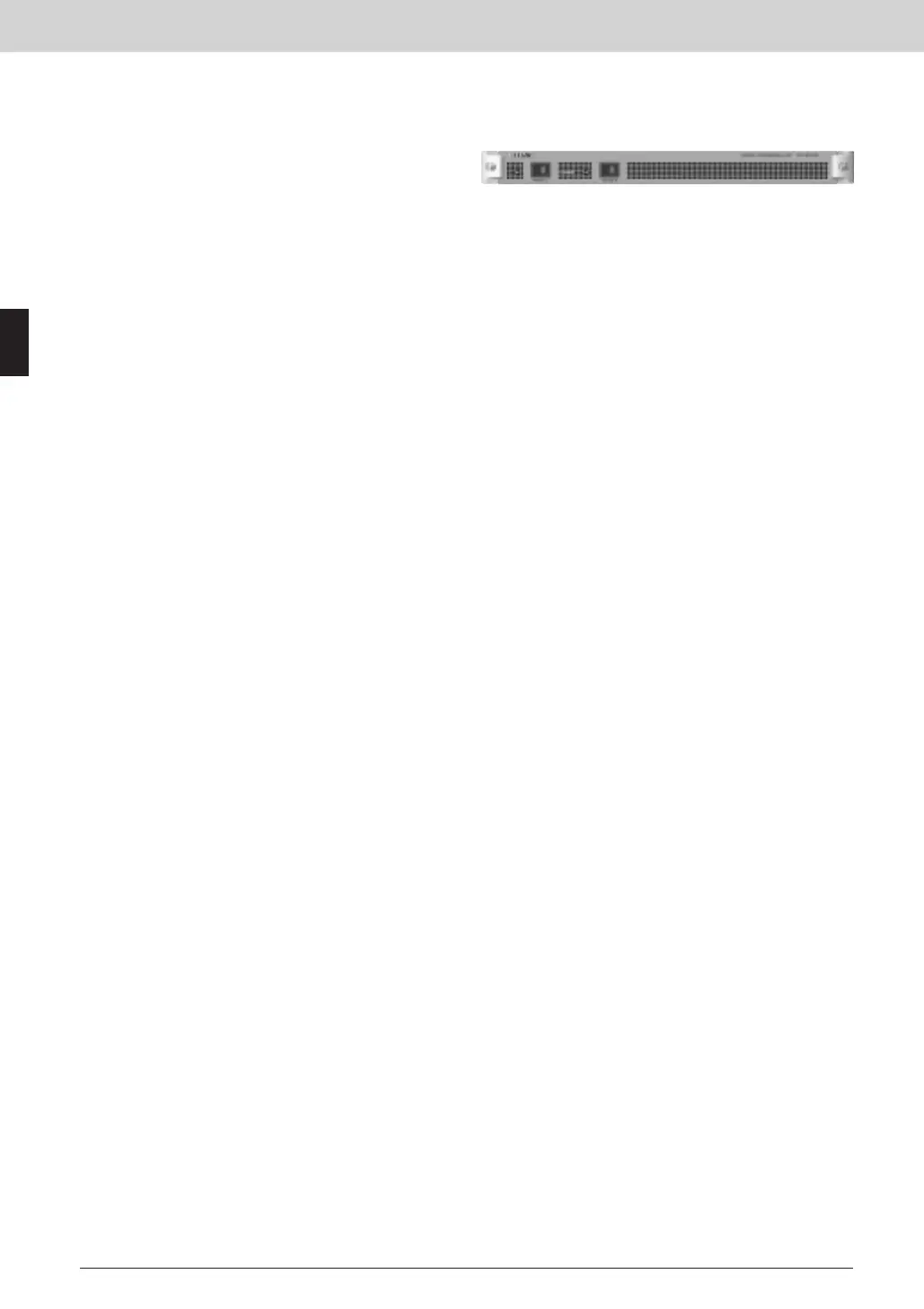

The PFV-SP3100 is a 1RU signal processing unit that
accommodates up to four HKSP/HKPF-SP Series function
boards with a redundant power supply. With an HKSP-300
processing module controller installed, PFV-SP Series
processing boards can be managed via a LAN 100Base-T
Ethernet network.
Features
*Compact, high-density mounting frame for HKSP and
HKPF-SP function boards *1RU high frame, fitting a
19-inches rack unit — Houses up to 4 HKSP/HKPF-SP
Series function boards; Internal forced-air cooling
*Accommodates a range of modules for multi-format, multi
bit-rate compliant applications — Ideal migration path
from SD to HD; Both HD tri-level sync and black burst
signal can be used *Networking applications — Enables
the setting, controlling, and up/downloading of the set-up
data of other HKSP function boards in a PFV-SP Series
signal processing unit when used in combination with a
UCP-8060 universal control panel connected via a
Ethernet 100Base-TX based network (When HKSP-300
installed) *Reference input to supply reference signal to
installed function boards *High reliability and ease of
maintenance — Optional hot-swappable back-up power
supply; Front panel status indication of power supply
units, frame and module boards; Rear panel Status Out
connector
44
Interface Processor SP Series
Interface Processor SP Series
PFV-SP3100 Signal Processing Unit
