Applicable Models
PFV-SP3100 Signal Processing Unit
PFV-SP3300 Signal Processing Unit
Supplied Accessories
Installation manual (1)
Installation guide (1)
The HKSP-008HD frame/line synchronizer board
synchronizes the input HDTV video signal to an external
reference. One equalized input, three distribution outputs
and one black burst or tri-level sync reference input with
passive loop-through output are provided. Three types of
operation mode are selectable. When an error in the input
signal is detected, a variety of freeze functions are
available.
Features
*HD frame/line synchronizer with three modes of
operation — Frame Synchronization mode; Line
Synchronization mode; Delay Line mode *Supports a
wide range of video standards — 1080/60i, 59.94i, 50i;
1035/60i, 59.94i; 1080/30P, 29.97P, 25P, 24P, 23.976P
*Freeze function when an error is detected in the input
signal — Auto/Manual Freeze selectable; Field/Frame
Freeze selectable *Passes eight channels of embedded
audio and other ancillary data on VBI — Automatically
mutes embedded audio when picture frozen; 20-bit audio
sample rate conversion in Frame Synchronization mode;
Variable audio delay in Frame Synchronization mode
*H/V phase adjustment available in Frame
Synchronization mode *By-pass mode selectable
*Built-in test Signal Generator *Local and remote status
monitoring and set up *Remotely controllable from an
optional HKDV-503/900 Digital Video Controller via a
RS-422 (GPI also provided) or UCP-8060 Universal
Control Panel (Ethernet 100BASE-TX)
The HKPF-SP/HKSP function boards install in PFV-SP Series Signal
Processing Units in any combination with other HKPF-SP/HKSP function
boards.
46
Interface Processor SP Series
Interface Processor SP Series

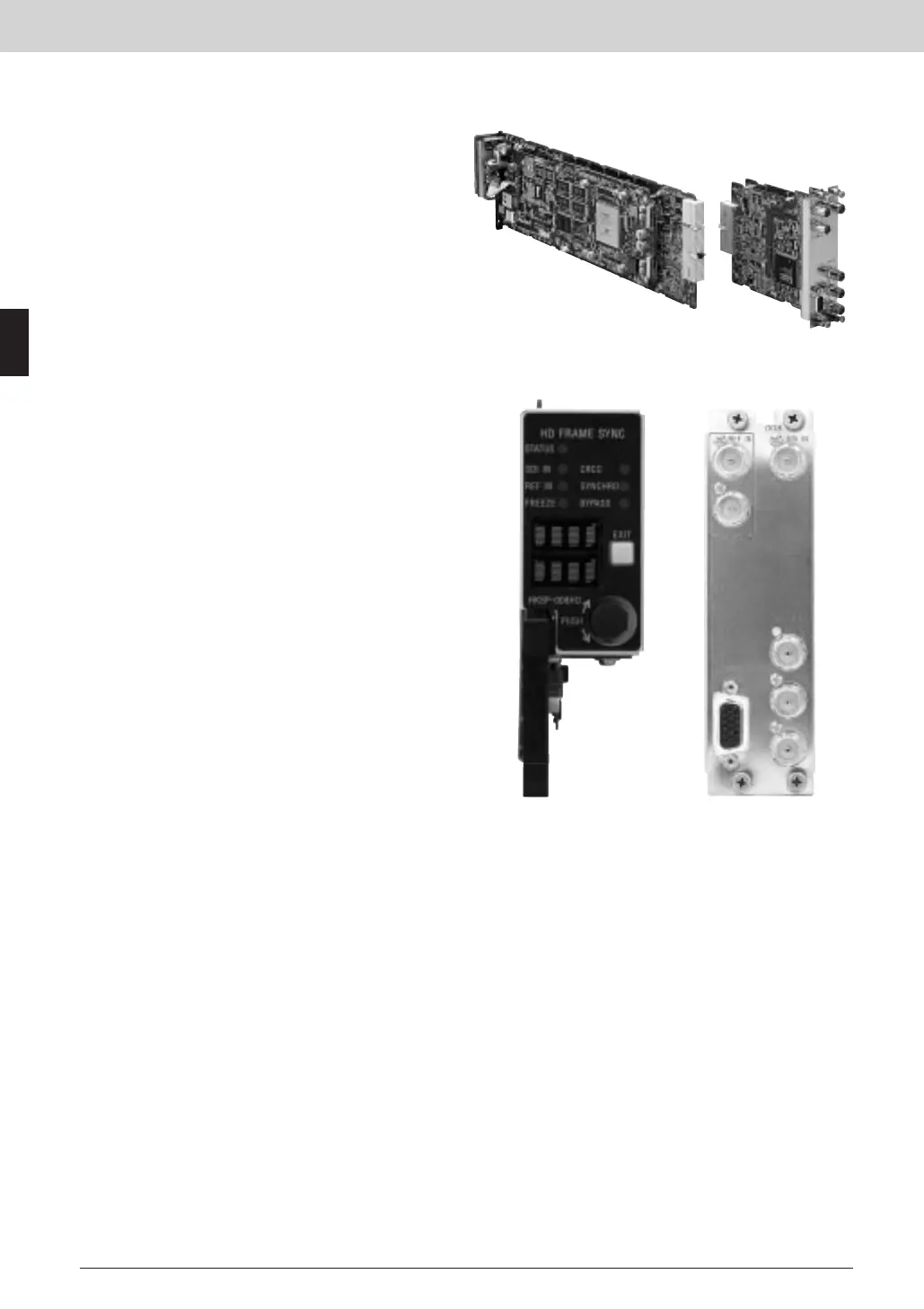

HKSP-008HD HD Frame/Line Synchronizer
Front Panel Rear Panel
