Supplied Accessories
Operation manual (1)
Installation manual (1)
Maintenance manual (1)
75 Ω terminators (3)
T-bridge (B) (1)
D-sub connector screws (2)
Audio connectors (32)
Optional Accessories
RCC-G cables 9-pin/9-pin Cable
RMM-30 Rack Mount Rail
Optional Peripherals
BKS-R1608 Universal Control Unit
BKS-R1617 Multi-Display Control Unit
BKS-R1618 Universal Control Unit
BKS-R3216 Multi-BUS Control Unit
BKS-R3219 Universal Control Unit
BKS-R3220 X-Y Control Unit
BKS-R3240A X-Y Control Unit
BKS-R3242A X-Y Control Unit
BKS-R3248A X-Y Control Unit
BKS-R3280 Single Status Display Unit
BKS-R3281 Single Status Display Unit
Specifications
Inputs/outputs —
Reference video signal inputs:
REF IN connectors (BNC type) (2), high
impedance, analog audio signal, with
loop-through output
Remote control connectors
REMOTE 1 A, B, C:
S-BUS (BNC type) (4), 47 kΩ input
Data transfer method: BI-PHASE
SPACE
Data transfer rate: 312.5 kb/s
Cable length: 500 m max. (When
using a Belden 8281, Fujikura 5C2V
or equivalent coaxial cable )
Checksum: HDLC CRC-CCIT
x 16 + x 12 + x 5 + 1
REMOTE 2:
Complies with RS-422A signal
standard with loop-through output
D-sub 9-pin (2), 100 Ω/10 kΩ
Data transfer rate: 38.4 kb/s
REMOTE 3:
Complies with RS-232C signal
standard for connecting a terminal
D-sub 25-pin
(Fixed with M2.6 screws) (1)
Terminal:
9600 b/s, DTR control, 8-bit, no parity,
no check, 1 stop bit
ISR:
9600 b/s, 7-bit, ODD parity, 1 stop bit
AC power input:
3-pin AC IN connectors (2)
Audio signals
Audio signal inputs:
6-pin connector (16) for 32 inputs
Audio signal outputs:
6-pin connector (16) for 32 outputs
Input impedance:
100 kΩ/600 Ω (selectable)
Standard input/output level:
+4 dBm
Maximum input level:
+24 dBm
Maximum output level:
+24 dBm (600 Ω load, balanced)
Frequency response:
60.1 dB
(20 kHz to 20 kHz, 1 kHz+4 dBm)
Distortion:
0.01% (20 Hz to 20 kHz, with +24 dBm
output)
Crosstalk:
Less than -80 dB (20 Hz to 20 kHz, with
+24 dBm output)
Signal-to-noise ratio:
More than 85 dB
(30 kHz LPF, nominal)
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Current consumption:
1.2 to 0.6 A
(With all optional boards installed)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Dimensions (W x H x D):
424 x 132 x 500 mm
(16 3/4 x 5 1/4 x 19 3/4 inches)
Mass:
Approx. 16 kg (35 lb 4 oz)
(With all optional boards installed)
The BVS-A3232 is a 32 inputs and 32 outputs routing
switcher for analog audio signals. It can also operate as
16 x 16 two-channel switcher for stereo applications.
Router control is by S-BUS and RS-422A. S-BUS is a
highly sophisticated system, providing communication and
tally management with BKS-R Series routing switcher
control units, Sony DVS Series video switchers and so on.
S-BUS also interfaces with third-party equipment. Among
the many features that S-BUS supports are multi-level
working, signal breakaway, phantom operation of
crosspoints and tie-line management. An RS-232C port
provides a PC interface. Router data is maintained in
memory by a 24-hour battery backup. The BVS-A3232
mounts into a standard 19-inch rack and is 3U high.
Features
* 32 x 32 switching matrix for analog audio signals *
Transformer I/O * S-BUS and RS-422A control * Backup
power supply and CPU options
21
Routing Switchers
Routing Switchers

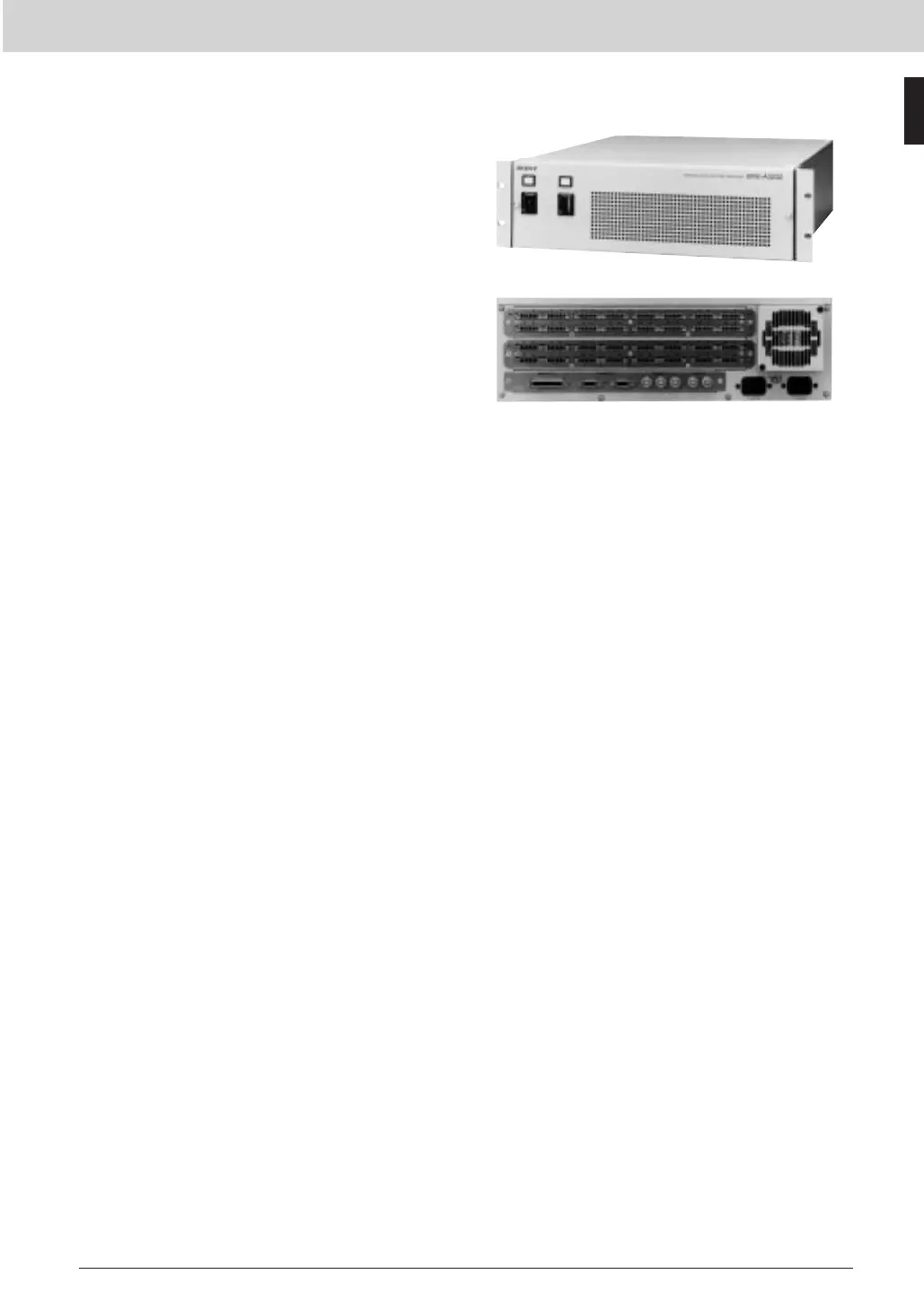

BVS-A3232 Analog Audio Routing Switcher
Rear Panel
