Specifications
Inputs/outputs
Digital video signal input:
HD SDI IN connector (BNC type) (1)
HD serial digital video signal
conforming to SMPTE291M/292M/299M
Input impedance:
75 Ω, unbalanced
Input return loss:
15 dB or more (5 M to 1.5 GHz)
Transmission loss:
Less than 20 dB
Cable length:
100 m max. (when using a 5C-FB
coaxial cable)
Data rate:
1.4835 or 1.485 Gb/s
Reference inputs:
Supplied through the REF IN
connectors on the PFV-SP Series signal
processing units
REF IN connectors (BNC type) (2),
Black Burst
Digital video outputs:
D1 SDI OUT 1, 2, 3 (BNC type) (1 each)
525/625 component serial digital video
signal conforming to SMPTE259M
Output impedance:
75 Ω, unbalanced
Amplitude:
800 mVp-p 610%
Output return loss:
15 dB or more (5 M to 270 MHz)
Cable length:
200 m max. (when using a 5C-2B
coaxial cable)
Data rate:
270 Mb/s
Analog video output:
Monitor output connector (BNC type) (1)
NTSC/PAL composite video signal
Output impedance:
75 Ω, unbalanced
Amplitude:
1.0 Vp-p
System delay:
90 H/1 video frames selectable
General
Power supply:
+12 V DC: 1.0 A
Power consumption:
Approx. 12W
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90%
Dimensions:
Board (H x W):
112.2 x 388.3 mm
(4 1/2 x 15 3/8 inches)
Connector panel (H x D x W):
130 x 152.5 x 19 mm
(5 1/8 x 6 1/8 x 25/35 inches)
Mass:
Board:
Approx. 1500 g (3 lb 5 oz)
Connector panel:
Approx. 500 g ( 1 lb 2 oz)
Service parts: Extension boards (EX-834; Part No.
A-8327-357-A and EX-833; Part No.
A-8327-356-A), Maintenance manual
56

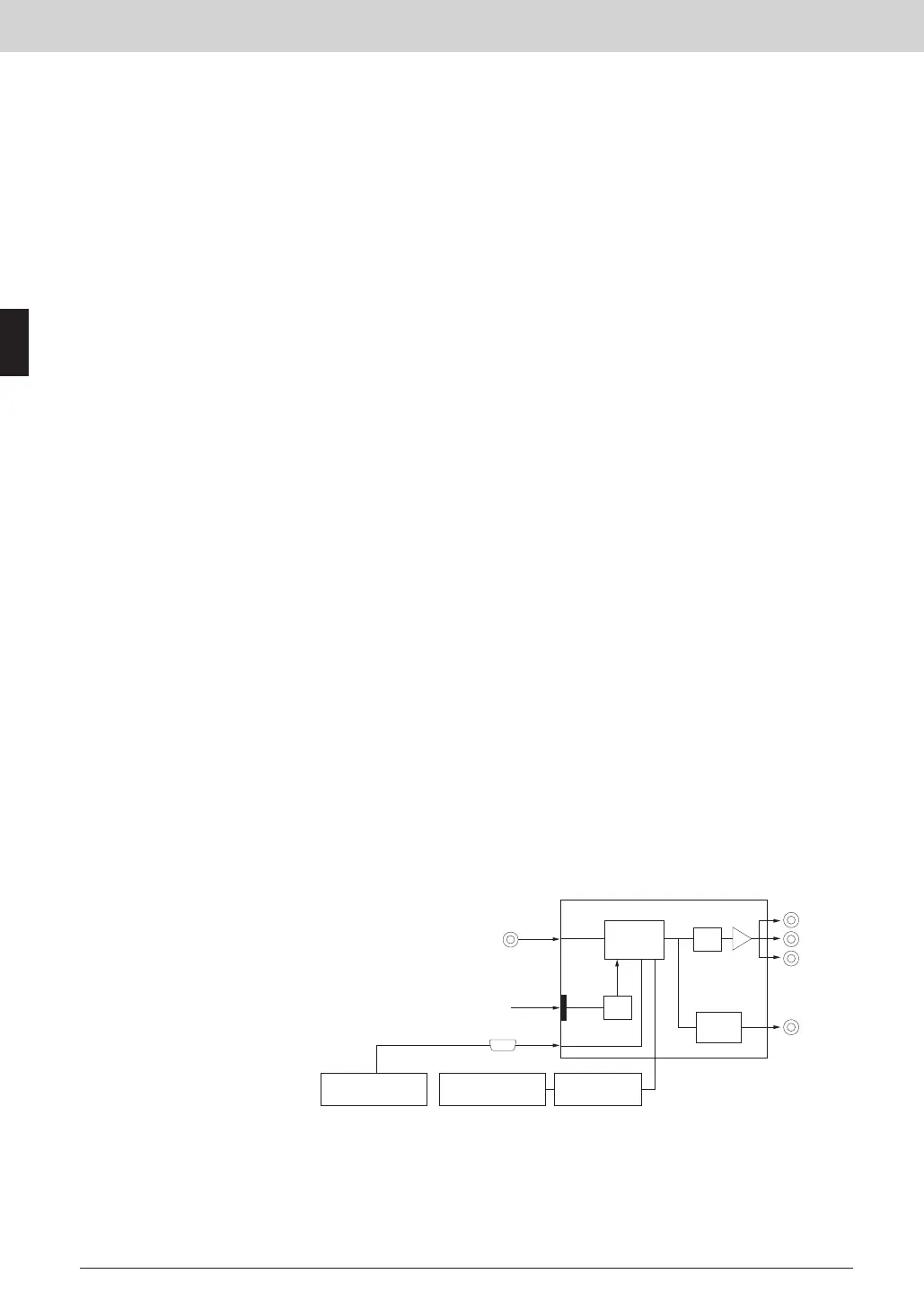

Interface Processor SP Series
Interface Processor SP Series
SDI OUT 1
SDI OUT 2
SDI OUT 3
MONITOR
OUT
HD SDI IN
Control Panel
UCP-8060
CPU Board
HKSP-300
D/C
TG
P/S
ENC
D/A
Video Controller
HKDV-503/900
REF IN
REMOTE IN
RS-422A
From PFV-SP Series
signal processing unit
( )
