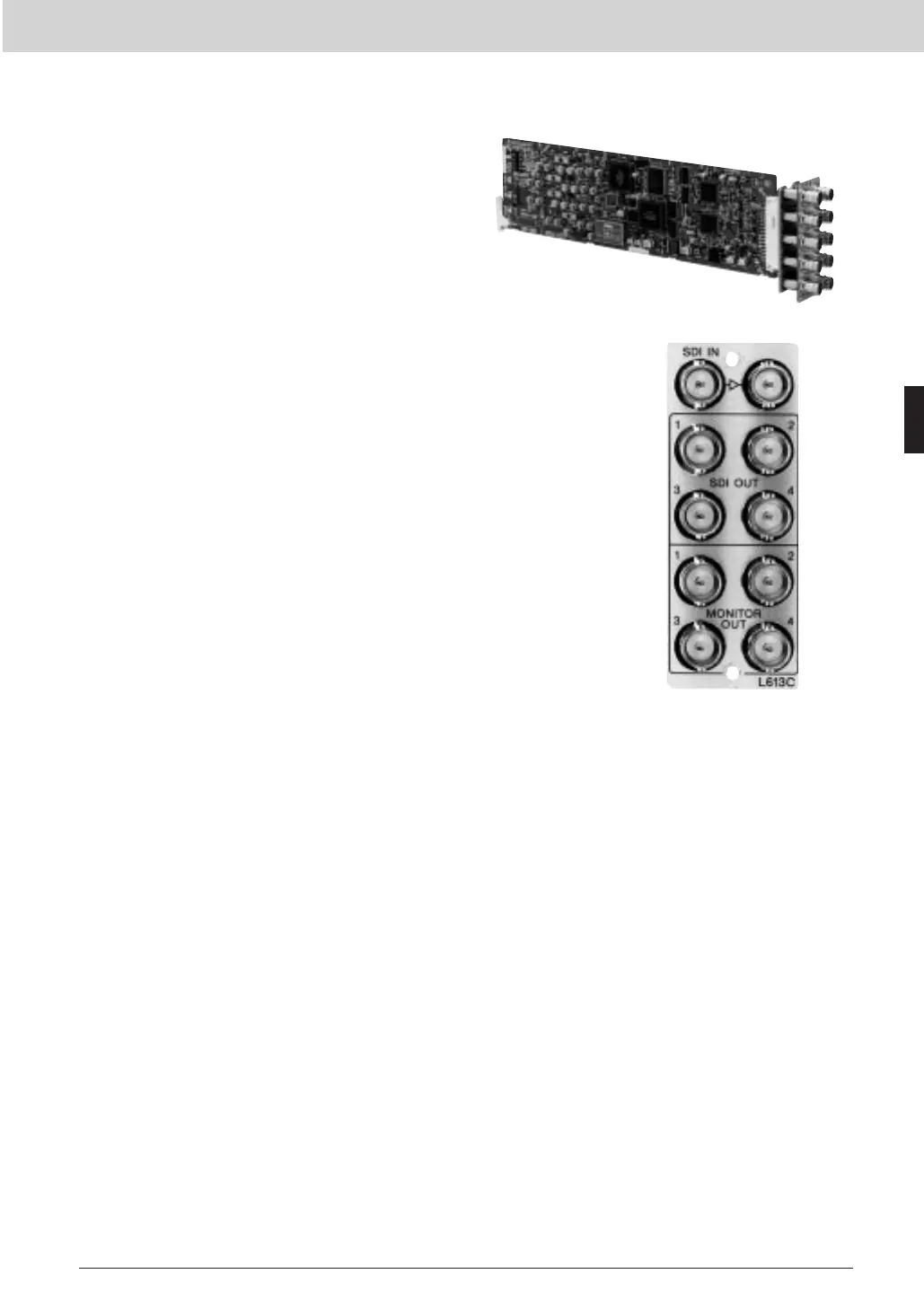

The BKPF-L613C monitoring SDI distribution board
accepts a 525/625 component serial digital video signal
and distributes it to four outputs. An active loop-through
output of the input signal is also provided. A D to A
converter also provides four analog outputs for monitoring
purposes. These monitoring outputs can provide either
four composite signals, or a single composite output plus
a YUV or RGB output. The output cable length can be up
to 200 m (Belden 8281, Fujikura 5C2V or equivalent
cable).
Features
* Distributes a 525/625 component serial digital input
signal to four outputs * Analog video monitoring outputs
(composite analog, Y/U/V or R/G/B component analog) *
Active through output * Supports EDH
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
