Applicable Models
PFV-L10 Interface unit
Supplied Accessories
EX-731 Extension Board (Part
No.A-8322-598-A) (1)
Specifications
Inputs/outputs
Video input:
VIDEO IN connectors (BNC type) (1)
0.286 Vp-p (SYNC, Burst) at 75 Ω
Input return loss:
40 dB or more (at above 5 MHz)
Analog output:
Passive loop-through output connector
(BNC type) (1)
Black burst outputs:
BLACK BURST OUT connectors (BNC
type) (6), conforming to RS-170A
Output level:
SYNC: 0.286 Vp-p 62% at 75 Ω
BURST: 0.286 Vp-p 65% at 75 Ω
SCH:
Less than 65°
Output return loss:
40 dB or more (above 5 MHz)
H phasing:
Approx. -4.5 to + 59.0 µs (all “0”
position)
V phasing:
-4 to +3 H
General
Power requirements:
+ 5 V DC: 0.35 A (supplied from the
PFV-L Series Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
140 g (5 oz)
Connector panel:
100 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual
BLACK BURST OUT 1
BLACK BURST OUT 2
BLACK BURST OUT 3
BLACK BURST OUT 4
BLACK BURST OUT 5
BLACK BURST OUT 6
BLACK
BURST
RE-GEN.
VIDEO IN
NTSC
COMPOSITE
ANALOG
PASSIVE
LOOP-THROUGH
The BKPF-L704 is an analog I/O black burst regenerator
board with a range of NTSC system applications. For
example, it can be used in a mixed analog/digital system,
delaying the sync signal to the analog equipment to
compensate for the longer video delay of the digital
equipment. The BKPF-L704 is an ideal and cost-effective
tool for use in systems that are making the transition from
analog to digital—where both analog and digital
equipment has to co-exist. For this type of application,
the BKPF-L704 exactly meets customer needs.
Features
* Regenerates black burst signals * NTSC composite
analog input with passive loop-through * Six black burst
outputs * Continuously variable delay of -4 H to +3 H * 0
IRE to 44 IRE variable setup * Video input presence lamp
* SCH warning lamp * -5 V warning lamp
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
91
Interface Processor L Series
Interface Processor L Series

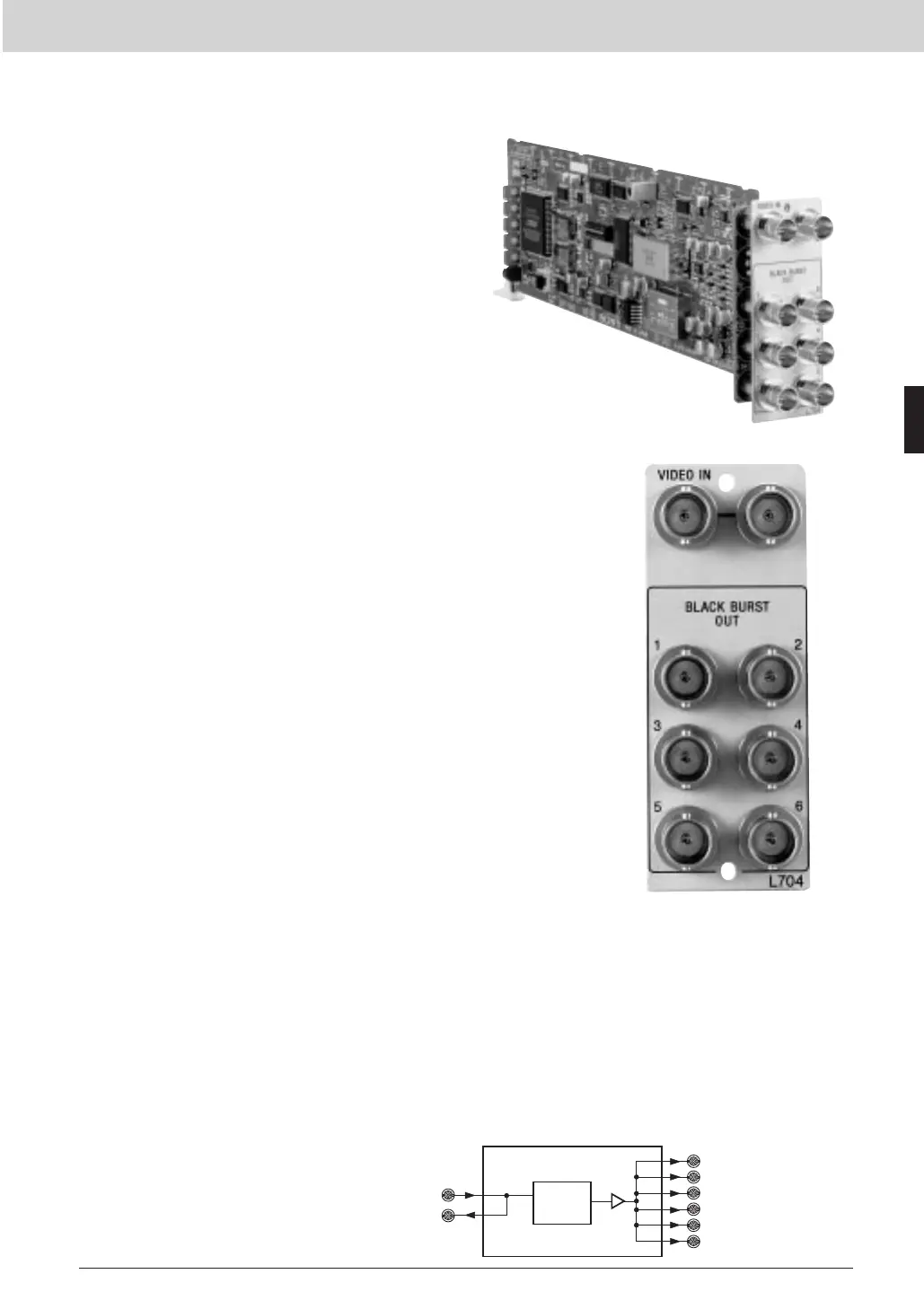

BKPF-L704 Black Burst Regenerator Board
Rear Panel
