Applicable Models
PFV-L10 Interface unit
Supplied Accessories
EX-731 Extension Board (Part
No.A-8322-598-A) (1)
Specifications
Input/output connectors
Audio inputs:
AES/EBU IN connectors (BNC type) (2),
75 Ω,
unbalanced
Audio outputs:
AES/EBU OUT connectors (BNC type)
(8), 75 Ω,
unbalanced
Input characteristics
Standard input level:
1 V p-p
Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz
Input jitter margin:
25 ns or more
Input return loss:
25 dB or more (0.1 MHz to 6 MHz)
Cable length:
1000 m max.
(when using a Belden 8281 coaxial
cable, Fujikura 5C2V or equivalents)
Output characteristics
Output signal level:
1 V p-p 6 10% (Terminated with 75 Ω)
DC offset:
Within 6 50 mV
Waveform rising/falling:
37 6 7 ns
Output jitter:
Within 10 ns
Output return loss:
25 dB or more (0.1 MHz to 6 MHz)
System delay:
Approx. 150 ns (during re-clocking)
Approx. 50 ns (during non re-clocking)
General
Power requirements:
+5 V DC: 0.22 A
(Supplied from the PFV-L Series
Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
Approx. 120 g (4 oz)
Connector panel:
Approx. 120 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual
AES/EBU OUT 1-1
AES/EBU OUT 1-2
AES/EBU OUT 1-3
AES/EBU OUT 1-4
AES/EBU OUT 2-1/1-5
AES/EBU OUT 2-2/1-6
AES/EBU OUT 2-3/1-7
AES/EBU OUT 2-4/1-8
AES/EBU IN 1
AES/EBU IN 2

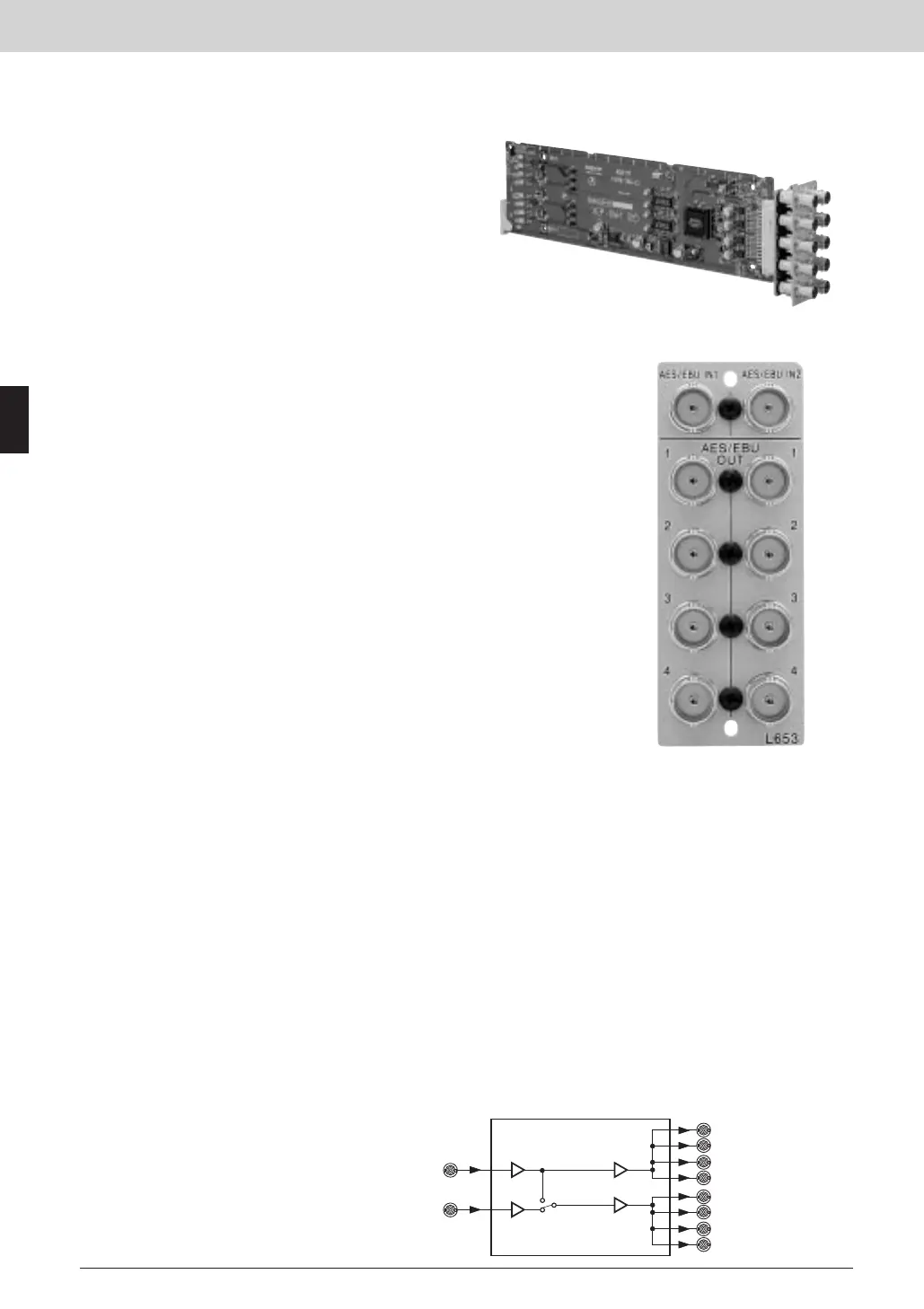

The BKPF-L653 is a AES/EBU distribution board that
operates in single eight-output or dual four-output modes
for 75 Ω AES/EBU signals. Ten BKPF-L653 fit in one 2U
PFV-L10 frame and provide high packing density of up to
80 AES/EBU distribution outputs within 2U rack space.
Features
* Single or dual distribution configuration (selectable with
on-board switch) * Eight distribution outputs from one
AES/EBU stereo pair input * Four distribution outputs from
two AES/EBU stereo pair inputs * 75 Ω unbalanced
AES/EBU inputs and outputs * Automatic cable
equalization * Data re-clocking for jitter reduction
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
88
Interface Processor L Series
Interface Processor L Series
BKPF-L653 AES/EBU Distribution Board
Rear Panel
