Applicable Models
PFV-L10 Interface unit
Supplied Accessories
EX-731 Extension Board (Part No.A-8322-598-A) (1)
Specifications
Inputs/outputs
SDI
SDI input:
SDI IN connector (BNC type) (1)
4:2:2 component serial digital video signal
or 4 fsc NTSC composite digital video
signal conforming to SMPTE259M
(selectable with on-board switch)
Input impedance:
75 Ω
Cable length:
200 m max. (when using a Belden 8281,
Fujikura 5C2V or equivalent coaxial cable)
SDI outputs:
Active-through output connector (BNC
type) (1)
SDI OUT connectors (BNC type) (4)
Serial digital video signal of the same
format as that to the input connector
0.8 Vp-p610%, 75 Ω
Digital audio outputs
Digital audio signal outputs:
AES/EBU OUT connectors (BNC type) (4)
48 kHz/20 bits
AES/EBU digital audio signal, 1
Vp-p610%, 75 Ω, unbalanced
Multiplex system:
Conforms to SMPTE 272M
EDH:
Conforms to SMPTE PR165
General
Power requirements:
+5 V DC: 1.1 A
(Supplied from the PFV-L Series Interface
Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
Approx. 130 g (5 oz)
Connector panel:
Approx. 120 g (4 oz)
Service parts: Extension board (Part No.A-8322-598-A),
Maintenance manual
SDI OUT 1
SDI OUT 2
525/625
COMPONENT
DIGITAL
SDI OUT 3
SDI OUT 4
S/P EDH P/S
SDI IN
ACTIVE LOOP-THROUGH
A/V
DEMUX
AES/EBU OUT 1
AES/EBU OUT 2
AES/EBU OUT 3
AES/EBU OUT 4

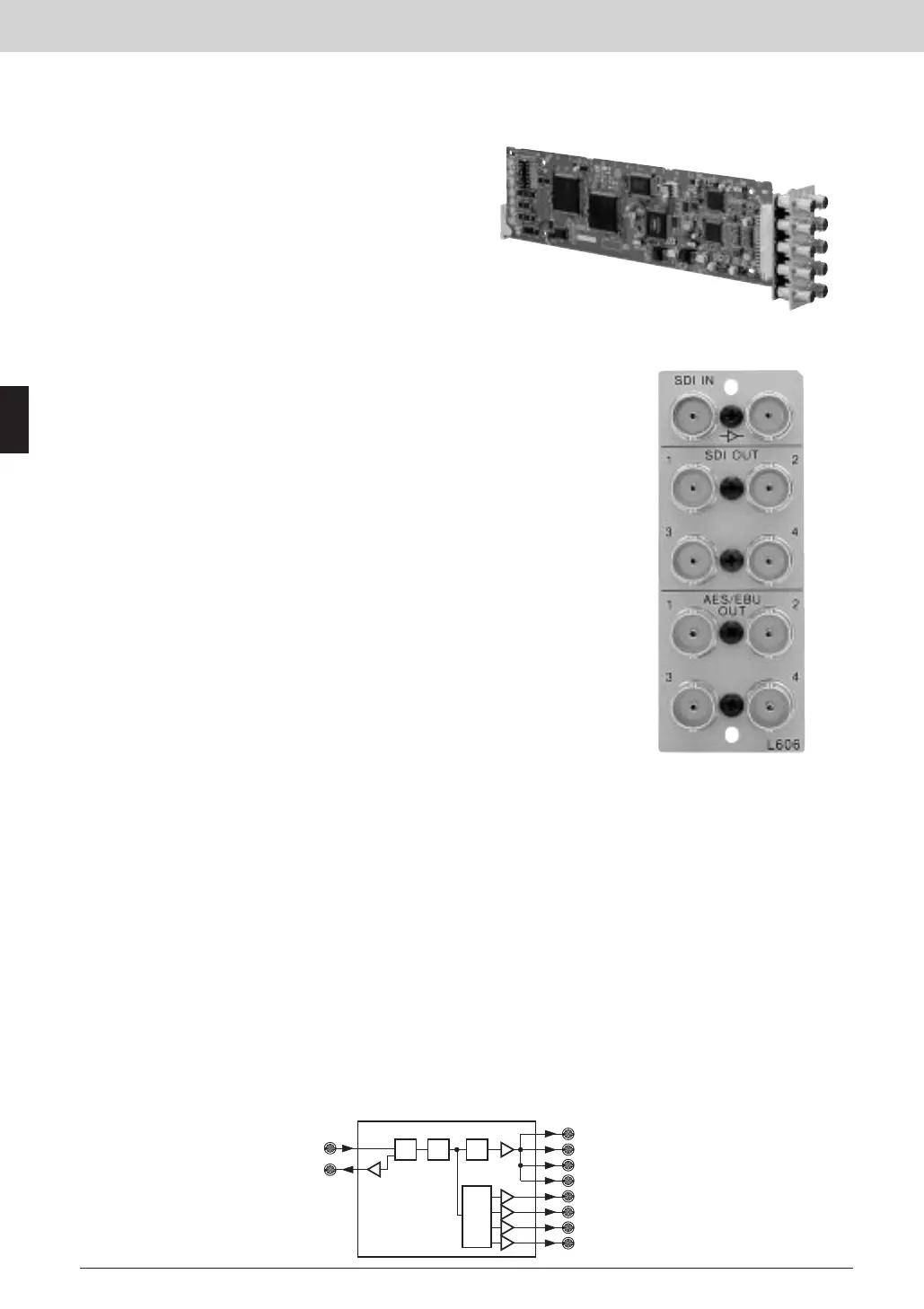

The BKPF-L606 is an audio/video demultiplexer board
that extract AES/EBU format digital audio signals from a
multiplexed 525/625 component serial or NTSC composite
serial digital video signal. A single BKPF-L606 board will
extract two AES/EBU stereo pairs (four audio channels).
Up to eight AES/EBU stereo pairs (16 audio channels)
can be separated from a 525/625 component serial digital
video signal by cascading four BKPF-L606 boards. The
BKPF-L606 distributes an input serial digital video signal
to four outputs and each of two extracted AES/EBU stereo
pairs to four outputs.
Features
* Demultiplexes two AES/EBU stereo from a 525/625
component or NTSC composite serial digital video signal *
Up to 16 individual audio channels demultiplexed by
cascading two boards * One serial digital input with an
active loop-through output * Four serial digital distribution
outputs * Four AES/EBU stereo outputs * Channel swap
capabilities * Audio Group assignment selectable with
on-board switch * EDH monitoring and insertion
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
76
Interface Processor L Series
Interface Processor L Series
BKPF-L606 Audio/Video Demultiplexer Board
Rear Panel
