Applicable Models
PFV-L10 Interface unit
Supplied Accessories
Installation manual (1)
Installaton guide (1)
Slot number label (1 set) (1)
EX-731 extension board (Part No.
A-8322-598-A) (1)
The BKPF-L608C is a 4:2:2 frame/line synchronizer board
used to that synchronizes a 4:2:2 component serial digital
video input signal to an external analog reference. This
10-bit serial 4:2:2 synchronizer features a Freeze control
that is field/frame auto/manual selectable and also
includes phase adjustment. The selection of frame sync or
line sync mode solves timing problem in a component
serial digital environment. Up to eight embedded audio
channels can be passed. Four distribution outputs are
provided.
Features
*High performance frame/line synchronizer — 10-bit 4:2:2
internal processing; Supports SMPTE259M-C; One
equalized input with active loop-through output; Four
distribution outputs; Black burst reference input with
passive loop-through output; GPI input *Two
synchronization modes selectable to synchronize the
input signal to the external reference in steps of single
frame or single line — Frame Synchronization mode and
Line Synchronization mode *H/V phase adjustment
available in Frame Synchronization mode *Freeze
function when an error is detected in the input signal —
Auto/Manual freeze selectable; Field/Frame freeze
selectable *Passes eight embedded audio channels and
other ancillary data in VBI — Automatically mutes
embedded audio when picture frozen *EDH monitoring
and insertion
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
77
Interface Processor L Series
Interface Processor L Series

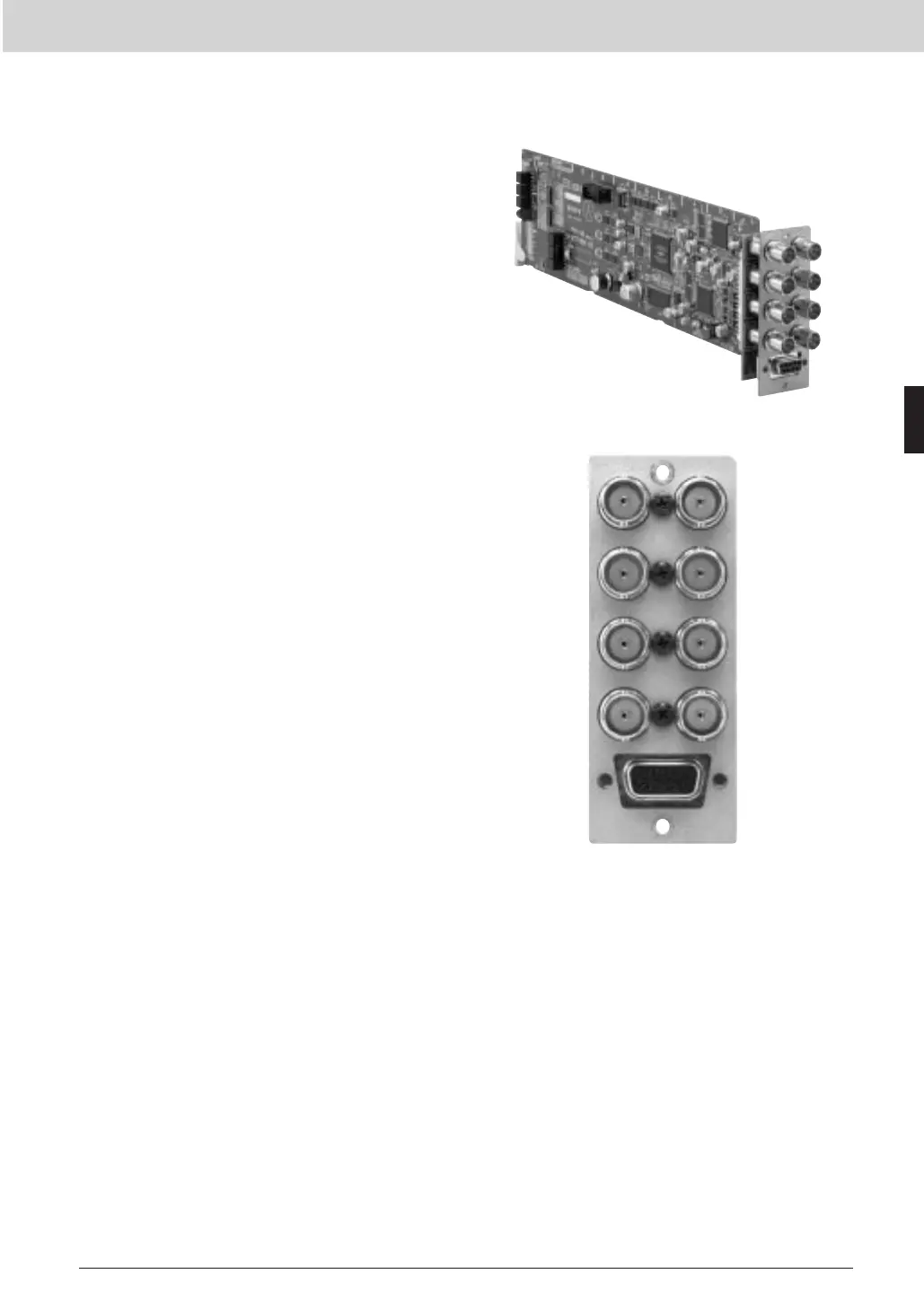

BKPF-L608C 4:2:2 Frame/Line Synchronizer Board
Rear Panel
