Sony MK7807V1 - Analog; Bkpf-L641

Applicable Models
PFV-L10 Interface unit
Supplied Accessories
Installation guide (1)
Installation manual (1)
Slot number label (1 set) (1)

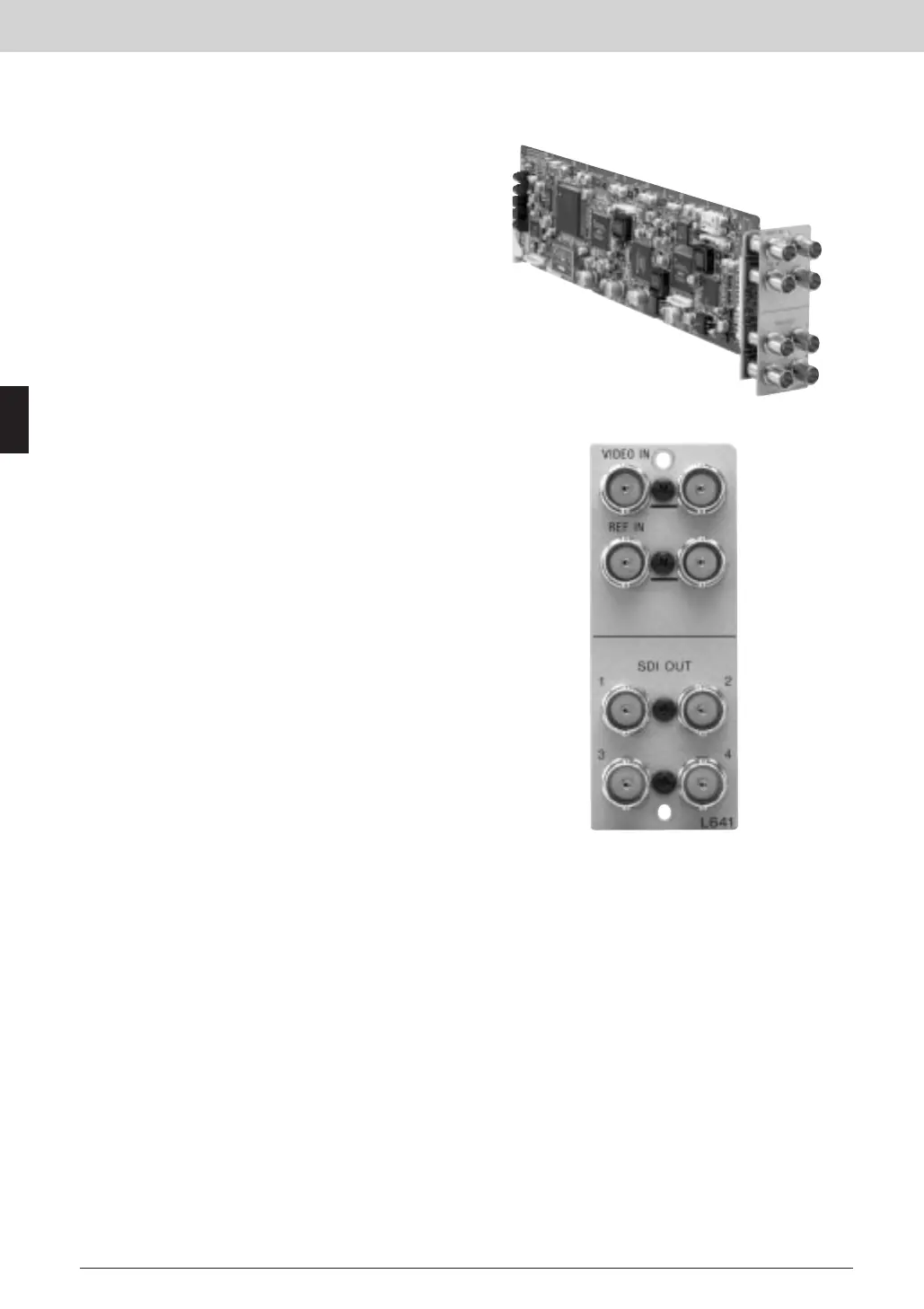

The BKPF-L641 is a decoder board that converts an
NTSC/PAL composite analog input signal into a 4:2:2
component serial digital video output signal. This decoder
board features 10-bit digital internal processing, a
three-line adaptive comb filter and a frame synchronizer.
In conjunction with the BKPF-L642 4:2:2 to NTSC/PAL
encoder board, the color frame ID inserter function avoids
the reverse color framing that may be generated by the
encode/decode chain. It maintains the content of the VBI.
Four distribution outputs are provided. An internal test
signal generator is included for maintenance purposes.
Features
*High performance NTSC/PAL decoder to component SDI
— 10-bit 4:2:2 internal processing; Supports
SMPTE259M-C; One equalized input with passive
loop-through output; Four distribution outputs; Black burst
reference input with passive loop-through output *3-line
adaptive comb filter *NTSC/PAL selectable — Setup
removal on/off selectable for NTSC signal *Built-in frame
synchronizer — On /Off selectable; Auto/Manual freeze
selectable (External reference mode only); H/V phase
adjustment *Color frame ID insertion *Maintains the
content of the VBI *EDH insertion *Built-in test signal
generator
The BKPF-L Series function boards install in the PFV-L Series Interface Units
in any combination with other BKPF-L Series function boards.
84
Interface Processor L Series
Interface Processor L Series
BKPF-L641 NTSC/PAL To 4:2:2 Decoder Board
Rear Panel
