Optional Accessories
RMM-10 Rack Mount Kit
Optional Boards
BKPF-L803 S-BUS Distribution Board
BKPF-L601C Video A to D Converter Board
BKPF-L602C Video D to A Converter Board
BKPF-L603 SDI Distribution Board
BKPF-L605 Audio/Video Multiplexer Board
BKPF-L606 Audio/Video Demultiplexer Board
BKPF-L608C 4:2:2 Frame/Line Synchronizer
Board
BKPF-L611 3-ch SDI Distribution Board
BKPF-L612 2-ch SDI Distribution Board
BKPF-L613C Monitoring SDI Distribution
Board
BKPF-L632 Monitoring Composite Encoder
Board
BKPF-L641 NTSC/PAL To 4:2:2 Decoder
Board
BKPF-L642 4:2:2 To NTSC/PAL Encoder
Board
BKPF-L653 AES/EBU Distribution Board
BKPF-L703A Analog Video Distribution Board
BKPF-L704 Black Burst Regenerator Board
BKPF-L723 Video Delay Distribution Board
BKPF-L751 Audio A to D Converter Board
BKPF-L752 Audio D to A Converter Board
BKPF-L753A Analog Audio Distribution Board
BKPF-L754 Audio Signal Generator Board
Optional Peripherals
BKPF-LPS10 Backup Power Supply Unit
Specifications
General
Power requirements:
AC 100 to 240 V, 50/60 Hz
Power consumption:
Max. 130 VA
Supply capability:
DC +5 V 13 A max. for the installed
boards
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Humidity:
10 to 90% (No condensation)
Dimensions (W x H x D)
440 x 88 x 353.2 mm
(17 3/8 x 3 1/2 x 14 inches)
Mass:
Approx. 6.2 kg (13 lb 10.7 oz)
(Excluding backup supply unit)
Status output port:
D-sub 15-pin (1)
Backup power supply:
Available (BKPF-LPS10)
Maximum number of boards installed:
10 BKPF-L Series boards
Service parts: EX-731 Extension Board (Part No.
A-8322-598-A), Maintenance Manual
The PFV-L10 is a 19-inch rack mountable compact
interface unit with an impressive price/performance ratio.
Only 2U high, it makes small demands on space in
equipment environments. Up to 10 BKPF-L Series
function boards can be accommodated in any
combination. The controls of these boards are all
accessible from the front of the PFV-L10, and all boards
can be hot-swapped. An optional redundant power supply
unit, the BKPF-LPS10, can be installed in the PFV-L10.
This unit is identical to the standard power supply. In the
event of a fault in the standard power supply, the
BKPF-LPS10 automatically functions, ensuring continuous
operation by maintaining power to the installed boards.
Features
* Compact design of 2U height * Accepts up to 10 digital
and analog video/audio function boards in any
combination * Redundant power supply * Hot-swappable
boards * Status output port for system configuration
convenience such as diagnostic system * Fan cooled
operation * Power status LED on the front panel * 100 V
to 240 V AC operation * 19-inch rack mountable
70
Interface Processor L Series
Interface Processor L Series

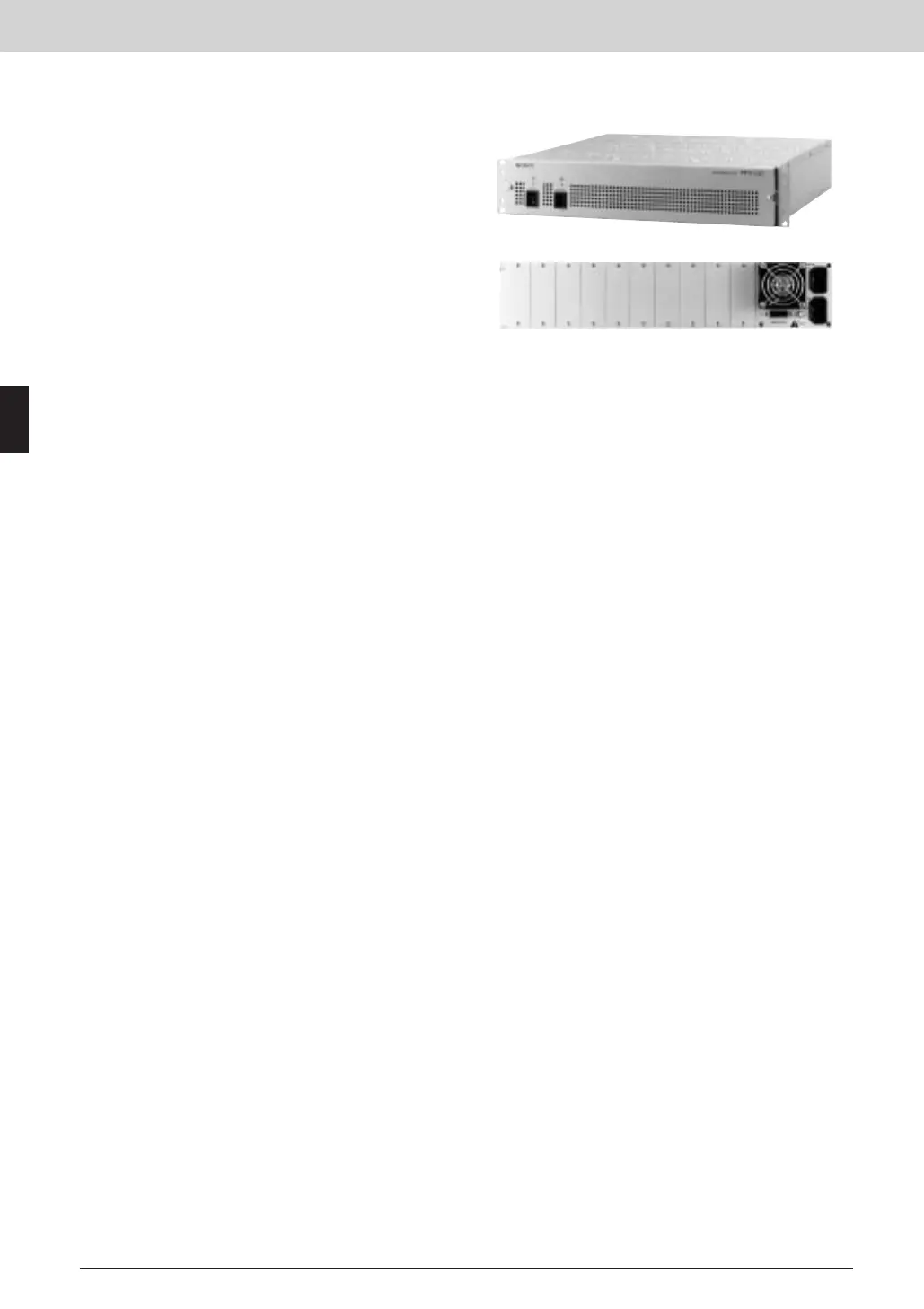

PFV-L10 Interface unit
Rear Panel
