Specifications
Inputs/outputs
Analog audio inputs:
AUDIO IN connectors (Phoenix type
6-pin)
(2; 4 channels -2 stereo pairs)
Input level:
+ 4 dBm (600 Ω/20 kΩ selectable,
balanced)
Reference input:
REF VIDEO/WORD CLOCK IN
connector
(BNC type) (1)
Video input:
0.3 Vp-p (525/29.9 Hz, 625/25 Hz,
1125/60 Hz)
Word sync:
0.5 to 5.0 Vp-p (48 kHz)
Input return loss:
40 dB or more (at 5 MHz, 75 Ω
terminated)
AES/EBU audio outputs:
AES/EBU OUT connectors (BNC type)
(2; 1 for each stereo pair)
1.0 Vp-p 610%, 75 Ω
Output return loss:
25 dB or more (at 0.1 MHz to 6.0 MHz)
Rise time/fall time:
30 to 44 ns
Alignment jitter:
Less than 620 nsp-p
DC offset:
Less than 0 650 mV
Reference output:
Passive loop-through output connector
(selectable to Word Clock output
connector)
(BNC type) (1)
Word sync output:
1.0 Vp-p or 2.8 Vp-p, 48 kHz
Video characteristics
Sampling frequency:
48 kHz
Resolution:
24 bits
Head room:
20 dB (at +4 dBm)
Channel coding:
AES/EBU format
Frequency response:
Within +0.1/-0.2 dB (20 Hz to 20 kHz)
Distortion:
Less than 0.02%
Signal to noise ratio:
103 dB or more
Crosstalk:
Less than -90 dB (at under 15 kHz)
CMRR (Common Mode Rejection Ratio):
More than 80 dB (at 60 Hz)
Phase difference between channels:
Less than 4° (at 1 kHz)
Encoding delay:
Approx. 0.9 ms
General
Power requirements:
+ 5 V DC: 1.1 A (supplied from the
PFV-L Series Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(3 1/8 x 10 5/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
160 g (6 oz)
Connector panel:
110 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual

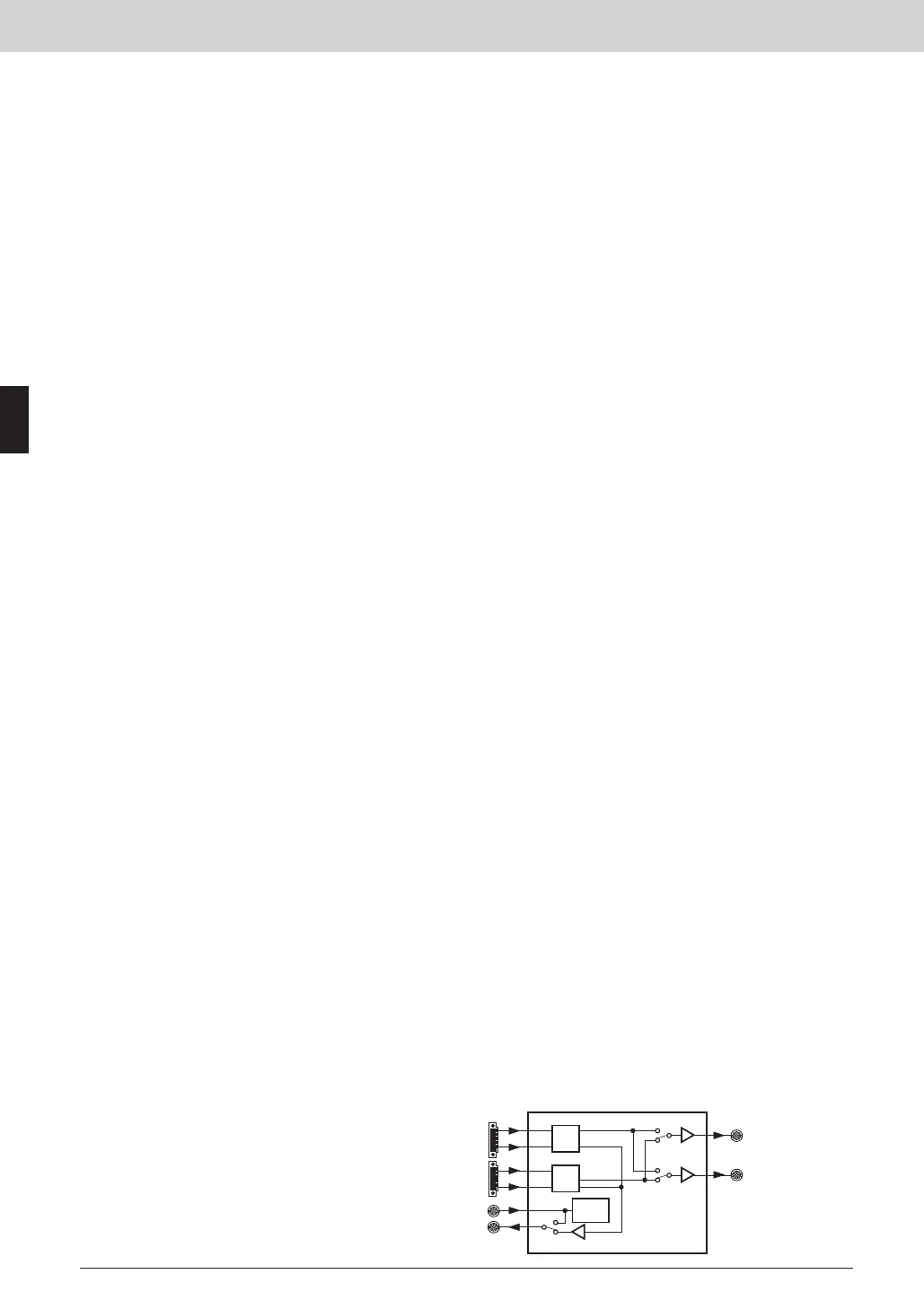

AES/EBU OUT 1
AES/EBU OUT 2
AUDIO IN CH-1
AUDIO IN CH-2
AUDIO IN CH-3
AUDIO IN CH-4
REF IN
CLOCK
GEN.
LOOP-THROUGH
or WORD CLOCK OUT
ADC
ADC
94
Interface Processor L Series
Interface Processor L Series
