Sony MK7807V1 - Analog

Specifications
Inputs/outputs
Serial digital input:
SDI IN connector (BNC type) (1)
0.8 Vp-p, 75 Ω
Serial digital outputs:
Active through-out connector (BNC
type) (1)
0.8 Vp-p
610%, 75 Ω
SDI OUT connectors (BNC type) (4)
0.8 Vp-p610%, 75 Ω
Reference video input:
REF IN connector (BNC type) (1)
Reference video output:
Loop-through output connector (BNC
type) (1)
Analog NTSC outputs:
ANALOG OUT connectors (BNC type)
(2)
1.0 Vp-p63%, 75 Ω
System delay (INPUT mode):
Approx. 8.5 µs (with DIGITAL H-PHASE
“00”)
Approx. 6.5 µs (with ANALOG H-PHASE
“00”)
Output phase adjustable range
(Comparing the REF signal phase with
the output signal phase)
(REF/frame synchronization ON mode)
Serial digital output:
068.8 µs (in 70 ns steps)
Analog NTSC output:
068.8 µs (in 17.5 ns steps)
(REF/frame synchronization OFF mode)
Serial digital output:
Approx. 21 to 37 µs (in 70 ns steps)
Analog NTSC output:
Approx. 19 to 35 µs (in 17.5 ns steps)
Data transmission
Channel coding:
Scrambled NRZI
Transmission bit rate:
Input: 270 Mb/s
Output: 143 Mb/s
Modulation:
0.8 Vp-p
Cable length:
200 m max. (When using a Belden
8281, Fujikura 5C2V or equivalent
coaxial cable)
Digital input/output return loss:
-15 dB or less (5 to 270 MHz)
Signal format
Input:
525-line component serial digital
signal conforming to SMPTE259M-C
(ITU-R BT.601/BT.656), 270 Mb/s
Output:
NTSC composite serial digital signal
conforming to SMPTE259M-A, 143
Mb/s
Video characteristics
Band width:
6 MHz
K factor:
Less than 1%
Signal-to-noise ratio:
More than 60 dB (5 MHz LPF)
DG:
Less than 1%
DP:
Less than 1°
General
Power requirements:
+5 V DC: 1800 mA, -5 V DC: 700 mA
(Supplied from the PFV-D/PFV-HD
Series Interface Unit)
Power consumption:
12.5 W
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x W):
195 x 310 mm
(7 3/4 x 12 1/4 inches)
Connector panel (H x W):
195 x 25 mm
(7 3/4 x 1 inches)
Mass
Board:
Approx. 600 g (1 lb 5 oz)
Connector panel:
Approx. 200 g (7 oz)

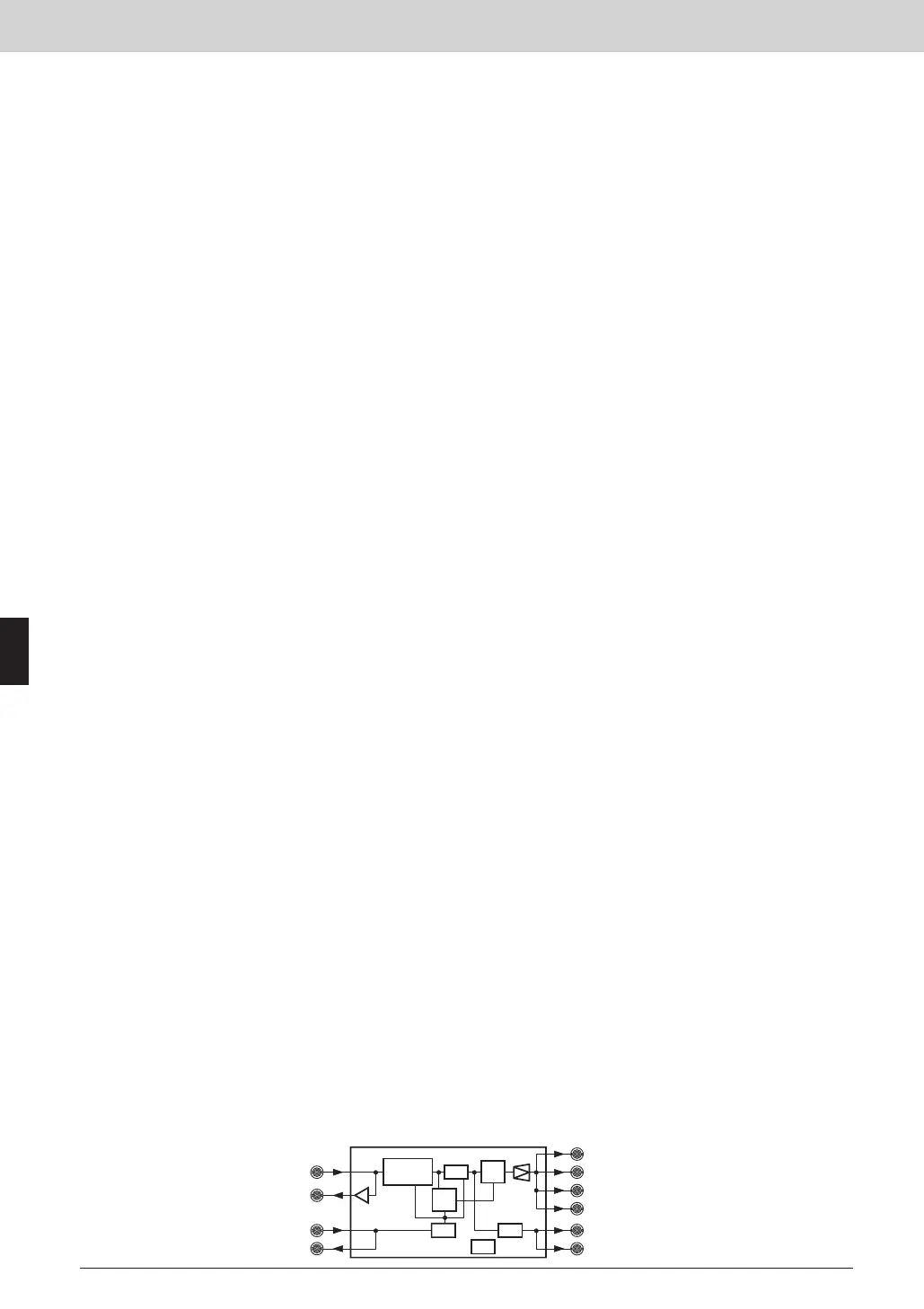

ENC
CLK
ISR
D/A
EDH
ADD
EDH
DET
FRAME
SYNC
525-LINE COMPONENT
SERIAL DIGITAL VIDEO
ACTIVE LOOP-THROUGH
REF IN
PASSVE LOOP-THROUGH
NTSC COMPOSITE SERIAL
DIGITAL VIDEO
NTSC COMPOSITE ANALOG VIDEO
122
