Supplied Accessories
AC power cord (for U.S.A and Canada) (1)
AC power cord (for Europe and U.K.) (1)
AC plug adaptor (1)
75 Ω terminators (4)
T bridge (1)
Plug holder B (black) (1)
Plug holder B (gray) (1)
Operation manual (1)
Maintenance manual (1)
Installation manual (1)
Optional Boards
BKDS-RS1690 Backup Control Board
Optional Peripherals
BKS-R1608 Universal Control Unit
BKS-R1617 Multi-Display Control Unit
BKS-R1618 Universal Control Unit
BKS-R3216 Multi-BUS Control Unit
BKS-R3219 Universal Control Unit
BKS-R3220 X-Y Control Unit
BKS-R3240A X-Y Control Unit
BKS-R3242A X-Y Control Unit
BKS-R3248A X-Y Control Unit
BKDS-RS1620 Cascade Set
BKDS-RS1691 Backup Power Supply
RCC-R cables Cascade Connection Cable
RCC-G cables 9-pin/9-pin Cable
RMM-30 Rack Mount Rail
Specifications
Inputs/outputs
Time code inputs:
XLR 3-pin, female connectors (32)
Time code outputs:
XLR 4-pin, male connectors (32)
Reference video signal inputs:
REF IN connectors (BNC type) (2), high
impedance, analog video, one is for
loop-through connection
Cascade inputs:
CASCADE IN (BKDS-RS1620) 1.27 mm
pitch connectors (68-pin type) (7)
Cascade outputs:
CASCADE OUT (BKDS-RS1620) 1.27
mm pitch connectors (68-pin type) (7)
AC power inputs:
3-pin AC connectors (2)
Remote control connectors
REMOTE 1:
S-BUS (BNC type) (4), 47 kΩ input
Data transfer method: BI-PHASE SPACE
Data transfer rate: 312.5 kb/s
Cable length: 500 m max. (When using
a Belden 8281, Fujikura 5C2V or
equivalent coaxial cable)
Checksum: HDLC CRC-CCIT
x 16 + x 12 + x 5 + 1
REMOTE 2:
Complying with RS-422A signal
standards
D-sub 9-pin (1), 100 Ω/10 kΩ
Data transfer rate: 38.4 kb/s
REMOTE 3:
Complying with RS-232C standard for
terminal correction
D-sub 25-pin (1)
9600 b/s, DTR control
8-bit, No parity, No check, 1 stop bit
General
Power requirements:
100 to 240 V AC, 50/60 Hz
1.3 to 0.8 A
Power consumption:
70 W
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Dimensions (W x H x D)
482 x 354.4 x 450 mm
(19 x 14 x 17 3/4 inches)
(Excluding projecting parts)
Mass:
Approx. 25 kg (55 lb 2 oz)
The DVS-TC3232 is a 32 inputs and 32 outputs routing
switcher for 32 time code signals. Router control is by
S-BUS and RS-422A. S-BUS is a highly sophisticated
system, providing communication and tally management
with BKS-R Series routing switcher control units, Sony
DVS Series video switchers and so on. S-BUS also
interfaces with third-party equipment. Among the many
features that S-BUS supports are multi-level working,
signal breakaway, phantom operation of crosspoints and
tie-line management. Multiple DVS-TC3232 units, fitted
with cascade kits, can be connected to form a single
matrix as large as 256 x 256.An RS-232C port provides a
PC interface. Router data is maintained in memory by a
24-hour battery backup. The DVS-TC3232 mounts in a
standard 19-inch rack and is 8U high.
Features
* 32 x 32 switching matrix for time code signals *
Expandable to provide a maximum matrix size of 256 x
256 * S-BUS and RS-422A control * Backup power supply
and CPU options
20
Routing Switchers
Routing Switchers

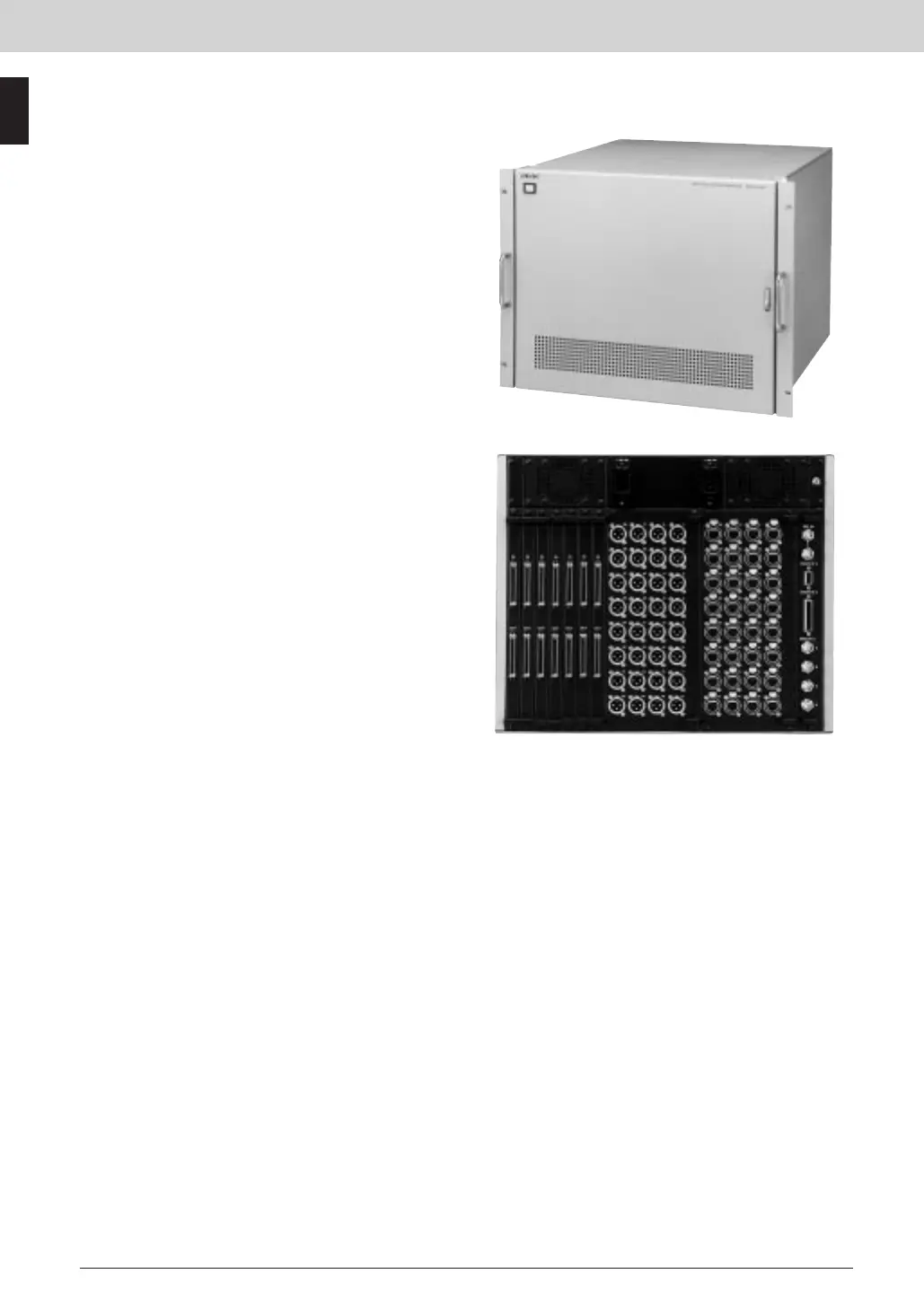

DVS-TC3232 Time Code Routing Switcher
Rear Panel
