Applicable Models
PFV-D10 Digital Video Interface Unit
PFV-D300 Digital Video Interface Unit
PFV-D50A Digital Video Interface Unit
PFV-HD50A HD Digital Video Interface Unit
Supplied Accessories
Operation manual (1)
Installation manual (1)
Slot number label (1)
Routing switcher data backup software
BZR-20 (1)
Optional Software
BZR-IF310 S-BUS SUB-NET Controller
Software
Specifications
General
Power requirements:
+5 V DC (supplied from the
PFV-D/PFV-HD Series Interface Unit)
Current consumption:
700 mA
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90 %
Dimensions (H x W)
Board:
195 x 310 mm
(7 3/4 x 12 1/4 inches)
Connector panel:
195 x 25 mm
(7 3/4 x 1 inches)
Mass
Board:
Approx. 520 g (1 lb 2 oz)
Connector panel:
Approx. 160 g (6 oz)
The BKPF-R70A routing switcher controller board
functions as the primary station of Sony S-BUS remote
control system. It has the same control functionality as
the CPU board for the Sony digital routing switchers when
this is used as the primary station in a system, but with
improved overall system and tally response. It can also
function as a sub-net controller with BZR-IF310 software
installed. In a system that includes BKPF-300 Series
boards, the BKPF-R70A improves the functionality and
mapping of these boards.
Features
* Provides primary station control or sub-net control in an
S-BUS system * Fully compliant with expanded S-BUS
systems * 1024 x 1024 x 8 levels or 1024 x 512 x 16
levels * supports 32 types of signal names and 2048
description names * Dual control, S-BUS and RS-422 *
System redundancy using two BKPF-R70A boards *
Routing switcher back-up software supplied * Supports
ISR
The BKPF Series function boards install in both the PFV-D and the PFV-HD
Series Interface Units. In a PFV-HD Series Interface Unit, they can be
installed together with the HKPF Series function boards.
34
Routing Switchers
Routing Switchers

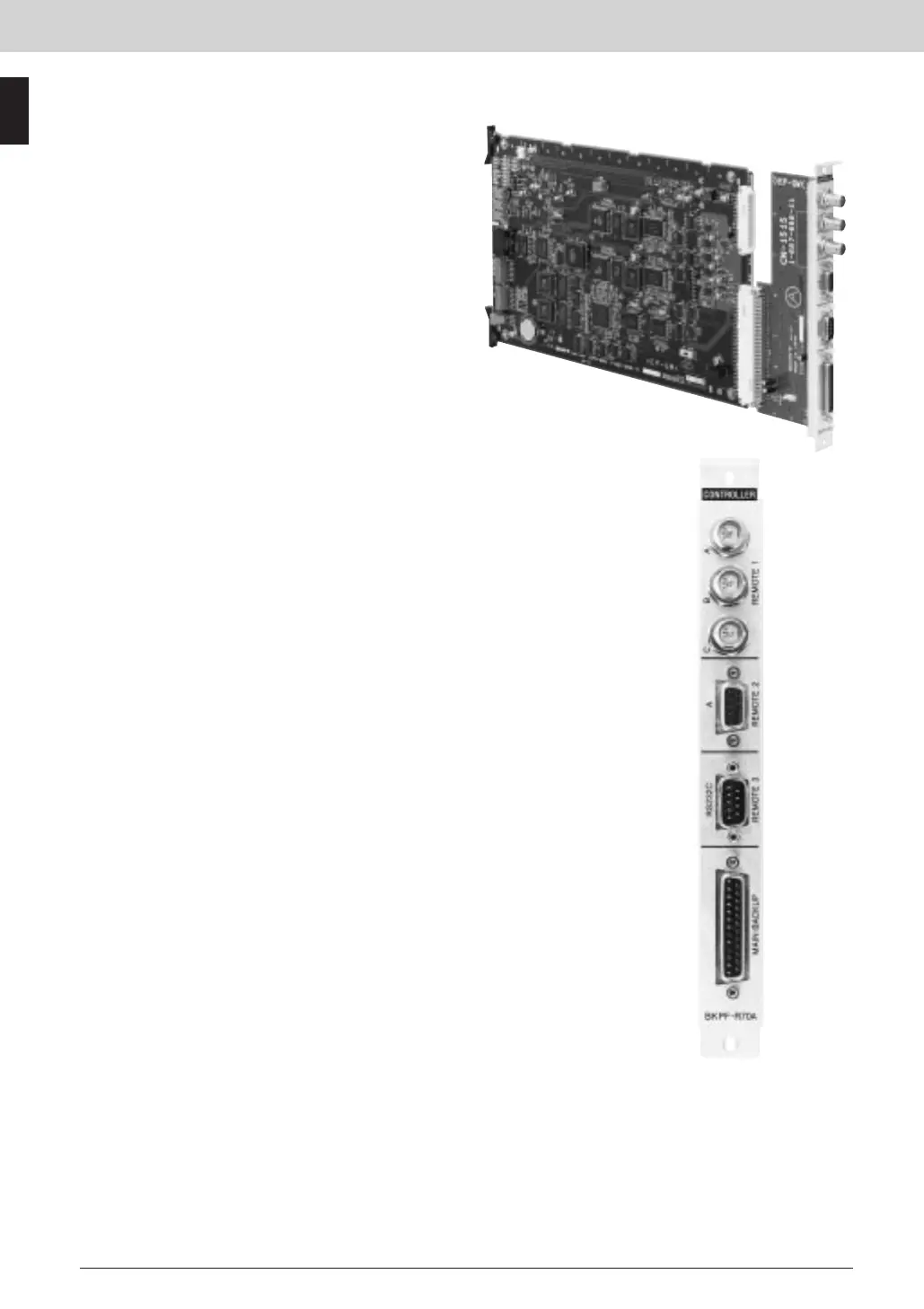

BKPF-R70A Routing Switcher Controller Board
Rear Panel
